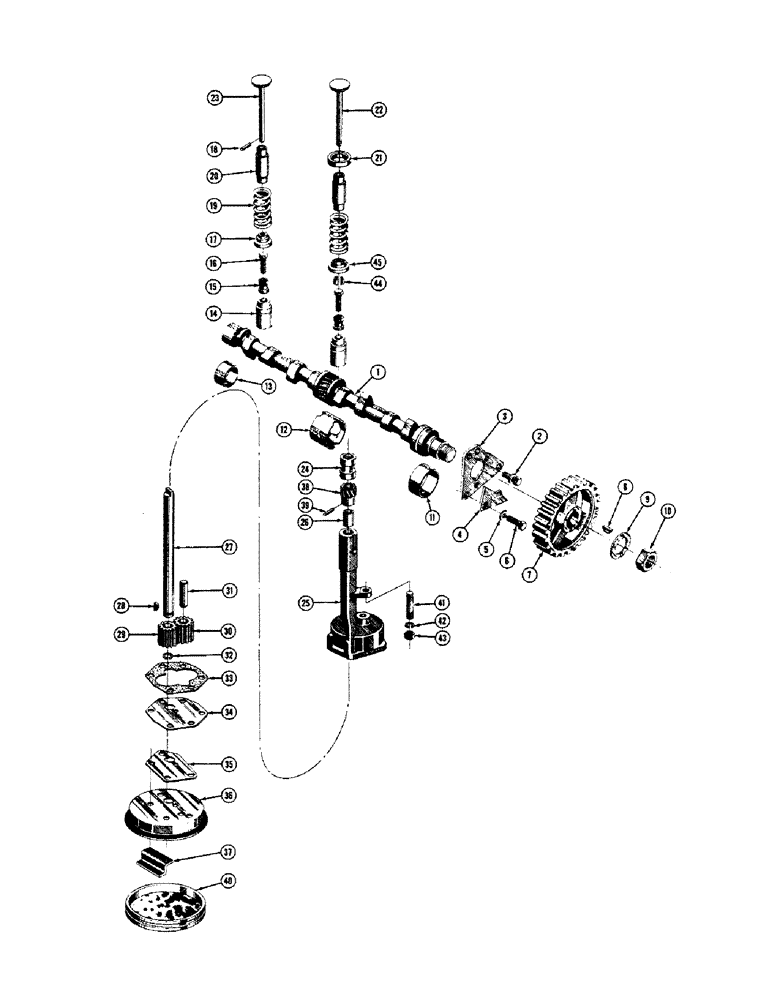

Запчасти Case 520 (014) - CAMSHAFT, VALVES, PUSH RODS, AND GUIDES, GAS (01) - ENGINE

1

10021

SPRING

CAMSHAFT

1шт.

2

10264

SCREW AND LOCKWASHER - 3/8 - 16NC x 7/8

2шт.

3

10262

PLATE - thrust, camshaft

1шт.

4

A10283

HOSE

PLATE - oiler, timing gear

1шт.

5

92-7

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

7

10281

HOSE

GEAR - camshaft timing

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

9

10285

BUSHING

LOCK - camshaft nut

1шт.

10

10284

NUT - hex. (3/4 - 16NF)

1шт.

R2073

KIT - camshaft bushings

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - camshaft front

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - camshaft center

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - camshaft rear

1шт.

10341

TAPPET

ASB'Y. - valve

8шт.

14

NSS

NOT SOLD SEPARAT

TAPPET - valve

1шт.

15

10345

NUT - lock

1шт.

16

10344

SCREW - tappet adjusting

1шт.

5988

X

KIT - seat and lock

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - valve spring

4шт.

18

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer

4шт.

R3298

KIT - valve spring

4шт.

19

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

5992

BEARING

KIT - valve guide

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - valve

8шт.

21

VT3387

INSERT - exhaust valve

4шт.

22

34595

SPINDLE

VALVE - exhaust (Roto)

4шт.

5984

KIT

- intake valve

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake

4шт.

24

10065

O-RING

BUSHING - oil pump drive shaft

1шт.

R10855

PUMP ASB'Y. - oil (Complete)

1шт.

10382

SEALING RING

BODY ASB'Y. - oil pump

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

26

10384

SEALING RING COLLAR

BUSHING - oil pump body

1шт.

27

BER10385

SEALING RING COLLAR

SHAFT - oil pump drive

1шт.

28

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

29

NLS

NO LONGER SERVICED

GEAR - oil pump driver

1шт.

30

10391

GEAR - oil pump driven (Idler)

1шт.

31

10392

STUD - idler

1шт.

32

NLS

NO LONGER SERVICED

SNAP RING

1шт.

33

10395

GASKET - oil pump cover

1шт.

34

10394

COVER ASB'Y. - oil pump

1шт.

35

10397

BUSHING

GASKET - cover to oil pump strainer frame

1шт.

36

10396

STOP

FRAME - oil pump strainer

1шт.

37

10398

SPACER - strainer screen

1шт.

38

10043

GEAR - oil pump drive

1шт.

39

11577

NUT

PIN - 3/16 dia. x 7/8

1шт.

40

10399

SCREEN ASB'Y. - oil strainer

1шт.

11061

SCREW AND LOCKWASHER - 1/4 - 20 NC x 5/8 (Not shown)

6шт.

41

10083

STUD - 3/8 - 16NC x 1-5/8

1шт.

42

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

30438

X

NUT - hex. (3/8 - 16NC)

1шт.

44

34597

HUB

LOCK - roto valve

8шт.

45

34596

CLAMSHELL BUCKET

CAP - roto valve

4шт.

11578

CLIP

WASHER - plain (3/8) (Between bearing cap and oil pump) (Not shown)

1шт.
