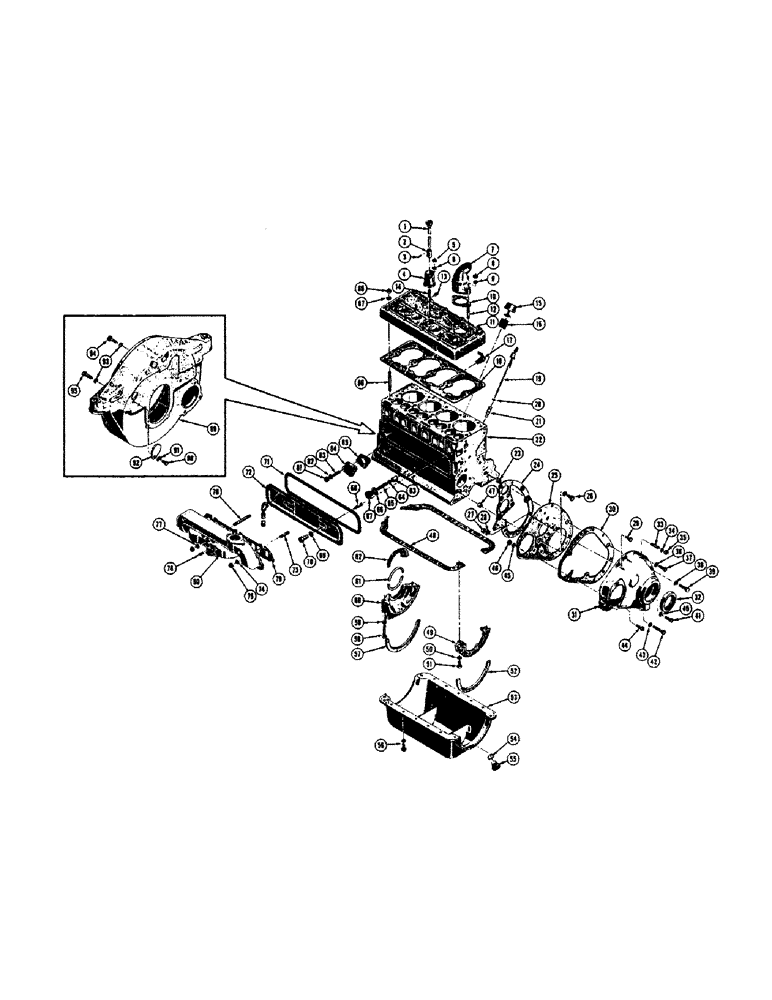

Запчасти Case 520 (008) - ENGINE BLOCK AND RELATED PARTS, GAS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
10572
SHAFT - distributor drive
1шт.
2
10573
FITTING
COUPLING - distributor drive shaft
1шт.
3
10574
PIPE FITTING
PIN - drive coupling
1шт.
4
10571
FITTING
ADAPTOR - distributor
1шт.
5
30438
X
NUT - hex. (3/8 - 16NC)
1шт.
6
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
7
10550
ASSEMBLY
ELBOW - outlet, cylinder water
1шт.
8
47861
KNOB
NUT - hex. (5/16 - 18 NC)
2шт.
9
92-6
LOCK WASHER,3/8"
WASHER - lock (5/16)
2шт.
10
10553
GASKET
- outlet, Serial Range: elbow-head
1шт.
11
34026
HEAD - cylinder
1шт.
12
10082
STUD - 5/16 - 18NC x 2-1/8
2шт.
13
221-24
DRAIN PLUG,Sq Soc, 1/2"-14 NPTF
PLUG - pipe, 1/2 NPT ctsk. sq. hd.
1шт.
14
G11204
STUD
- 3/8 - 16 NC x 1-3/8
1шт.
15
10406
CAP ASSEMBLY - oil filler
1шт.
16
221-260
HYD CONNECTOR
NIPPLE - pipe, oil filler
1шт.
17
11073
X
DRAINCOCK - cylinder water
1шт.
18
34017
CABLE
GASKET - cylinder, Serial Range: head-crankcase
1шт.
19
10411
SEALING RING
ROD ASB'Y. - oil gauge
1шт.
20
10416
FELT - oil gauge rod cover
1шт.
21
10412
RING
SUPPORT - oil gauge rod
1шт.
22
34838
VALVE
CYLINDER AND CRANKCASE ASB'Y. - (Stripped)
1шт.
24
10315
GASKET - end, Serial Range: plate-crankcase
1шт.
25
10311
PLATE - crankcase front end
1шт.
26
10314
LINING
HHCS AND LOCKWASHER - 5/16 - 18NC x 3/4
1шт.
27
47863
SPRING CUP
NUT - hex. (7/16 - 14 NC)
1шт.
28
92-7
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
31
32647
COVER ASB'Y. - gear
1шт.
32
10972
HOSE,Female, 1.5-2.5 mm2
SEAL - oil, gear cover
1шт.
33
VT4501
STUD - 3/8 - 16NC x 1-11/16, gear, Serial Range: cover-crankcase
2шт.
34
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
35
30438
X
NUT - hex. (3/8 - 16 NC)
2шт.
36
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
37
10295
BUSHING
HHCS - 3/8 - 16NC x 1-1/8
1шт.
38
92-7
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
39
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
Hex, 7/16"-14 x 1 1/2, G5
1шт.
40
10298
COPPER WASHER
- copper
1шт.
41
10295
BUSHING
HHCS - 3/8 - 16NC x 1-1/8
1шт.
42
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- 3/8-16 NC x 2
1шт.
43
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
44
10295
BUSHING
HHCS - 3/8 - 16NC x 1-1/8
1шт.
45
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
46
30438
X
NUT - hex. (3/8 - 16NC)
1шт.
47
10312
DOWEL - end, Serial Range: plate-crankcase
1шт.
48
10362
NUT
GASKET - oil pan
2шт.
49
10101
PIN
BLOCK - filler, front
1шт.
50
48525
X
WASHER - lock, Shakeproof (5/16)
2шт.
51
10107
SHCS - 5/16 - 18NC x 7/8, front filler block
2шт.
52
10015
GASKET - front filler block
1шт.
53
32678
PAN, - oil
1шт.
54
VT4520
X
GASKET - oil pan drain plug
1шт.
55
VT4521
X
PLUG - oil pan drain
1шт.
56
10314
LINING
HHCS AND LOCKWASHER - 5/16 - 18NC x 3/4
14шт.
57
10015
GASKET - rear filler block
1шт.
58
10106
HHCS - 5/16 - 18 NC x 2-5/8
2шт.
59
48525
X
WASHER - lock, Shakeproof (5/16)
2шт.
60
10105
PIN
BLOCK - filler, rear
1шт.
61
86631586
SPACER,9.8mm ID x 12.7mm OD x 16.76mm L
SEAL - filler block, rear
2шт.
62
10109
GUARD - oil, crankshaft rear bearing
1шт.
63
10421
VALVE - oil pressure relief
1шт.
64
11057
WASHER - plain, relief valve adjusting
1шт.
65
VT3354
X
SPRING - oil pressure relief valve
1шт.
66
10424
HARNESS
GASKET - oil pressure relief valve plug (Copper asbestos)
1шт.
67
10423
THUMB SCREW
PLUG - oil pressure relief valve
1шт.
68
10073
ELBOW
STUD - 1/4 - 20NC x 1-3/8, valve chamber cover
2шт.
69
10356
ELBOW
GASKET - valve chamber stud (Copper asbestos)
2шт.
70
11058
NUT - (1/4 - 20NC), valve chamber cover stud
2шт.
71
10357
BRACKET
GASKET - valve chamber cover
1шт.
73
VT4501
STUD - 3/8 - 16NC x 1-11/16, intake and exhaust manifold
6шт.
74
10096
NUT
WASHER - plain (13/32), manifold stud
2шт.
75
10452
SEALING RING
NUT - hex. (3/8 - 16NC) (Brass), manifold studs
7шт.
76
11159
STUD - 3/8 - 16NC x 5-1/2, center, intake and exhaust manifold
1шт.
77
VT4504
WASHER
- plain (13/32) center stud
1шт.
78
221-11
PLUG,Sq Hd, 1/8"-27
- pipe, 1/8 NPT ext. sq. hd.
1шт.
79
VT3394
X
GASKET - intake and exhaust manifold
1шт.
80
33371
MANIFOLD - intake and exhaust
1шт.
81
47861
KNOB
NUT - hex. (5/16 - 18NC) (Shipping only)
2шт.
82
48465
BUSHING
WASHER - heavy sec. lock (5/16) (Shipping only)
2шт.
83
31173
STUD - 5/16 - 18NC x 1-1/2 (Shipping only)
2шт.
84
10121
COVER - fuel pump hole (Shipping only)
1шт.
85
10123
GASKET - fuel pump hole cover (Shipping only)
1шт.
86
10078
STUD - 7/16 - 20NF x 3-15/32
15шт.
87
VT3340
X
WASHER - plain (29/64)
15шт.
88
10142
LARGE PLATE
NUT - hex. (7/16 - 20NF)
15шт.
89
31120
HOUSING - flywheel
1шт.
90
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
1шт.
91
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
93
92-7
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
5шт.
94
10038
HHCS - 7/16 - 14NC x 1-1/8
3шт.
95
10037
SCREW - dowel (7/16 - 14NC x 1-7/16)
2шт.
10134
FELT - flywheel timing hole cover, parts not shown
1шт.
11580
STUD - 3/8 - 16NC x 2-3/4 (Manifold to crankcase), parts not shown
2шт.
11101
GEAR
CRAB - (Manifold to crankcase), parts not shown
1шт.
10095
PIN
PLATE - manifold end cover, parts not shown
1шт.
10067
OIL SEAL
GASKET - cover plate, parts not shown
2шт.
30329
STUD - 3/8 - 16NC x 1-5/8 (Manifold cover plate), parts not shown
2шт.
10452
SEALING RING
NUT - hex. (3/8 - 16NC) (Manifold cover plate stud), parts not shown
2шт.
11068
SCREW AND LOCKWASHER - 3/8 - 16NC x 1-1/8 (Gear cover), parts not shown
1шт.
10565
ELEC CONNECTOR,4 Pin
FELT - rear bearing oil guard, parts not shown
1шт.
221-11
PLUG,Sq Hd, 1/8"-27
- pipe, 1/8 NPT ext. sq. hd. (Oil pressure gauge hole in crankcase), parts not shown
2шт.
VT3395
X
PLUG - pipe, special, 1/4 NPT (Crankcase oil header), parts not shown
1шт.
V22152
CAP
PLUG - Hubbard, 1-1/2 dia. (Camshaft bushing rear), parts not shown
1шт.
10617
ELBOW
PLUG - Hubbard, 1-1/8 dia. (Cylinder core hole in crankcase rear), parts not shown
1шт.
10618
TEE
PLUG - Hubbard, 1-3/8 dia. (Cylinder core hole in crankcase side), parts not shown
2шт.
221-12
PLUG,Sq Hd, 1/4"-18
- pipe, 1/4 NPT ext. sq. hd. (Cylinder water jacket drain), parts not shown
1шт.
Выбрано товаров: 111
