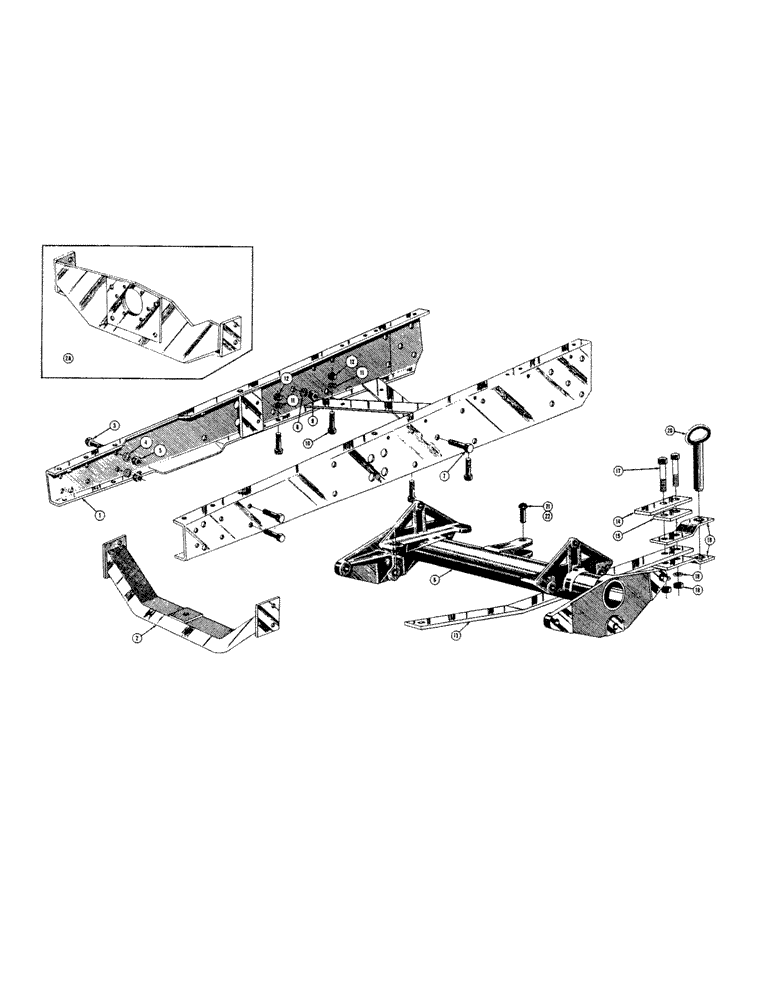

Запчасти Case 520 (006) - ENGINE FRAME, TORQUE TUBE, DRAWBAR, AND ENGINE SUPPORTS (01) - ENGINE

1

31059

FRAME - engine (Gas model only)

1шт.

1

31358

FRAME - engine (Diesel model only)

1шт.

2

30470

SUPPORT - engine, front (Gas model only)

1шт.

2a

33130

SUPPORT - engine, front (Diesel model only)

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

6

30815

SEAL

TUBE - torque

1шт.

7

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

10

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

13049

HOUSING

DRAWBAR - complete

1шт.

13

13039

BUSHING

DRAWBAR - industrial

1шт.

14

NLS

NO LONGER SERVICED

STRAP - hookover

1шт.

15

NLS

NO LONGER SERVICED

SPACER - hookover

1шт.

16

13043

BUSHING

HITCH - drawbar

2шт.

17

14-1272

BOLT,Hex, 3/4" - 16 x 4-1/2", Gr 5

HHCS - 3/4 - 16 NF x 4-1/2

2шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

19

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF)

2шт.

20

13073

AXLE PIN

PIN - hitch

1шт.

21

13044

NUT

PIN- mounting, drawbar to torque tube

1шт.

22

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.
