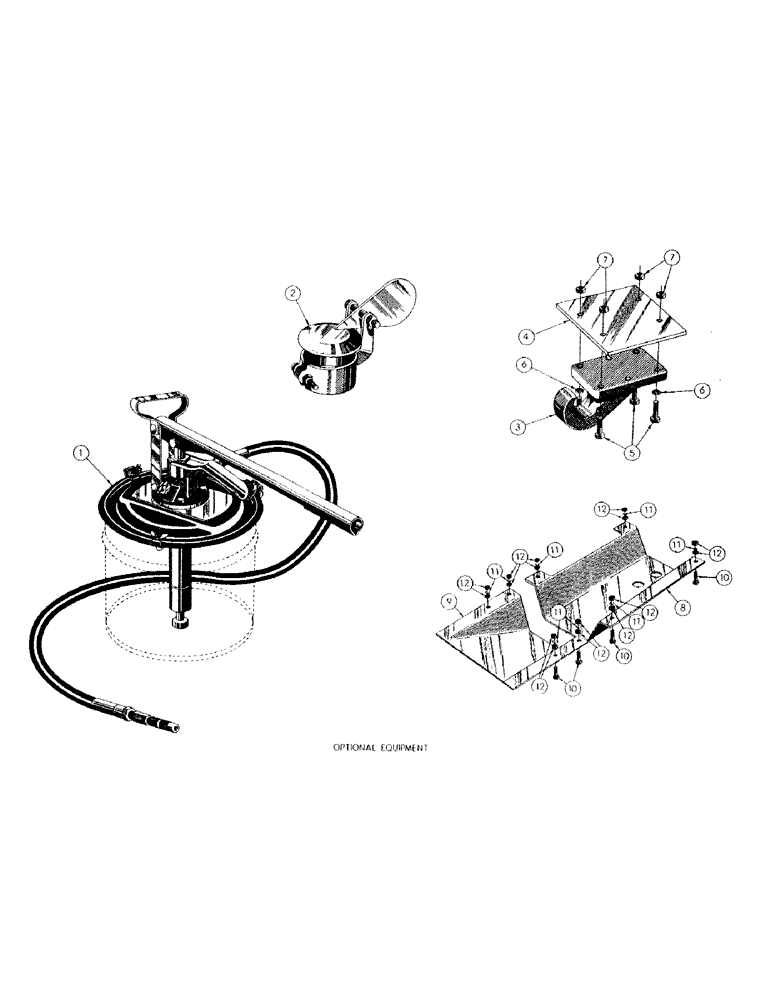

Запчасти Case 300 (077) - OPTIONAL EQUIPMENT INST. (18) - ATTACHMENT ACCESSORIES

1

13758

BRACKET

GREASE GUN - (High pressure)

1шт.

2

10943

HOSE

RAIN CAP - exhaust pipe

1шт.

PULL HOOK INST. (Inc. ref. #3 thru 7) (GROUP NO. 5525)

1шт.

3

10940

HOOK

PULL HOOK

1шт.

4

32123

LEVER

DOUBLER PLATE

1шт.

5

45707

FLANGE

HHCS - 1/2-20 NF x 1-1/4 (10940 mt'g)

4шт.

6

48448

X

LOCKWASHER - med. sec.

4шт.

7

48104

PISTON

HEX NUT - reg. S.F.

4шт.

CRANKCASE GUARD INST. (Inc. ref. #8 thru 12) (GROUP NO. 5709)

1шт.

8

31294

TOGGLE

CRANKCASE GUARD - rear

1шт.

9

31903

CRANKCASE GUARD - front

1шт.

10

45708

X

HHCS - 1/2-20 NF x 1-1/2 (31294 & 31903)

8шт.

11

48448

X

LOCKWASHER - med. sec.

8шт.

12

48104

PISTON

HEX NUT - reg. S.F.

16шт.
