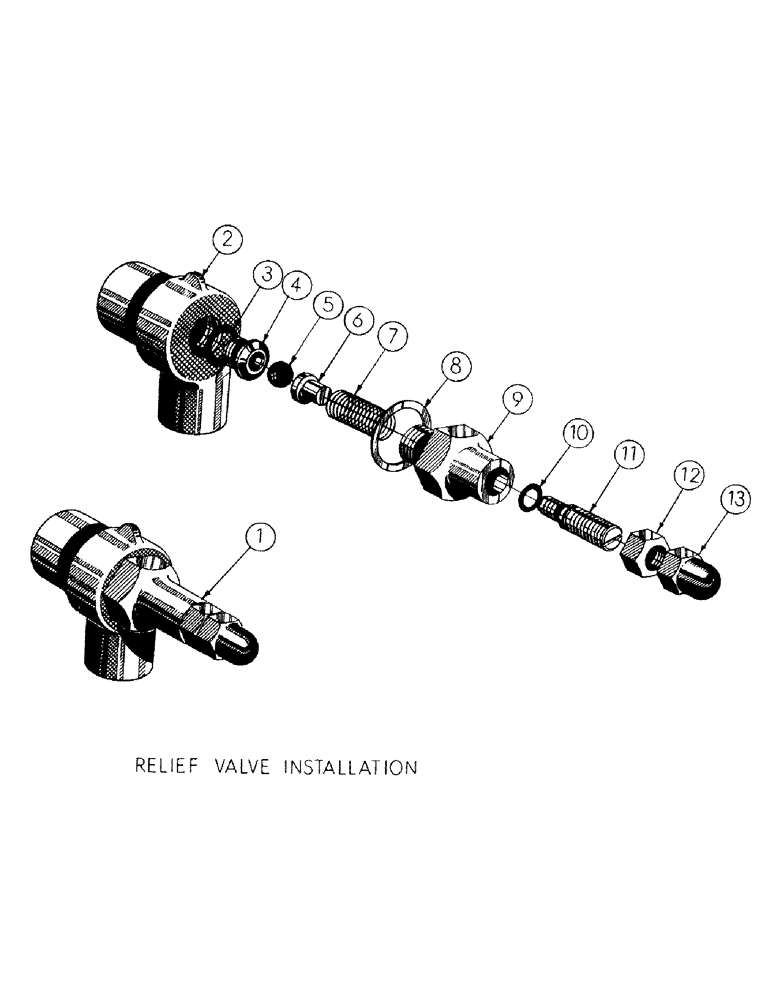

Запчасти Case 300 (139) - RELIEF VALVE INST. (07) - HYDRAULIC SYSTEM

1

RELIEVE VALVE ASS'Y - (Inc. ref. #2 thru 13) (GROUP NO. 33959)

1шт.

2

RESERVED

1шт.

3

34118

X

"O" RING SEAL

1шт.

4

34119

SEAT, VALVE

VALVE SEAT

1шт.

5

34117

X

BALL - relief valve

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

34114

VALVE, PRESSURE RELI

SPRING

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

HEX BODY CAP

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O" RING SEAL

1шт.

11

34110

ADJUSTMENT SCREW

ADJUSTING SCREW

1шт.

12

34111

X

HEX JAM NUT

1шт.

13

34109

ACORN NUT

1шт.
