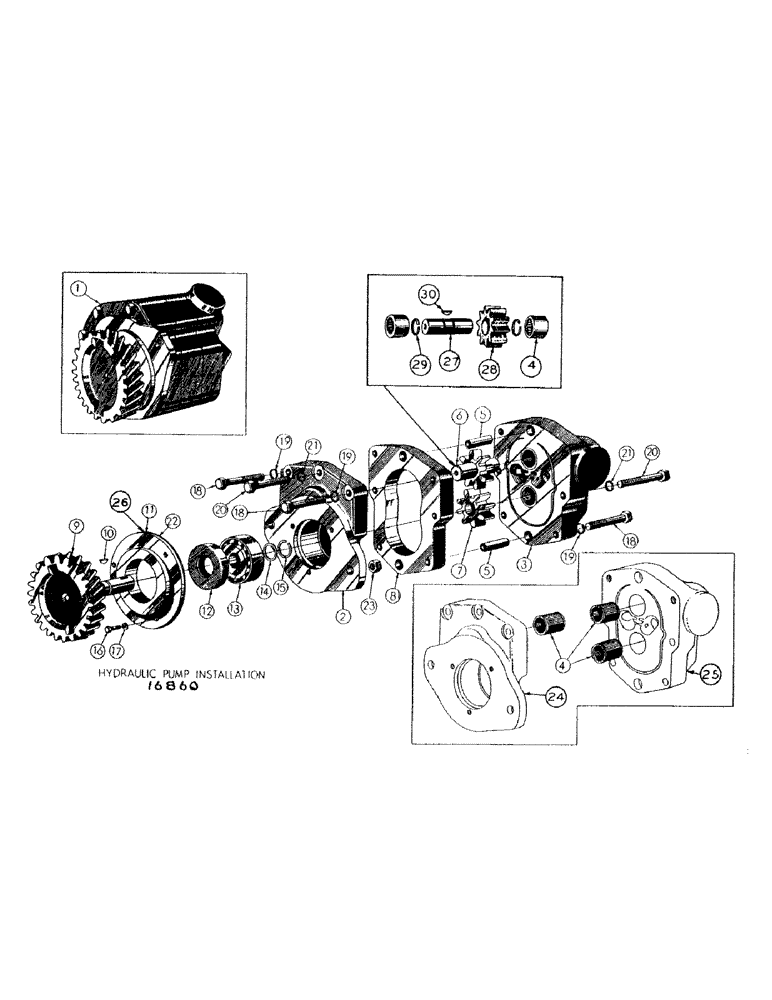

Запчасти Case 300 (137) - 16860 HYDRAULIC PUMP (WEBSTER 3-1CS1-1R), HYDRAULIC PUMP INSTALLATION (07) - HYDRAULIC SYSTEM

1

HYDRAULIC PUMP ASSY. - (Inc. ref. #1 thru 22) (GROUP NO. 16860)

1шт.

2

33184

BODY

ASSY. - (Inc. ref. #4)

1шт.

3

33187

PUMP COVER ASSY. (Inc. #4)

1шт.

4

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

3шт.

5

NLS

NO LONGER SERVICED

DOWEL PIN

2шт.

6

38382

IDLER GEAR ASSY.

1шт.

7

38383

DRIVE GEAR

1шт.

8

38436

BEARING ASSY,1.012" ID x 1.625" OD x 1"

GEAR PLATE

1шт.

9

14258

CABLE ASSY.

GEAR - shaft assy.

1шт.

10

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

11

14220

PILOT PLATE ASSY. - (Inc. ref. #12-22)

1шт.

12

33192

OIL SEAL

1шт.

13

14219

BALL BEARING

1шт.

14

14218

WASHER

WASHER

1шт.

15

14217

RING

RETAINING RING

1шт.

16

14224

HEX. HEAD SEMS FASTENER

3шт.

17

48523

SHIM,.036" Thk

LOCKWASHER - Shakeproof internal

3шт.

18

14202

HHCS - 5/16-18 NC x 1-3/4 Hex, 1/2"-13 x 3 1/4", G5

6шт.

19

14203

SCREW

LOCKWASHER

6шт.

20

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

21

92-4

LOCK WASHER,1/4"

2шт.

22

14221

GASKET

1шт.

23

47802

BUTTON

HEX. NUT - reg. S.F. (16860 mtg.)

1шт.

24

33185

X

BODY - less needle bearing

1шт.

25

33188

COVER - pump, less needle bearing

1шт.

26

14222

PILOT PLATE - less oil seal

1шт.

27

34451

SHAFT - idler

1шт.

28

38383

GEAR - idler

1шт.

29

14217

RING

RETAINING RING

2шт.

30

34455

HOOK

WOODRUFF KEY

1шт.
