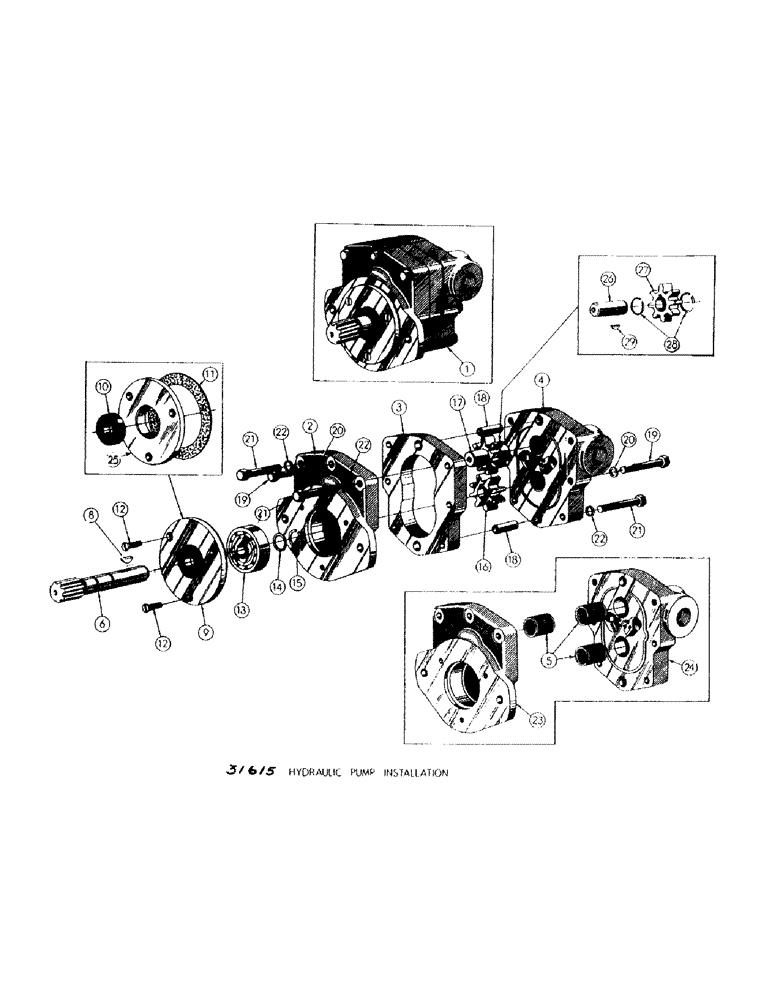

Запчасти Case 300 (135) - 31615 HYDRAULIC PUMP (WEBSTER 3-HCS-4L), HYDRAULIC PUMP INSTALLATION (07) - HYDRAULIC SYSTEM

1

HYDRAULIC PUMP ASS'Y - (Inc. ref. #2 thru 29) (GROUP NO. 31615)

1шт.

2

35694

BOLT

BODY ASS'Y - (Inc. ref. #5 & 23)

1шт.

3

34452

GEAR PLATE

1шт.

4

35695

PLATE

COVER ASSY. - (Inc. ref. #5 & 24)

1шт.

5

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

3шт.

6

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

7

RESERVED

1шт.

8

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

9

35737

LEVER

PILOT PLATE ASSY. - (Inc. ref. #10, 11 & 25)

1шт.

10

34449

OIL SEAL

1шт.

11

14221

GASKET

1шт.

12

34447

X

FLAT HEAD MACHINE SCREW

3шт.

13

14219

BALL BEARING

1шт.

14

34456

X

RETAINING RING

1шт.

15

34456

X

RETAINING RING

1шт.

16

14257

GEAR-SET

DRIVE GEAR

1шт.

17

IDLER GEAR & SHAFT ASSY. - (Inc. ref. #26 thru 29)

1шт.

18

NLS

NO LONGER SERVICED

DOWEL PIN

2шт.

19

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

20

92-4

LOCK WASHER,1/4"

2шт.

21

14202

HHCS Hex, 1/2"-13 x 3 1/4", G5

6шт.

22

14203

SCREW

LOCKWASHER

6шт.

23

34446

BODY - pump

1шт.

24

34454

NUT

COVER - pump

1шт.

25

34448

ROD

PILOT PLATE

1шт.

26

34451

SHAFT - idler

1шт.

27

34453

HEATER PLUG

GEAR - idler

1шт.

28

14217

RING

RETAINING RING

2шт.

29

34455

HOOK

WOODRUFF KEY

1шт.
