Запчасти Case 300 (131) - HYDRAULIC VALVE INST. (07) - HYDRAULIC SYSTEM

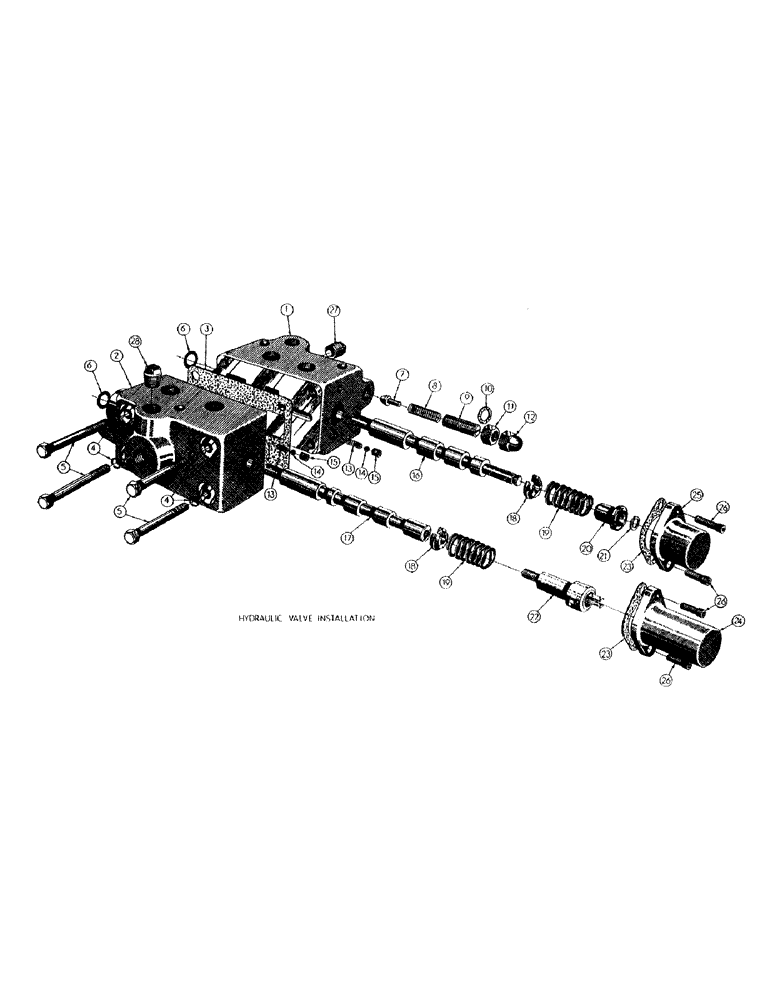

Схема запчастей Case 300 - (131) - HYDRAULIC VALVE INST. (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

HYDRAULIC VALVE ASS'Y - (Inc. ref. #1 thru 28) (GROUP NO. 16400)

1шт.

1

16409

BALL STUD

1/2 TANDEM VALVE HOUSING - inlet

1шт.

2

16408

1/2 TANDEM VALVE HOUSING - outlet

1шт.

3

16947

GASKET - tandem valve housing

1шт.

4

48448

X

LOCKWASHER - med. sec.

4шт.

5

45415

SPARE PART

HHCS - 1/2-13 NC x 3-1/4, Serial Range: (16408-16409)

4шт.

6

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING SEAL

2шт.

7

16403

SPRING

POPPET - relief valve

1шт.

8

NLS

NO LONGER SERVICED

SPRING - relief valve

1шт.

9

NLS

NO LONGER SERVICED

ADJUSTING SCREW - relief valve

1шт.

10

16219

GASKET

- relief valve

1шт.

11

48105

HEX NUT - (9/16-18 NF)

1шт.

12

48355

CAP NUT - (9/16-18 NF)

1шт.

13

16212

HOSE

SPRING - check valve

2шт.

14

211-1005

BALL,3.96mm OD, Gr 24

BALL - check valve

2шт.

15

16214

HOSE

SEAT - check valve

2шт.

16

16410

SPOOL - D.A.

1шт.

17

16203

HOSE

SPOOL - float

1шт.

18

16205

SPRING RETAINER

2шт.

19

16204

VALVE

SPRING - spool return

2шт.

20

16411

HOSE

SPRING GUIDE

1шт.

21

16413

HOSE

- spring guide

1шт.

22

16206

SPRING GUIDE ASS'Y

1шт.

23

16211

HOSE

GASKET - cap

2шт.

24

16210

HOSE

VALVE CAP - long

1шт.

25

NLS

NO LONGER SERVICED

VALVE CAP - short

1шт.

26

46900

PULLEY

FILLISTER HD. CAP SCREW - 5/16-18 NC x 3/4

4шт.

27

41823

PIPE PLUG - ext. sq. hd. - 1/2 NP

1шт.

28

41824

ROLLER

PIPE PLUG - ext. sq. hd. - 3/4 NP

1шт.

Выбрано товаров: 29
