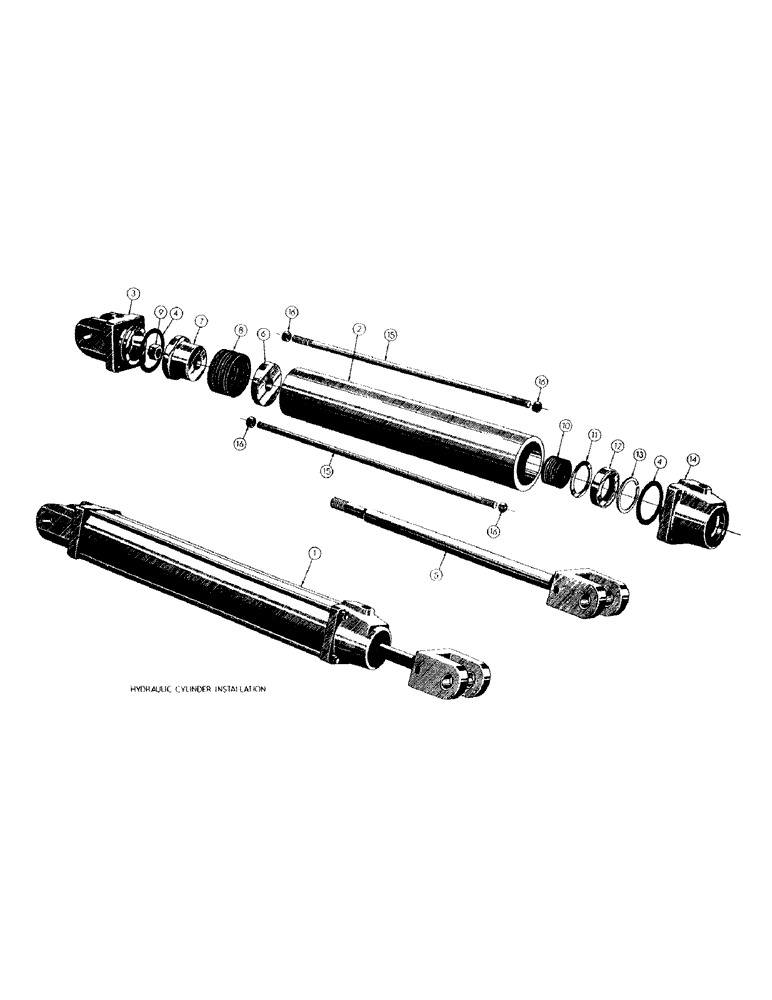

Запчасти Case 300 (129) - THREE - POINT HYDRAULIC CYLINDER INST. (07) - HYDRAULIC SYSTEM

1

HYDRAULIC CYLINDER ASS'Y - (Inc. ref. #2 thru 16) (GROUP NO. 17590)

1шт.

2

17593

TUBE - hydraulic cylinder

1шт.

3

17591

CYLINDER END

1шт.

4

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING SEAL

2шт.

5

17599

END YOKE & PISTON ROD ASS'Y

1шт.

6

30630

CARTRIDGE

RETAINER WASHER

1шт.

7

30631

X

SPACER BLOCK

1шт.

8

17598

PACKING

PISTON PACKING

1шт.

9

344800A1

CRANK

LOCKNUT - (3/4-16 NF), Gauge, Pressure

1шт.

10

17597

PACKING

ROD PACKING

1шт.

11

36259

WASHER

PACKING WASHER

1шт.

12

17603

WIPER SEAL

WIPER SEAL

1шт.

13

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

14

17592

END CAP - cylinder

1шт.

15

17594

TIE ROD

4шт.

16

17606

X

HEX NUT - (3/8-24 NF)

8шт.
