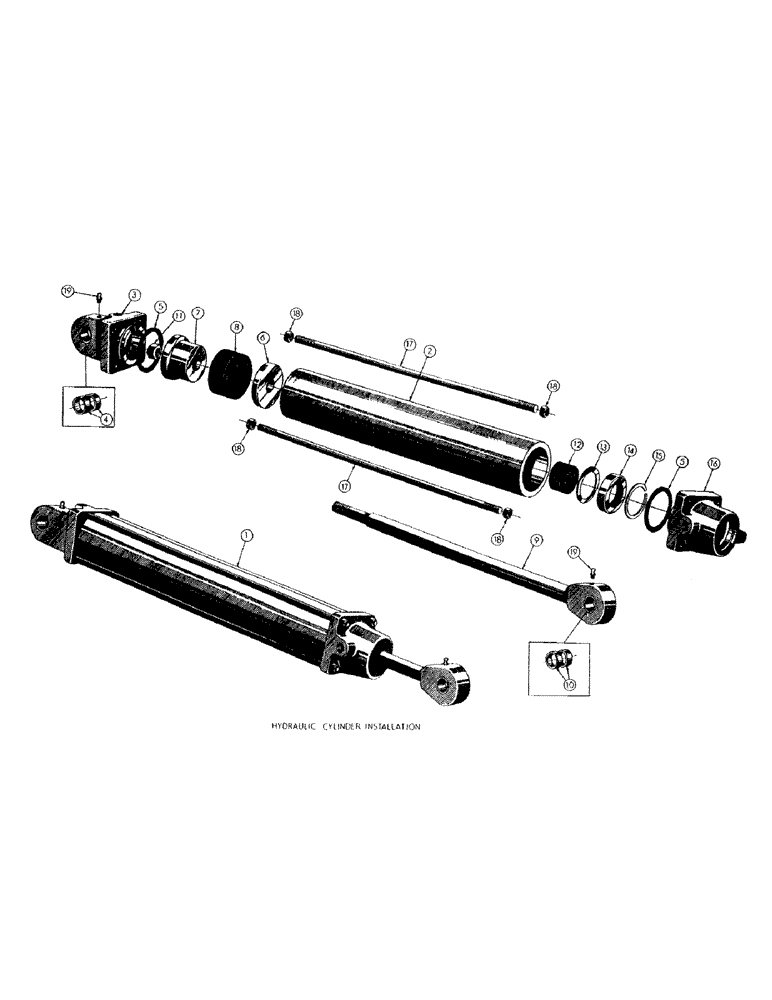

Запчасти Case 300 (121) - LIFT CYLINDER INST. (07) - HYDRAULIC SYSTEM

1

HYDRAULIC CYLINDER ASS'Y - RH (Inc. ref. #2 thru 19) (GROUP NO. 31608)

1шт.

HYDRAULIC CYLINDER ASS'Y - LH (Inc. ref. #2 thru 19) (GROUP NO. 31609)

1шт.

2

30570

DRAWBAR

TUBE - hydraulic cylinder

1шт.

3

36226

CYLINDER END ASS'Y - (Inc. ref. #4)

1шт.

4

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING SEAL

2шт.

6

NLS

NO LONGER SERVICED

RETAINER WASHER

1шт.

7

30571

RETAINER SPACER

1шт.

8

17578

PACKING

PISTON PACKING

1шт.

9

36229

END YOKE & PISTON ROD ASS'Y - (Inc. ref. #10)

1шт.

10

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

11

48378

X

ELASTIC STOP NUT - (1"-14 NF)

1шт.

12

30568

PACKING

ROD PACKING

1шт.

13

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

PACKING WASHER

1шт.

14

30574

WIPER SEAL

WIPER SEAL

1шт.

15

17584

SNAP RING

1шт.

16

30567

FLANGE

END CAP

1шт.

17

30569

ROD

TIE ROD

4шт.

18

17586

LOCKNUT - (1/2-20 NF)

8шт.

19

49200

X

GREASE FITTING - straight 1/8 NP

2шт.
