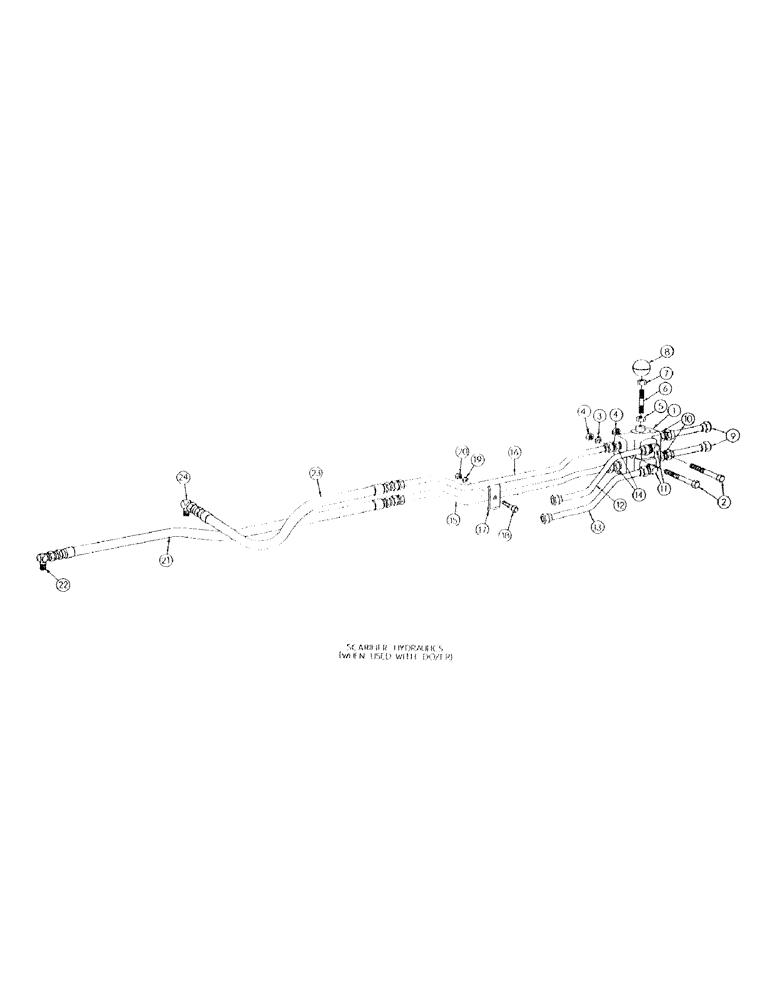

Запчасти Case 300 (110) - SCARIFIER HYDRAULICS (WHEN USED WITH DOZER) (07) - HYDRAULIC SYSTEM

1

16628

SEAL

DIVERSION VALVE

1шт.

2

45664

HHCS - 3/8-24 NF x 3 (16628 mt'g)

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

5

47801

BALL BEARING

HEX NUT - reg. S.F.

1шт.

6

18574

STUD

1шт.

7

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

1шт.

8

CAS31375

KNOB

BALL GRIP

1шт.

9

18930

TOOL

TUBE ASS'Y - div., Serial Range: valve-manifold

2шт.

10

50041

SPARE PARTS CAT

MALE CONNECTOR - 1/2 NP to 5/8 JIC

2шт.

11

50114

X

MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

2шт.

12

18948

KNOB

TUBE ASS'Y - valve to div. valve

1шт.

13

18945

TUBE ASS'Y - valve to div. valve

1шт.

14

50024

MALE CONNECTOR - 1/2 NP to 5/8 JIC

2шт.

15

18932

TUBE ASS'Y - div., Serial Range: valve-cylinder

1шт.

16

18933

TUBE ASS'Y - div., Serial Range: valve-cylinder

1шт.

17

32978

PLATE ASSY.

CLAMP

1шт.

18

45632

HHCS - 5/16-24 NF x 1-1/4 (32978 mt'g)

1шт.

19

48445

LOCKWASHER - med. sec.

1шт.

20

48101

X

HEX NUT - reg. S.F.

1шт.

21

19178

HOSE

ASS'Y - div., Serial Range: valve-cylinder

1шт.

22

50114

X

MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC

1шт.

23

19209

HOSE ASSY.

HOSE ASS'Y - div., Serial Range: valve-cylinder

1шт.

24

35310

FLOW RESTRICTOR ASS'Y

1шт.
