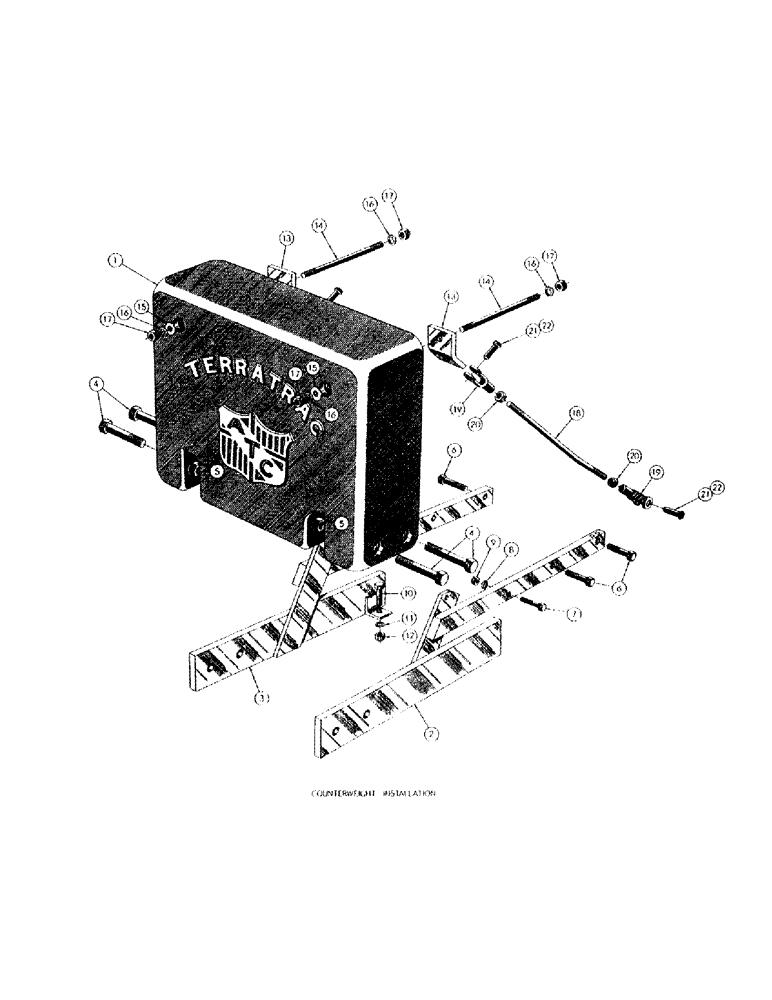

Запчасти Case 300 (081) - COUNTERWEIGHT INST. (05) - UPPERSTRUCTURE CHASSIS

COUNTERWEIGHT INST. - (Inc. ref. #1 thru 22) (GROUP NO. 7479)

1шт.

1

31112

O-RING

COUNTERWEIGHT

1шт.

2

34459

COUNTERWEIGHT MOUNTING ASS'Y - RH

1шт.

3

34460

COUNTERWEIGHT MOUNTING ASS'Y - LH

1шт.

4

45846

HHCS - 1"-14 NF x 5-1/2 (31112 mt'g)

4шт.

5

17585

X

LOCKNUT - (1"-14 NF)

4шт.

6

45763

HHCS - 5/8-18 NF x 2-3/4 (34459 & 34460 mt'g)

4шт.

7

45711

CLIP

HHCS - 1/2-20 NF x 2-1/4 (34459 & 34460 mt'g)

2шт.

8

48448

X

LOCKWASHER - med. sec.

2шт.

9

48104

PISTON

HEX NUT - reg. S.F.

2шт.

10

45758

SPACER

HHCS - 5/8-18 NF x 1-1/2 (34459 & 34460 mt'g)

2шт.

11

48450

FRONT AXLE

LOCKWASHER - med. sec.

2шт.

12

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.f.

2шт.

13

32167

ATTACHING STRAP

2шт.

14

32169

GEAR

HOLDING ROD

2шт.

15

48428

AXLE-SHAFT, ARTICULA

PLAINWASHER

2шт.

16

48448

X

LOCKWASHER - med. sec.

4шт.

17

48104

PISTON

HEX NUT - reg. S.F.

4шт.

18

33432

ROD BRACE

2шт.

19

48605

X

ADJUSTABLE YOKE END

4шт.

20

48104

PISTON

HEX NUT - reg. S.F.

4шт.

21

48665

YOKE PIN - S.A.E. standard

4шт.

22

48695

X

COTTER PIN - 1/8 dia. x 1

4шт.
