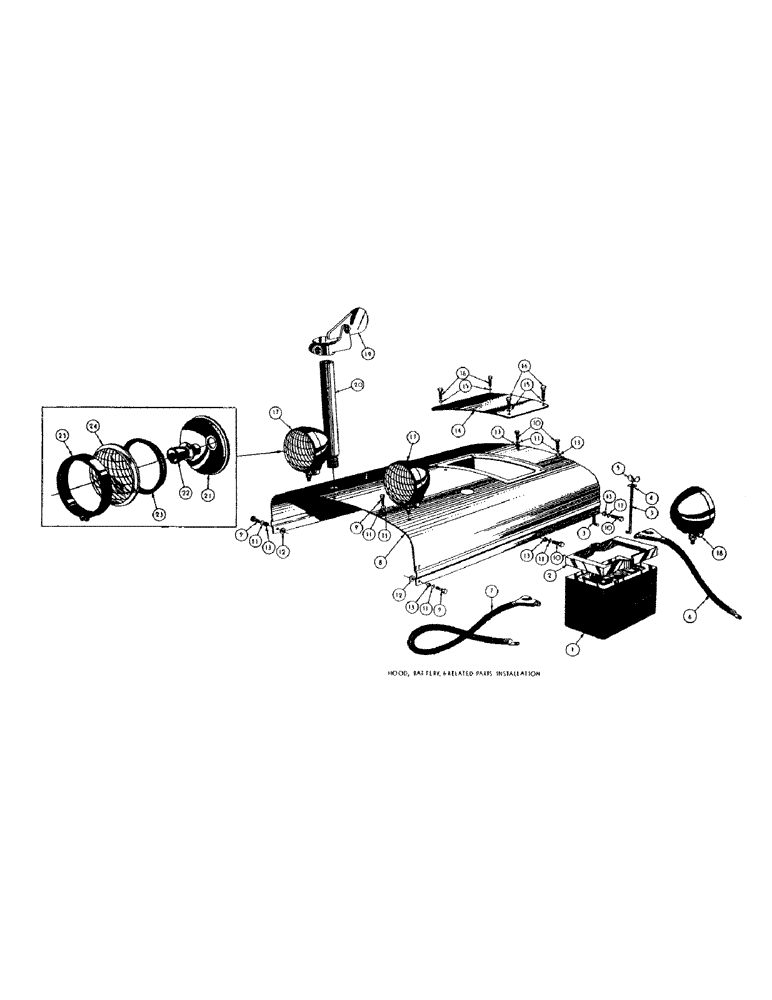

Запчасти Case 300 (055) - HOOD, BATTERY, & RELATED PARTS INST. (05) - UPPERSTRUCTURE CHASSIS

1

30870

BATTERY

1шт.

2

33545

HOLD DOWN BRACKET - battery

1шт.

3

33547

ANGLE BOLT - (33545 mt'g)

2шт.

4

48405

X

PLAINWASHER

2шт.

5

48056

WING NUT - (5/16-18 NC)

2шт.

6

30875

CABLE -, Serial Range: battery-ground

1шт.

7

30875

CABLE -, Serial Range: battery-starter

1шт.

8

NLS

NO LONGER SERVICED

HOOD - engine

1шт.

9

45654

X

HHCS - 3/8-24 NF x 3/4 (33524 mt'g front)

6шт.

10

45654

X

HHCS - 3/8-24 NF x 3/4 (33524 mt'g rear)

4шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

12

48405

X

PLAINWASHER

10шт.

13

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

10шт.

14

GI33522

CLIP

LID - battery inspection

1шт.

15

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

LOCKWASHER - med. sec.

2шт.

16

45602

ROLLER

HHCS - 1/4-28 NF x 1/2 (33522 mt'g)

2шт.

17

10890

KIT

HEADLAMP ASS'Y - (Inc. ref. #21 thru 25)

2шт.

18

10890

KIT

TAIL LAMP ASS'Y - (Inc. ref. #21 thru 25)

1шт.

19

10943

HOSE

RAINCAP ASS'Y - (Optional)

1шт.

20

10933

HOSE

EXHAUST PIPE ASS'Y

1шт.

21

10893

BELLEVILLE SPRING

REFLECTOR - lamp

1шт.

22

30891

CATALOG

BULB - lamp

1шт.

23

10894

GASKET - lamp

1шт.

24

10895

LENS - lamp

1шт.

25

10896

MOULDING ASS'Y - lamp

1шт.

49561

GROMMET,1/4" ID x 7/16" Groove Dia

RUBBER GROMMET - (Not shown)

2шт.

48406

X

PLAINWASHER - (10890 mt'g) (Not shown)

2шт.

48354

SPECIAL NUT - (10890 mt'g) (Not shown)

2шт.
