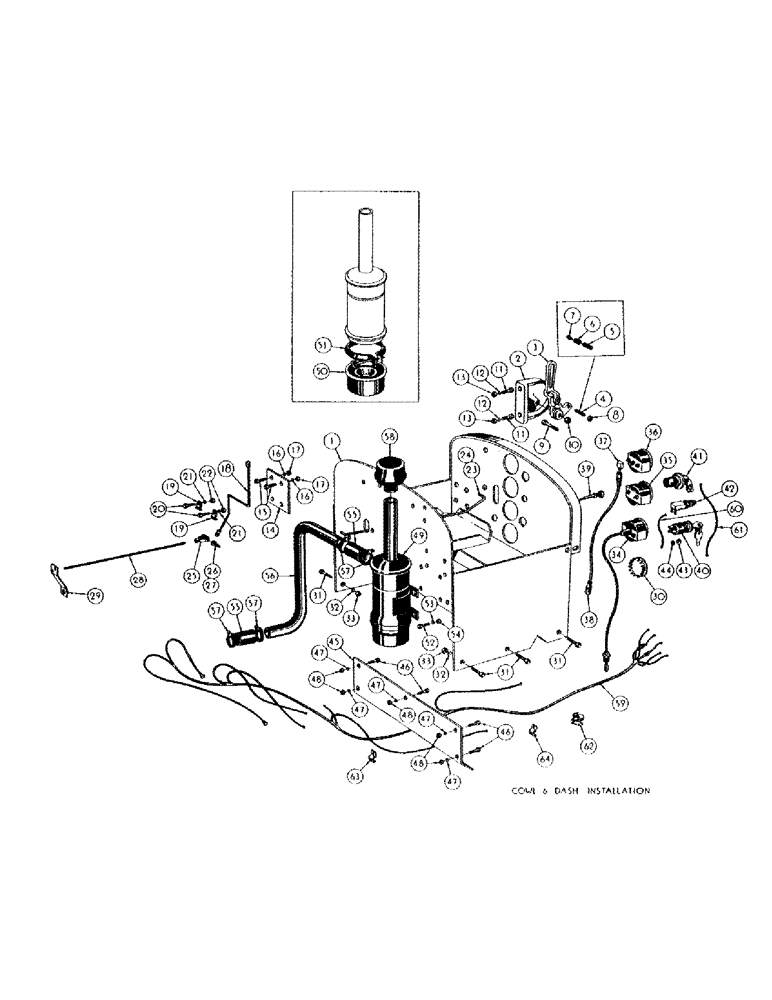

Запчасти Case 300 (048) - COWL & DASH INST. (05) - UPPERSTRUCTURE CHASSIS

1

33669

SCREW

COWL & DASH ASS'Y

1шт.

2

30915

PROTRACTOR

1шт.

3

30916

LEVER - throttle control

1шт.

4

POPPET INST. (Inc. ref. #5 thru 7) (GROUP NO. 30920)

1шт.

5

30917

POPPET CONTAINER

1шт.

6

30918

NUT

POPPET SPRING

1шт.

7

30919

POPPET

1шт.

8

48194

X

HEX JAM NUT - reg. S.F. (1/2-20 NF)

1шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

HHCS - 3/8-16 NC x 2-1/4 (30916 mt'g)

1шт.

10

47802

BUTTON

HEX NUT - reg. S.F.

1шт.

11

45657

HHCS - 3/8-24 NF x 1-1/4 (30915 mt'g)

2шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

13

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

14

30938

SUPPORT PLATE - throttle

1шт.

15

582816R11

COLLAR

HHCS - 5/16-24 NF x 1 (30938 mt'g)

2шт.

16

48445

LOCKWASHER - med. sec.

2шт.

17

48101

X

HEX NUT - reg. S.F.

2шт.

18

33941

FITTING

CRANK - throttle

1шт.

19

49788

WINDGUARD

CLAMP - (33941 mt'g)

2шт.

20

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS - 1/4-28 NF x 3/4 (49788 mt'g),Needle, Weld Assy.

2шт.

21

48444

GUIDE

LOCKWASHER - med. sec.

2шт.

22

48100

HEX NUT - reg. S.F.

2шт.

23

30937

ROD -, Serial Range: throttle-crank

1шт.

24

48693

COTTER PIN - 1/8 dia. x 3/4

2шт.

25

48601

X

ADJUSTABLE YOKE END

1шт.

26

48661

X

YOKE PIN - SAE standard

1шт.

27

48674

COTTER PIN - 1/16 dia. x 3/4

1шт.

28

30934

ROD - throttle control

1шт.

29

60659

GUIDE - throttle control rod

1шт.

30

30842

SPARE PART

BUTTON PLUG

1шт.

31

45656

X

HHCS - 3/8-24 NF x 1 (33669 mt'g)

6шт.

32

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

33

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

6шт.

34

11284

ELECTRICAL GAUGE

HEAT INDICATOR ASS'Y

1шт.

35

10860

X

AMMETER ASS'Y

1шт.

36

NLS

NO LONGER SERVICED

OIL PRESSURE GAUGE ASS'Y

1шт.

37

50476

SCREW

FEMALE ELBOW 90 DEGREES - 1/8 NP to 1/4 SAE

1шт.

38

51040-36

HOSE ASS'Y

1шт.

39

10856

CARBURETOR CHOKE CONTROL ASS'Y

1шт.

40

10868

LOCK SWITCH ASS'Y

1шт.

41

10855

X

SWITCH ASS'Y - headlights

1шт.

42

NLS

NO LONGER SERVICED

PUSH BUTTON STARTER SWITCH ASS'Y)10864)

1шт.

43

48549

PLAINWASHER - brass (10864 mt'g)

3шт.

44

48081

PIPE

HEX NUT - brass (10864 mt'g)

3шт.

45

33673

BRUSH

CENTER PLATE - cowl & dash

1шт.

46

45656

X

HHCS - 3/8-24 NF x 1 (33673 mt'g)

5шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

48

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

5шт.

49

10800

AIR CLEANER ASS'Y - (Inc. ref. #50 & 51)

1шт.

50

10810

RETAINER COLLAR

OIL CUP ASS'Y

1шт.

51

10811

STUD

RETAINING CLAMP ASS'Y - oil cup

1шт.

52

45629

X

HHCS - 5/16-24 NF x 3/4 (10800 mtg)

4шт.

53

48445

LOCKWASHER - med. sec.

4шт.

54

48101

X

HEX NUT - reg. S.F.

4шт.

55

R14169

HOSE

- air cleaner

2шт.

56

34398

TUBE - air cleaner

1шт.

57

214-1444

HOSE CLAMP,58.6mm - 82.5mm

HOSE - clamp

4шт.

58

30678

CAP - air cleaner inlet

1шт.

59

30866

WIRING HARNESS ASS'Y - (Inc. ref. #60 & 61)

1шт.

60

30863

JUMPER WIRE

1шт.

61

30864

JUMPER WIRE

2шт.

62

49876

BUMPER

CLIP - wiring (30866 mt'g)

6шт.

63

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- (30866 mt'g)

4шт.

64

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- (30866 mt'g)

2шт.
