Запчасти Case 300 (046) - FENDER & SEAT INST. (05) - UPPERSTRUCTURE CHASSIS

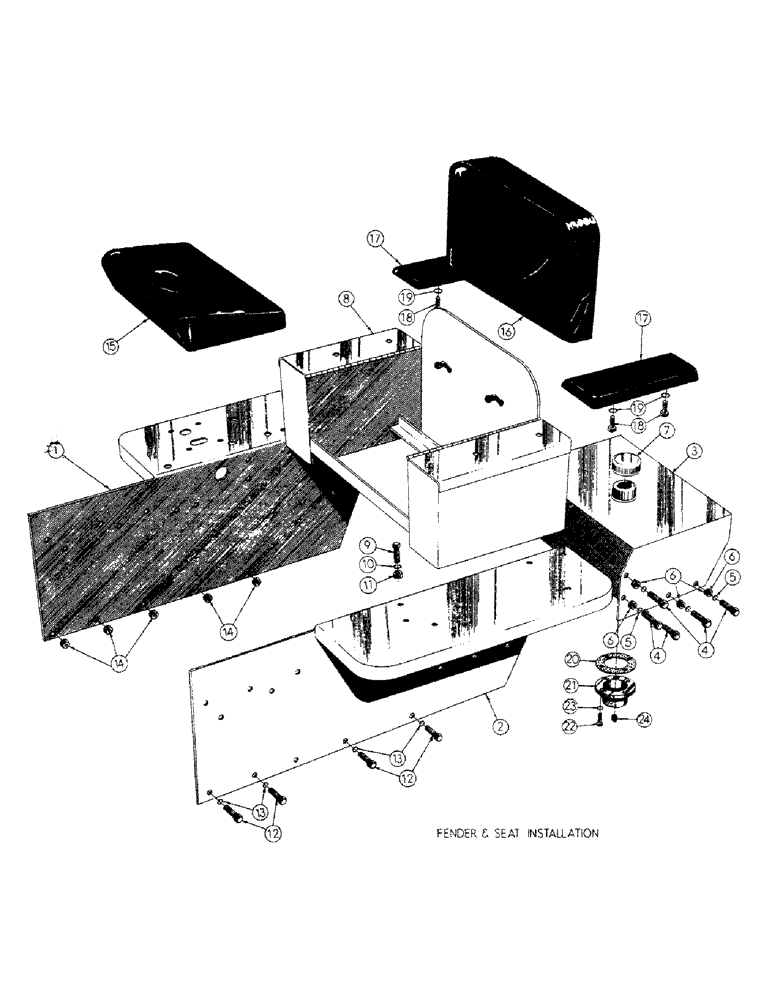

Схема запчастей Case 300 - (046) - FENDER & SEAT INST. (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

32396

FENDER ASS'Y - RH

1шт.

2

33093

PIN

FENDER ASS'Y - LH

1шт.

3

13635

SCREW

FUEL TANK ASS'Y

1шт.

4

45654

X

HHCS - 3/8-24 NF x 3/4 (13635 mt'g)

10шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

6

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

10шт.

7

CASE10731

FILLER CAP

CAP - fuel tank

1шт.

8

13640

SEAT ASS'Y

1шт.

9

45654

X

HHCS - 3/8-24 NF x 3/4 (13640 mt'g)

8шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

11

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

8шт.

12

45656

X

HHCS - 3/8-24 NF x 1 (32396 & 33093 mt'g)

9шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

9шт.

14

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

9шт.

15

33526

BUSHING

SEAT CUSHION

1шт.

16

NLS

NO LONGER SERVICED

SEAT BACK CUSHION

1шт.

17

34702

SPRING CUP

ARM REST CUSHION

2шт.

18

45004

X

HHCS - 1/4-20 NC x 3/4 (34702 mt'g)

4шт.

19

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

LOCKWASHER - med. sec.

4шт.

20

30780

BUSHING

GASKET - drain cover

1шт.

21

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

22

45656

X

HHCS - 3/8-24 NF x 1 (34574 mt'g)

4шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

24

41973

PIPE PLUG - ext. sq. head 1/8 NP

1шт.

Выбрано товаров: 24
