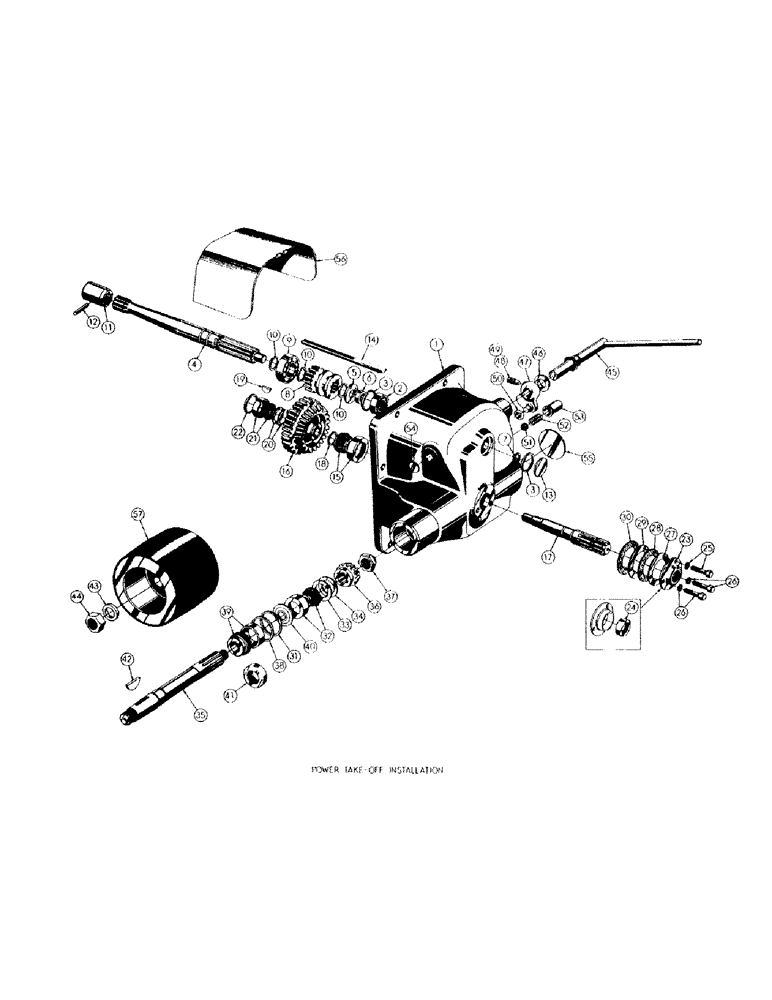

Запчасти Case 300 (118) - POWER TAKE-OFF INST. (04) - UNDERCARRIAGE

POWER TAKE-OFF INST. WITH BELT PULLEY - (Inc. ref. #1 thru 57) (GROUP NO. 6135)

1шт.

POWER TAKE-OFF INST. - (Inc. ref. #1 thru 56) (GROUP NO. 6134)

1шт.

POWER TAKE-OFF INST. - (Inc. ref. #1 thru 55) (GROUP NO. 22999)

1шт.

1

23087

HYDRAULIC HOSE

POWER TAKE-OFF HOUSING ASS'Y - (Inc. ref. #31)

1шт.

2

23043

BEARING ASS'Y - PTO drive shaft

1шт.

3

23030

PLATE

SNAP RING - PTO shaft br'g

2шт.

PTO DRIVE SHAFT INST. - (Inc. ref. #4 thru 12) (GROUP NO. 23053)

1шт.

4

23009

OIL SEAL

DRIVE SHAFT - PTO

1шт.

5

23022

HYDRAULIC HOSE

SPACER - drive shaft bearing

1шт.

6

23023

BEARING CONE,0.669" ID x 0.9797" OD

INNER RACE - drive shaft bearing

1шт.

7

23024

HYDRAULIC HOSE

RETAINING RING - drive shaft

1шт.

8

23054

CARTRIDGE

GEAR - PTO drive shaft

1шт.

9

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

BALL BEARING ASS'Y

1шт.

10

NLS

NO LONGER SERVICED

SNAP RING - PTO drive shaft

3шт.

11

23018

SLEEVE,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

- drive shaft

1шт.

12

23019

RIVET

- drive shaft sleeve

1шт.

13

23080

HYDRAULIC HOSE

WELCH PLUG - PTO drive shaft hole

1шт.

14

23088

TUBE

OIL TUBE - PTO bearing

1шт.

15

11449

X

ROLLER BEARING ASS'Y

1шт.

16

23073

HYDRAULIC HOSE,Hex, 3/4"-10 x 10", G5

GEAR - PTO shaft

1шт.

17

23025

HYDRAULIC HOSE

PTO SHAFT

1шт.

18

11452

X

SNAP RING - outer br'g retaining

1шт.

19

23032

X

WOODRUFF KEY - gear mt'g

1шт.

20

23038

HYDRAULIC HOSE

SHIM - PTO shaft inner br'g

1шт.

21

23044

ROLLER BEARING ASS'Y

1шт.

22

23031

HYDRAULIC HOSE

SNAP RING - bearing retaining

1шт.

23

22998

CAP ASS'Y - PTO shaft brg. (Inc. ref. #24)

1шт.

24

23033

OIL SEAL

- PTO shaft

1шт.

25

NLS

NO LONGER SERVICED

SCREW & LOCKWASHER ASS'Y

1шт.

26

23016

CAP

SCREW & LOCKWASHER ASS'Y

2шт.

27

23013

TINE

SHIM - PTO br'g cap (.010)

1шт.

28

23014

4 WAY CONNECTION

GASKET - PTO br'g cap

1шт.

29

23012

TINE

SHIM - PTO

1шт.

30

23015

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

GASKET - PTO br'g cap

1шт.

31

11453

TAPERED BEARING

SNAP RING - BP shaft br'g retaining

1шт.

32

11449

X

ROLLER BEARING ASS'Y

1шт.

33

23035

HYDRAULIC HOSE

SHIM - BP inner br'g (.005)

1шт.

34

23036

HYDRAULIC HOSE

SHIM -BP inner br'g (.010)

1шт.

35

23027

SHAFT - belt pulley

1шт.

36

23074

HYDRAULIC HOSE

GEAR - BP shaft bevel

1шт.

37

11380

NUT

- BP gear retaining

1шт.

38

11453

TAPERED BEARING

SNAP RING - BP shaft br'g retaining

1шт.

39

11449

X

ROLLER BEARING ASS'Y

1шт.

40

23037

HYDRAULIC HOSE

OIL WASHER - BP shaft

1шт.

41

D49930

OIL SEAL

OIL SEAL - BP shaft

1шт.

42

23039

HYDRAULIC HOSE

WOODRUFF KEY - BP shaft

1шт.

43

23042

HYDRAULIC HOSE

WASHER - BP retaining nut

1шт.

44

23041

HYDRAULIC HOSE

NUT - BP retaining

1шт.

45

23046

VALVE SPRING

PTO SHIFT LEVER & SHAFT ASS'Y

1шт.

46

23093

HYDRAULIC HOSE

CORK WASHER - shift shaft

1шт.

47

23094

HYDRAULIC HOSE

SHIFT FINGER

1шт.

48

23095

HYDRAULIC HOSE

SCREW - shift finger mt'g

1шт.

49

11416

X

LOCKWIRE

1шт.

50

23096

FILTER ASSY

TRUNNION - shift finger

1шт.

51

23099

X

BALL - mesh lock

1шт.

52

23098

SPRING

- mesh lock

1шт.

53

23097

FLANGE NUT,Flg, 7/16"-14, GF

RETAINER - mesh lock

1шт.

54

23089

HYDRAULIC HOSE

WELSH PLUG - PTO shift shaft bore

1шт.

55

23034

HYDRAULIC HOSE

WELSH PLUG - BP shaft plug

1шт.

56

23040

HYDRAULIC HOSE

SHIELD ASS'Y

1шт.

57

23045

BUSHING

BELT PULLEY - PTO

1шт.
