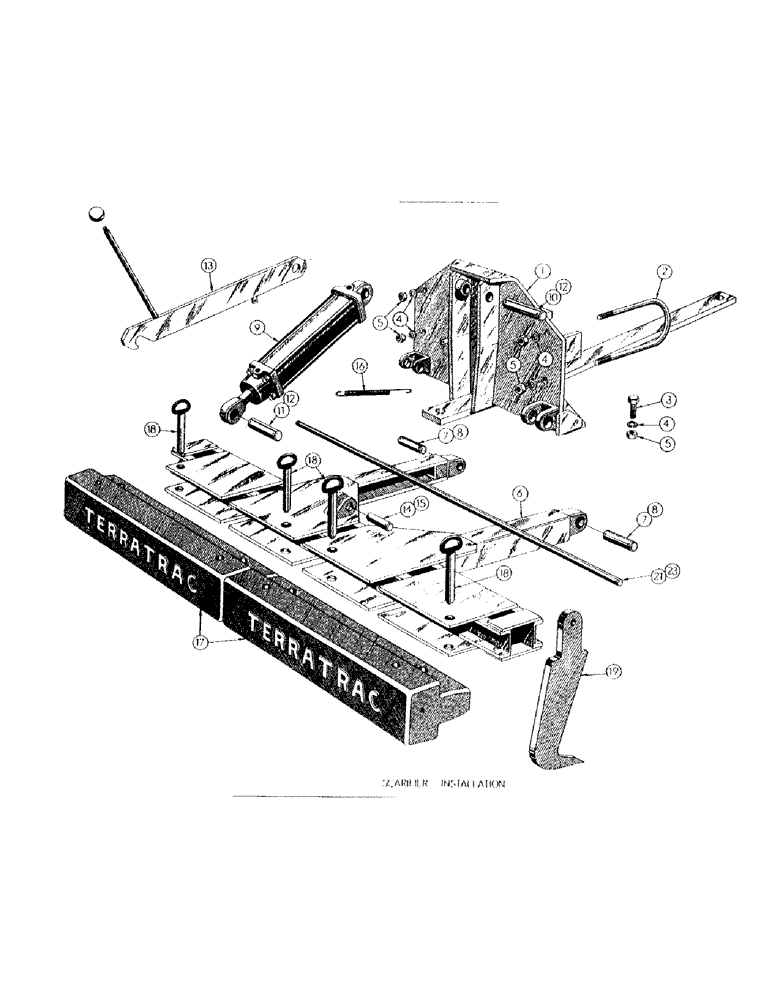

Запчасти Case 300 (106) - SCARIFIER INSTALLATION (04) - UNDERCARRIAGE

SCARIFIER INST. - (GROUP NO. 6153)

1шт.

1

31716

BACK PLATE ASS'Y

1шт.

2

31696

BOLT

"U" BOLT - (31716 mt'g)

2шт.

3

45758

SPACER

HHCS - 5/8-18 NF x 1-1/2 (31716 mt'g)

2шт.

4

48450

FRONT AXLE

LOCKWASHER - med. sec.

6шт.

5

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

6шт.

6

34349

FRAME ASS'Y - scarifier

1шт.

7

31715

PIN

- (34349 mt'g)

2шт.

8

48738

X

COTTER PIN - 1/4 dia. x 1-3/4

4шт.

9

30624

RING

HYDRAULIC CYLINDER ASS'Y (See Figure 127)

1шт.

10

34354

PIN - (30624 & 34358 mt'g)

1шт.

11

31715

PIN

- (30624 mt'g)

1шт.

12

48738

X

COTTER PIN - 1/4 dia. x 1-3/4

4шт.

13

34358

LOCK ASS'Y - scarifier

1шт.

14

34353

PIN - scarifier lock mt'g

1шт.

15

132-150

COTTER PIN,1/4" x 1 1/2"

COTTER PIN - 1/4 dia. x 1-1/2

2шт.

16

11469

SPRING

1шт.

17

19041

WEIGHT - scarifier

2шт.

18

CAS19055

PIN ASSY.

PIN ASS'Y - (19041 mt'g)

4шт.

19

31752

LINE

TOOTH - scarifier

5шт.

20

31714

HOLDING ROD

1шт.

21

48736

COTTER PIN - 1/4 dia. x 1-1/4

2шт.
