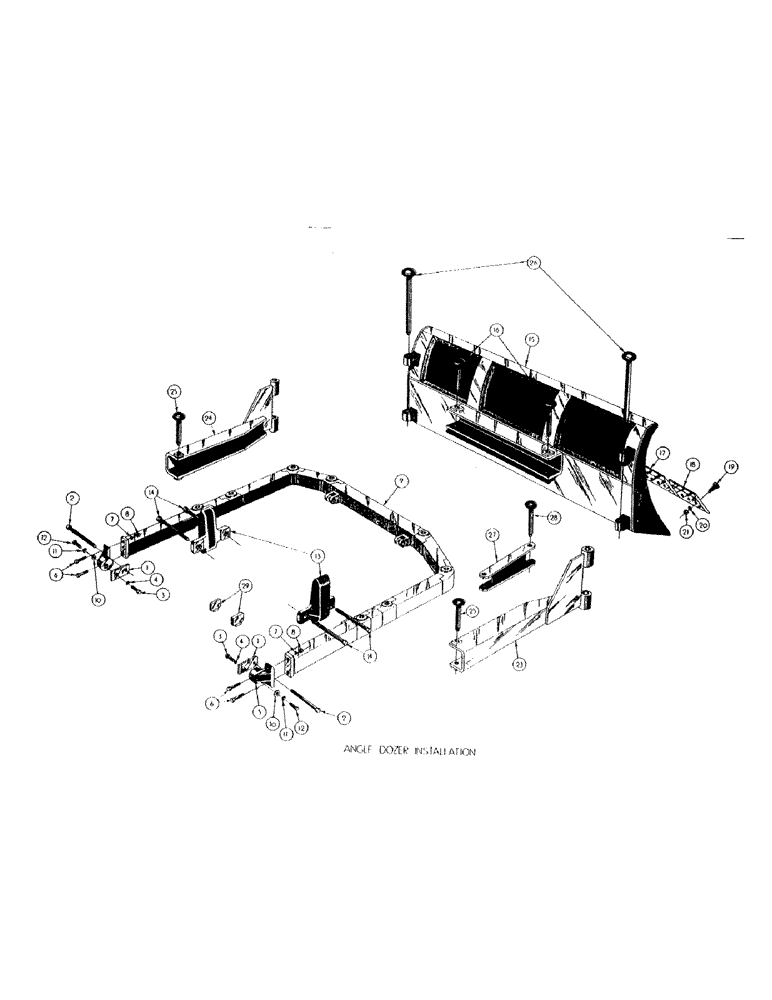

Запчасти Case 300 (099) - ANGLE DOZER INST. (04) - UNDERCARRIAGE

ANGLE DOZER INST. (GROUP NO. 6062)

1шт.

1

16747

HOSE

PIVOT BAR ASS'Y

2шт.

2

46495

SHIFTING UNIT

HHMB - 3/4-16 NF x 11-5/8 (16747 mt'g)

2шт.

3

45784

ARTICULATED SHAFT

HHCS - 3/4-16 NF x 1-3/4 (16747 mt'g)

2шт.

4

48452

X

LOCKWASHER - med. sec.

2шт.

5

17853

NUT

PIVOT BRACKET

2шт.

6

45791

X

HHCS - 3/4-16 NF x 3-1/2, Serial Range: (17853-16732)

4шт.

7

48452

X

LOCKWASHER - med. sec.

4шт.

8

48107

X

HEX NUT - reg. S.F.

4шт.

9

16732

O-RING

"A" FRAME ASS'Y

1шт.

10

17134

RETAINING WASHER

2шт.

11

48452

X

LOCKWASHER - med. sec.

2шт.

12

45782

HHCS - 3/4-16 NF x 1-1/4 (17853 mt'g)

2шт.

13

16679

RUB PLATE

2шт.

14

46495

SHIFTING UNIT

HHMB - 3/4-16 NF x 11-5/8 (16679 mt'g)

4шт.

15

16741

BLADE ASS'Y - angle dozer

1шт.

16

16720

SHROUD

PIN ASS'Y (16741 mt'g)

2шт.

17

16792

EDGE, CUTTING

CUTTING BLADE - center

1шт.

18

NLS

NO LONGER SERVICED

CUTTING BLADE - end

2шт.

19

46711

HOLDER

PLOW BOLT - 1/2-13 NC x 2 (16792 & 16187 mt'g)

22шт.

20

48448

X

LOCKWASHER - med. sec.

22шт.

21

47804

HEX NUT - reg. S.F.

22шт.

23

16757

FITTING

STABILIZER ARM ASS'Y - RH

1шт.

24

16758

STABILIZER ARM ASS'Y - LH

1шт.

25

16720

SHROUD

PIN ASS'Y - (16757 & 8 mt'g)

2шт.

26

16569

BACK PLATE

PIN ASS'Y - (16757 & 8 mt'g)

2шт.

27

16798

SUPPORT ARM ASS'Y - (Used only when angling blade)

1шт.

28

16720

SHROUD

PIN ASS'Y - (16798 mt'g)

1шт.

29

33676

DRAWBAR SUPPORT

SPRING LOCKOUT ASS'Y

2шт.
