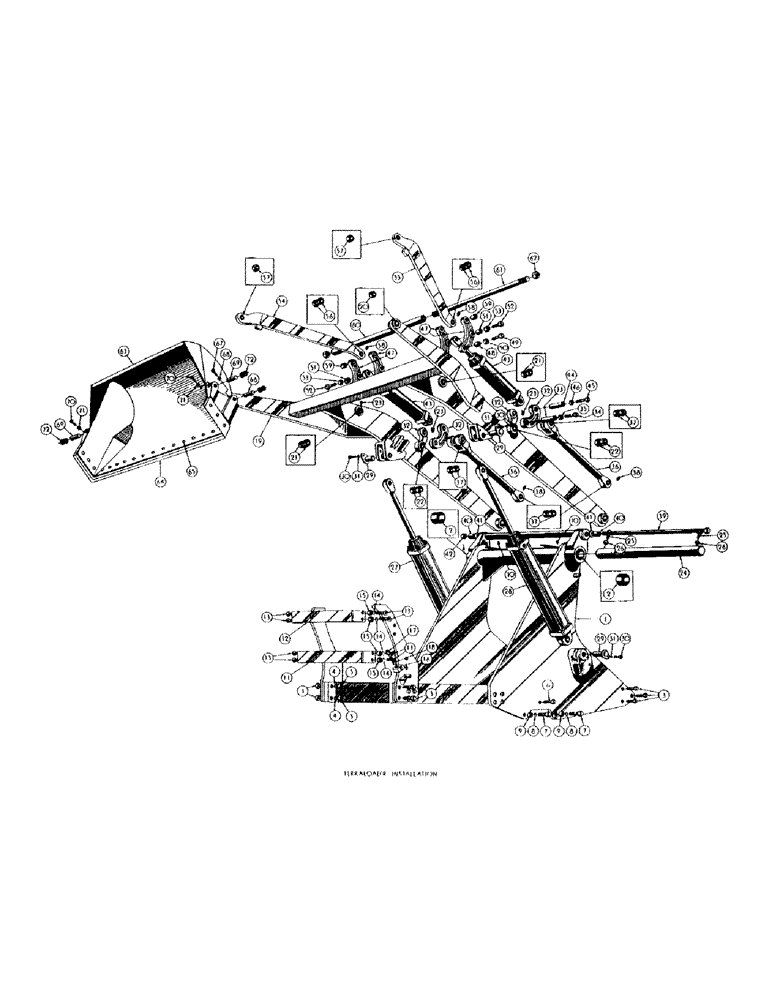

Запчасти Case 300 (090) - TERRALOADR INST. (04) - UNDERCARRIAGE

TERRALOAD'R INST. - (GROUP NO. 6209)

1шт.

1

31337

MAIN FRAME ASS'Y (Inc. ref. #2)

1шт.

2

31139

X

BUSHING

2шт.

3

45764

HHCS - 5/8-18 N.F. x 3 (31337 mt'g)

10шт.

4

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

4шт.

5

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

4шт.

6

45761

HHCS - 5/8-18 NF x 2-1/4 (31337 mt'g)

2шт.

7

45786

BEARING ASSY

HHCS - 3/4-16 NF x 2-1/4 (31337 mt'g)

4шт.

8

48452

X

LOCKWASHER - med. sec.

4шт.

9

48107

X

HEX NUT - reg. S.F.

4шт.

10

49200

X

GREASE FITTING - straight 1/8 NP

2шт.

11

31162

RUB PLATE REINFORCEMENT

1шт.

12

31618

RUB PLTE REINFORCEMENT

1шт.

13

46924

CLOTHING, HAT

FLAT HD. CAP SCREW - 1/2-20 NF x 1-3/4 (31162 & 31618 mt'g)

8шт.

14

48448

X

LOCKWASHER - med. sec.

8шт.

15

48104

PISTON

HEX NUT - reg. S.F.

8шт.

16

31636

STOP BLOCK

2шт.

17

45716

X

HHCS - 1/2-20 NF x 3-1/2 (31636 mt'g)

2шт.

18

17586

LOCKNUT - (1/2-20 NF)

2шт.

19

31306

MAIN ARM ASS'Y - (Inc. ref. #20 thru 22)

1шт.

20

31149

X

BUSHING

2шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

22

31323

CUTTING EDGE

BUSHING

4шт.

23

49217

X

GREASE FITTING 90 DEGREES - 1/8 NP

4шт.

24

31318

SHAFT - main arm mt'g

1шт.

25

45721

HHCS - 1/2-20 NF x 5-1/2 (31318 mt'g)

2шт.

26

17586

LOCKNUT - (1/2-20 NF)

2шт.

27

31608

HYDRAULIC CYLINDER ASS'Y - RH (See Figure 121)

1шт.

28

31609

HYDRAULIC CYLINDER ASS'Y - LH (See Figure 121)

1шт.

29

31109

PIN ASSY.

PIN ASS'Y - (31608 & 31609 mt'g)

4шт.

30

45706

COTTER PIN

HHCS - 1/2-20 NF x 1 (31109 mt'g)

4шт.

31

48448

X

LOCKWASHER - med. sec.

4шт.

32

70549

LEVER

4шт.

33

31146

SPACER

2шт.

34

45847

HHCS - 1"-14 NF x 6 (70549 mt'g)

2шт.

35

17585

X

LOCKNUT - (1"-14 NF)

2шт.

36

34276

LEVELING ROD ASS'Y - (Inc. ref. #37)

2шт.

37

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

38

49200

X

GREASE FITTING - straight 1/8 NP

2шт.

39

31147

BOLT - levelling rod pivot

1шт.

40

30959

SPACER

2шт.

41

48416

X

PLAINWASHER

2шт.

42

17585

X

LOCKNUT - (1"-14 NF)

1шт.

43

34128

HYDRAULIC CYLINDER ASS'Y - (See Figure 123)

2шт.

44

31146

SPACER

2шт.

45

45847

HHCS - 1"-14 NF x 6 (34276 & 34128 mt'g)

2шт.

46

17585

X

LOCKNUT - (1"-14 NF)

2шт.

47

30957

PIVOT LEVER - dump arm

4шт.

48

30959

SPACER

2шт.

49

45843

HHCS - 1"-14 NF x 4 (30957 mt'g)

2шт.

50

17585

X

LOCKNUT - (1"-14 NF)

2шт.

51

30959

SPACER

2шт.

52

45843

HHCS - 1"-14 NF x 4 (34128 mt'g)

2шт.

53

17585

X

LOCKNUT - (1"-14 NF)

2шт.

54

34269

WASHER

DUMP ARM ASS'Y - RH (Inc. ref. #56 & 57)

1шт.

55

34270

BELT

DUMP ARM ASS'Y - LH (Inc. ref. #56 & 57)

1шт.

56

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

57

31148

BUSHING

1шт.

58

49200

X

GREASE FITTING - straight 1/8 NP

2шт.

59

30959

SPACER

2шт.

60

31068

SPACER

1шт.

61

33965

SPACER

TIE ROD - (34269 & 34270 mt'g)

1шт.

62

17585

X

LOCKNUT - (1"-14 NF)

2шт.

63

32649

BUCKET ASS'Y - (Inc. ref. #64 & 65)

1шт.

64

30889

CUTTING EDGE - bucket

1шт.

65

49821

X

RIVET - (30889 mt'g)

21шт.

66

32599

PIN - (32649 mt'g)

2шт.

67

45718

HHCS - 1/2-20 NF x 4 (32599 mt'g)

2шт.

68

17586

LOCKNUT - (1/2-20 NF)

2шт.

69

32598

PIN

- (32649 mt'g)

2шт.

70

45667

HHCS - 3/8-24 NF x 3-3/4 (32598 mt'g)

2шт.

71

17606

X

LOCKNUT - (3/8-24 NF)

2шт.

72

31928

SHIM

1шт.
