Запчасти Case 300 (087) - RADIATOR GUARD INST. (04) - UNDERCARRIAGE

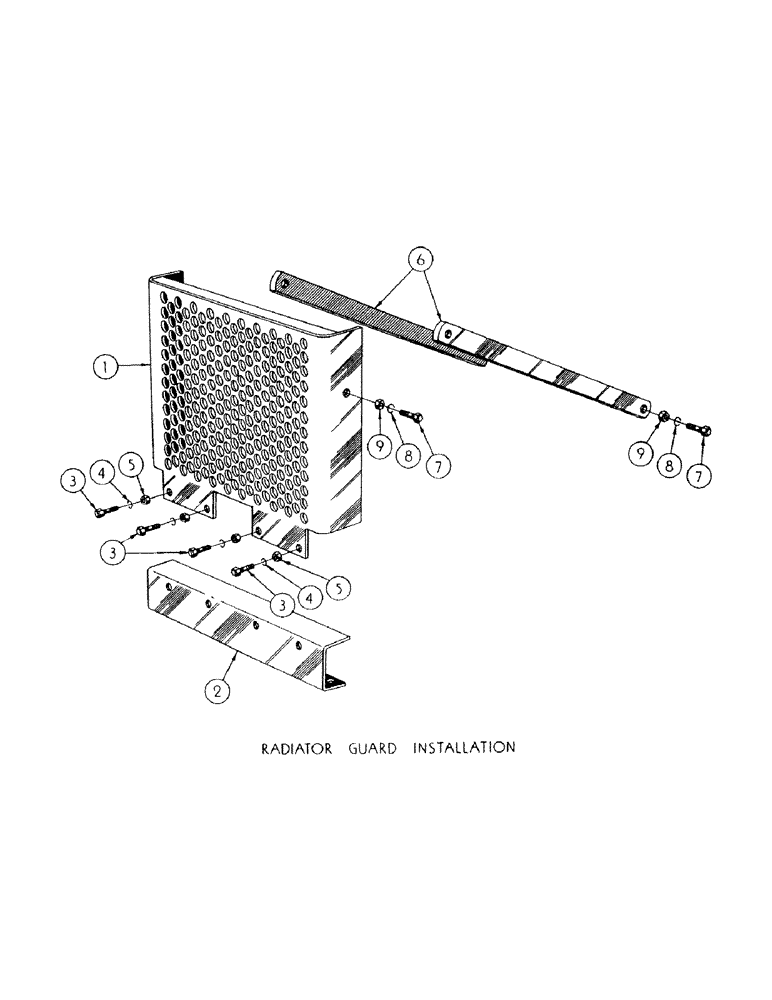

RADIATOR GUARD INST. - (Inc. ref. #1 thru ) (GROUP NO. 6240)

1шт.

1

30988

RADIATOR GUARD ASS'Y

1шт.

2

31769

SPACER

FRONT CROSSMEMBER

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4 (30988 & 31769 mt'g)

4шт.

4

48448

X

LOCKWASHER - med. sec.

4шт.

5

48104

PISTON

HEX NUT - reg. S.F.

4шт.

6

30995

BRACE

2шт.

7

45707

FLANGE

HHCS - 1/2-20 NF x 1-1/4 (30995 mt'g)

4шт.

8

48448

X

LOCKWASHER - med. sec.

4шт.

9

48104

PISTON

HEX NUT - reg. S.F.

4шт.
