Запчасти Case 300 (075) - ROCK GUARD INST. (04) - UNDERCARRIAGE

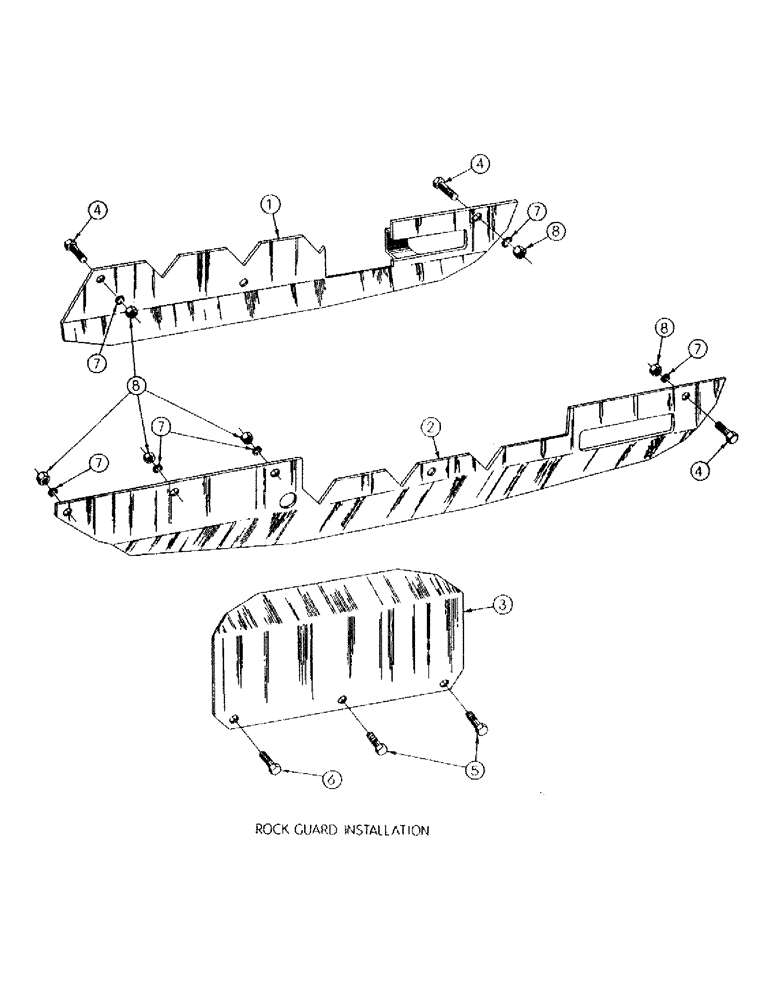

ROCK GUARD INST. (GROUP NO. 6120)

1шт.

1

32266

ROCK GUARD ASS'Y - inner RH

1шт.

32267

ROCK GUARD ASS'Y - inner LH

1шт.

2

32264

ROCK GUARD ASS'Y - outer RH

1шт.

32265

ROCK GUARD ASS'Y - outer LH

1шт.

3

32296

ATTACHING PLATE

2шт.

4

45708

X

HHCS - 1/2-20 NF x 1-1/2 (32266-7 & 32264-5 mt'g)

6шт.

5

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2-20 NF x 1-1/4 (32296 mt'g)

4шт.

6

45709

CLIP

HHCS - 1/2-20 NF x 1-3/4 (32296 mt'g)

2шт.

7

48448

X

LOCKWASHER - med. sec.

12шт.

8

48104

PISTON

HEX NUT - reg. S.F.

12шт.
