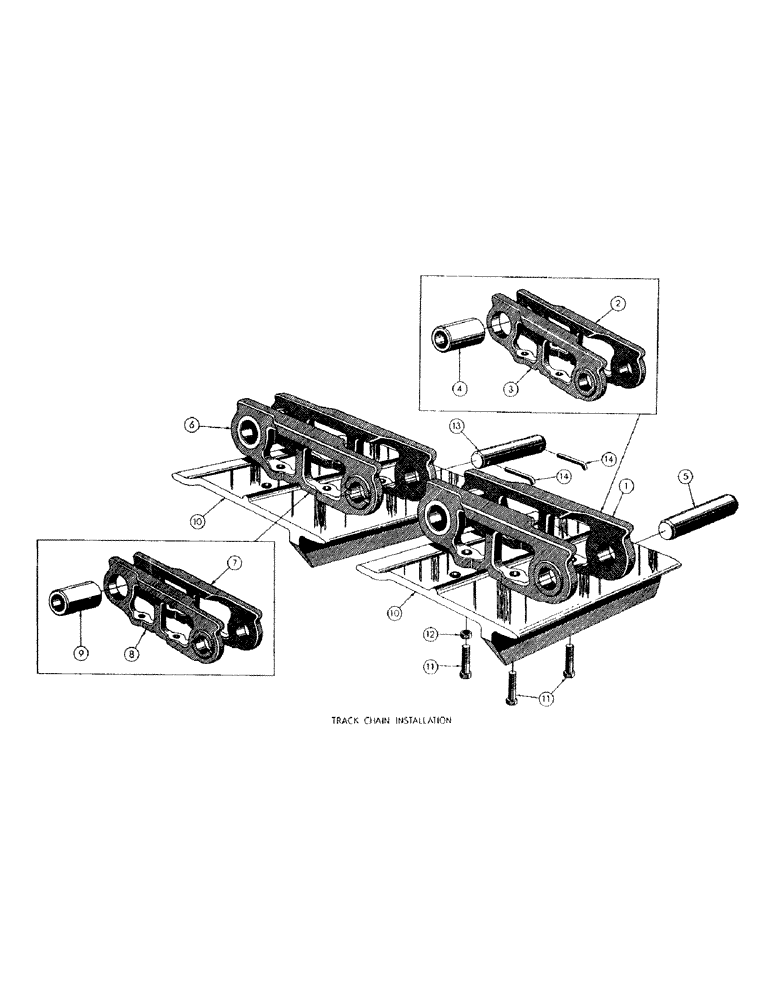

Запчасти Case 300 (067) - TRACK CHAIN INST. (04) - UNDERCARRIAGE

1

TRACK CHAIN ASS'Y (Inc. ref. #2 thru 4) (GROUP NO. 34589)

56шт.

2

30638

X

TRACK LINK - RH

1шт.

3

R41049

DRAG LINK

TRACK LINK - LH

1шт.

4

32830

BUSHING

- track chain

1шт.

5

32831

PIN

- track

56шт.

6

TRACK CHAIN MASTER ASS'Y - (Inc. ref. #7 thru 9) (GROUP NO. 34571)

4шт.

7

R41050

LINK

TRACK MASTER LINK - RH

1шт.

8

33286

LINK

TRACK MASTER LINK - LH

1шт.

9

NLS

NO LONGER SERVICED

- track chain

1шт.

10

32849

GROUSER - track 11 inch

60шт.

11

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (32849 mt'g)

240шт.

12

48092

HIGH NUT

240шт.

13

32994

AXLE PIN

TRACK MASTER PIN

4шт.

14

CAS32995

AXLE PIN

LOCK - master pin

8шт.

NLS

NO LONGER SERVICED

TRACK LINK SERVICE KIT - (Consists of 14 #34589 & 1 #34571)

2шт.

5482

TRACK LINK SERVICE KIT - (Consists of 15 #34589 & 1 #34571)

2шт.
