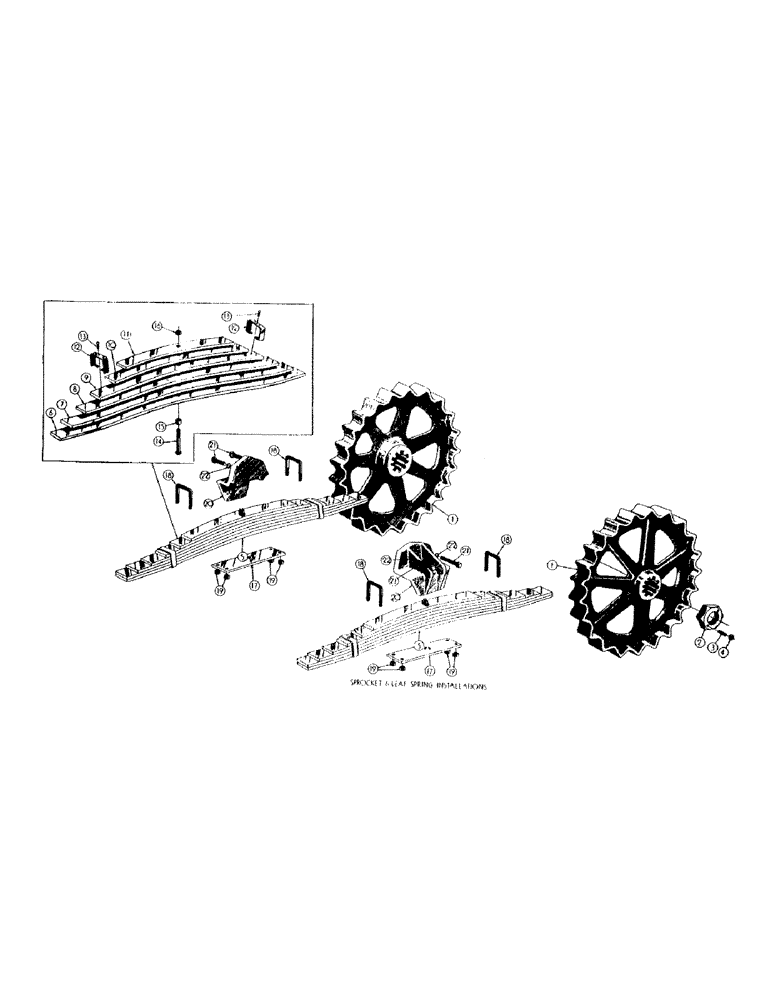

Запчасти Case 300 (065) - SPROCKET & LEAF SPRING INST. (04) - UNDERCARRIAGE

1

11822

SPROCKET - final drive

2шт.

2

11851

LOCK NUT

LOCKNUT - F/D sprocket

2шт.

3

47301

X

SET SCREW - Allen hd. 3/8-16 NC x 1

4шт.

4

47802

BUTTON

HEX NUT - reg. S.F.

4шт.

5

LEAF SPRING ASS'Y - (Inc. ref. #6 thru 16) (GROUP NO. 31134)

2шт.

6

33117

LEAF - 5/16 x 1-3/4 x 29-1/4

1шт.

7

33117

LEAF - 5/16 x 1-3/4 x 29-1/4

1шт.

8

33118

LEAF - 5/16 x 1-3/4 x 26-1/2

1шт.

9

33119

SPRING

LEAF - 5/16 x 1-3/4 x 22-1/4

1шт.

10

33120

NEEDLE BEARING

LEAF - 5/16 x 1-3/4 x 17-3/4

1шт.

11

33121

LEAF - 5/16 x 1-3/4 x 13

1шт.

12

33123

PIN

CLIP - leaf spring

2шт.

13

33124

PLUG

RIVET

2шт.

14

33125

SCREW

ROUND HD. BOLT - 5/16-24 NF x 3-1/2

1шт.

15

33179

SPARE PART

SPACER

1шт.

16

33127

X

HEX NUT - (5/16-24 NF)

1шт.

17

34559

PLATE - leaf spring

2шт.

18

NLS

NO LONGER SERVICED

"U" BOLT - leaf spring

4шт.

19

11930

O-RING,23mm ID x 2.5mm Width

LOCKNUT - (3/8-24 NF)

8шт.

20

NLS

NO LONGER SERVICED

BRACKET - leaf spring retaining

2шт.

21

45758

SPACER

HHCS - 5/8-18 NF x 1-1/2 (33094 mt'g)

4шт.

22

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

4шт.
