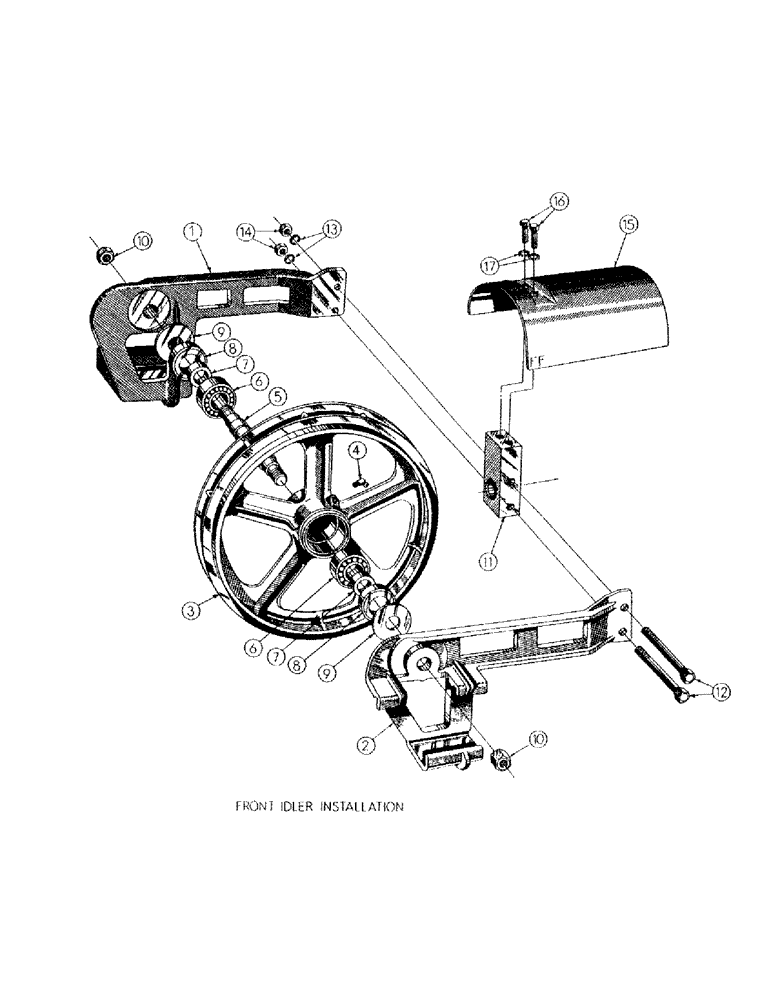

Запчасти Case 300 (063) - FRONT IDLER INST. (04) - UNDERCARRIAGE

1

32066

BRACKET - idler wheel RH

2шт.

2

32067

BRACKET - idler wheel LH

2шт.

3

32065

FRONT IDLER

HUB - idler wheel

2шт.

4

49232

X

GREASE FITTING - 67-1/2 1/4 NP

2шт.

5

32068

SHAFT

- front idler

2шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ASS'Y

4шт.

7

32051

SPACER

- front idler

4шт.

8

40633

PLATE

4шт.

9

30704

BEARING COVER

- front idler

4шт.

10

17585

X

LOCKNUT - (1" 14 NF)

4шт.

11

32069

SPACER BLOCK

2шт.

12

45716

X

HHCS - 1/2-20 NF x 3-1/2 (32069 mt'g)

4шт.

13

48448

X

LOCKWASHER - med. sec.

4шт.

14

48104

PISTON

HEX NUT - reg. S.F.

4шт.

15

32074

SHIELD

SLIDING SHIELD

2шт.

16

45652

SPARE PART

HHCS - 3/8-24 NF x 1/2 (30274 mt'g)

4шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.
