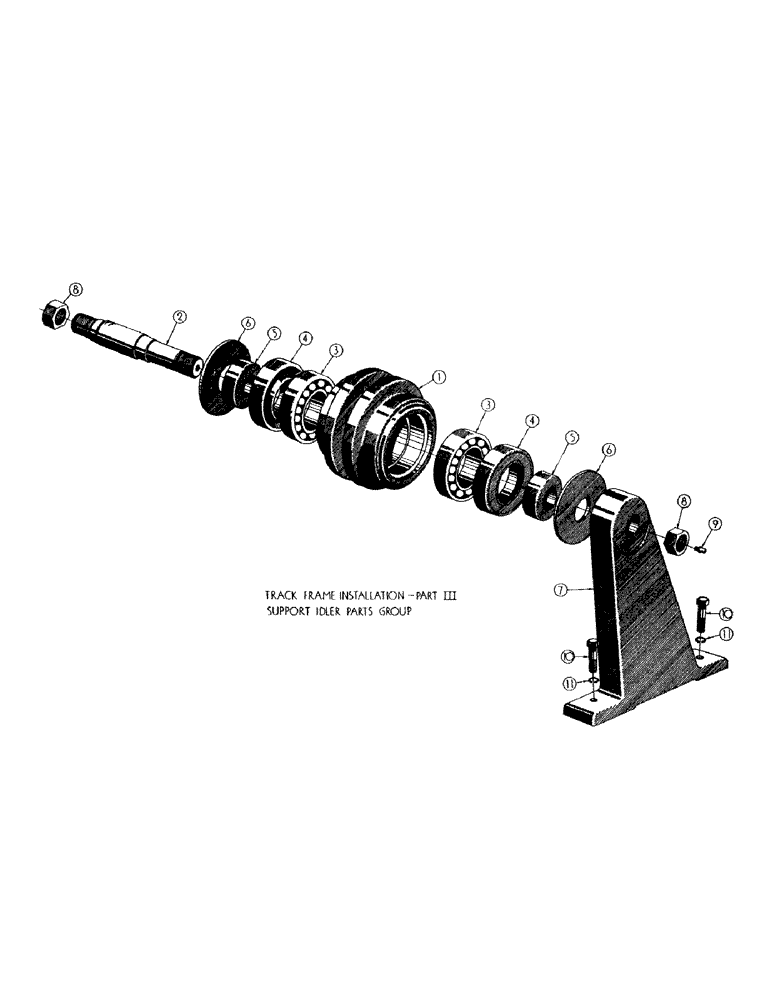

Запчасти Case 300 (061) - SUPPORT IDLER INST. (04) - UNDERCARRIAGE

TRACK SUPPORT IDLER INST. (Inc. ref. #1 thru 9) (GROUP NO. 31165)

2шт.

1

31163

ROLLER

HUB ASS'Y - track support idler

1шт.

2

30707

SHAFT

- track support idler

1шт.

3

40007

GASKET KIT

BEARING ASS'Y

2шт.

4

D29138

OIL SEAL

2шт.

5

32051

SPACER

- support idler

2шт.

6

30704

BEARING COVER

- support idler

2шт.

7

30718

BRACKET

- idler support

1шт.

8

17585

X

LOCKNUT - (1"-14 NF)

2шт.

9

49200

X

GREASE FITTING - straight 1/8 NP

1шт.

10

45759

X

HHCS - 5/8-18 NF x 1-3/4 (31165 mt'g)

4шт.

11

48450

FRONT AXLE

LOCKWASHER - med. sec.

4шт.
