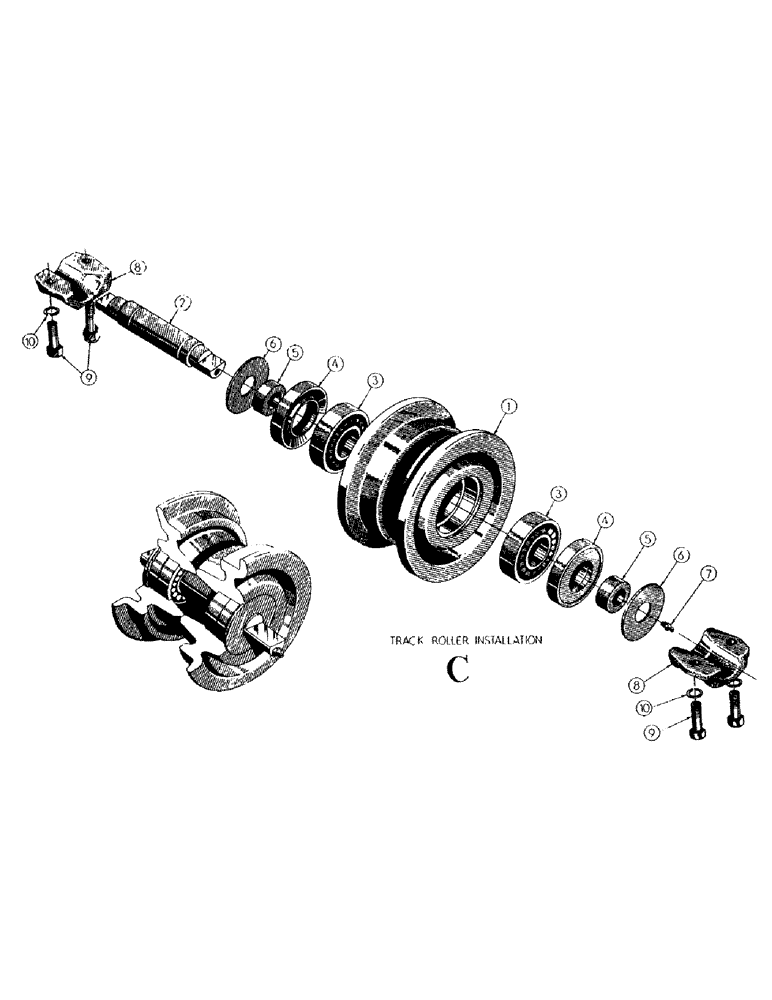

Запчасти Case 300 (059) - TRACK ROLLER INST. (04) - UNDERCARRIAGE

TRACK ROLLER INST. - (Inc. ref. #1 thru 7) (GROUP NO. 32032)

6шт.

1

32076

BEARING, ROLLER

HUB ASS'Y - track roller

1шт.

2

32056

SHAFT

- track roller

1шт.

3

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ASS'Y

2шт.

4

40633

PLATE

2шт.

5

32051

SPACER

- track roller

2шт.

6

30704

BEARING COVER

- track roller

2шт.

7

49200

X

GREASE FITTING - straight 1/8 NP

1шт.

8

32055

BOX

- track roller

12шт.

9

45708

X

HHCS - 1/2-20 NF x 1-1/2 (32055 mt'g)

24шт.

10

48448

X

LOCKWASHER - med. sec.

24шт.
