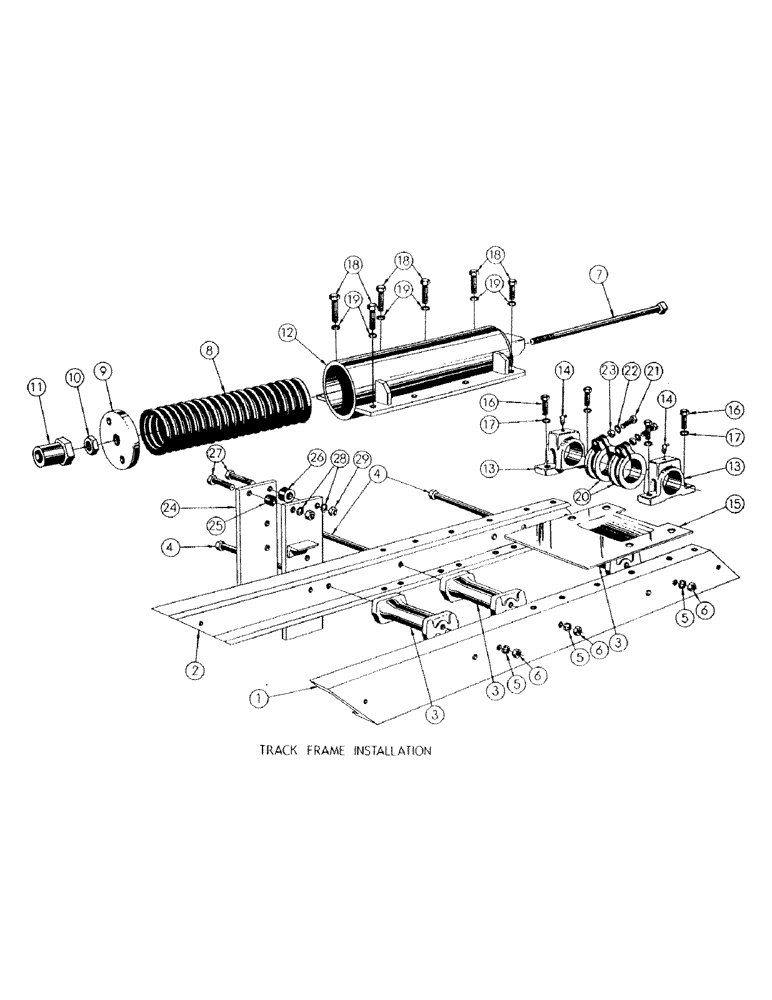

Запчасти Case 300 (057) - RECOIL SPRING & TRACK FRAME INST. (04) - UNDERCARRIAGE

1

31845

FITTING

TRACK CHANNEL - outer RH

1шт.

31846

TRACK CHANNEL - outer LH

1шт.

2

31847

TRACK CHANNEL ASS'Y - inner RH

1шт.

31848

COLLAR

TRACK CHANNEL ASS'Y inner LH

1шт.

3

51200219

NUT

SPACER - track frame

6шт.

4

46493

BOLT

HHMB - 3/4-16 NF x 10-7/8 (32093 mt'g)

6шт.

5

48452

X

LOCKWASHER - med. sec.

6шт.

6

48107

X

HEX NUT - reg. S.F.

6шт.

RECOIL SPRING INST. - RH (Inc. ref. #7 thru 12) (GROUP NO. 30478)

1шт.

RECOIL SPRING INST. - LH (Inc. ref. #7 thru 12) (GROUP NO. 30479)

1шт.

7

32094

BOLT,1" - 14 x 24 1/2", Steel

- track adjusting

1шт.

8

12088

DECAL

SPRING - recoil

1шт.

9

32096

NUT - tension adjusting

1шт.

10

48199

HEX JAM NUT - (1"-14 NF)

1шт.

11

51200219

NUT

- track adjusting

1шт.

12

32140

RECOIL SPRING HOUSING ASS'Y - RH

1шт.

32141

FITTING

RECOIL SPRING HOUSING ASS'Y - LH

1шт.

13

15082

COOLER

PIVOT BLOCK

4шт.

14

49232

X

GREASE FITTING - 67-1/2 degrees 1/4 NP

4шт.

15

32542

MUD PAN

2шт.

16

45784

ARTICULATED SHAFT

HHCS - 3/4-16 NF x 1-3/4 (15082 & 32542 mt'g)

8шт.

17

48452

X

LOCKWASHER - med. sec.

8шт.

18

45758

SPACER

HHCS - 5/8-18 NF x 1-1/2 (30478 & 30479 mt'g)

12шт.

19

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

12шт.

20

15101

CLAMP - track mt'g

4шт.

21

45764

HHCS - 5/8-18 NF x 3 (15101 mt'g)

4шт.

22

48450

FRONT AXLE

LOCKWASHER - med. sec.

4шт.

23

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

4шт.

24

32181

FORWARD SUPPORT PLATE

2шт.

25

1954811C1

BALL

SPACER

6шт.

26

32332

SPACER

2шт.

27

45764

HHCS - 5/8-18 NF x 3 (32181 mt'g)

8шт.

28

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

8шт.

29

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

8шт.
