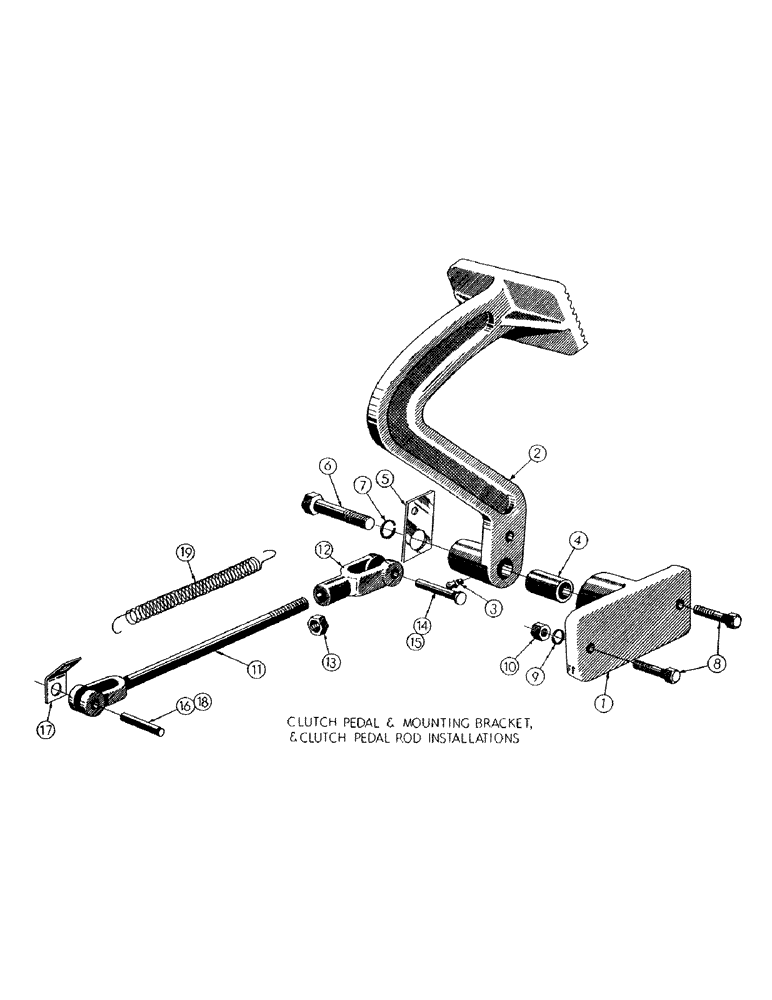

Запчасти Case 300 (042) - CLUTCH PEDAL & MTG BRACKET (03) - TRANSMISSION

1

11025

BELT, TRANSMISSION

MOUNTING BRACKET - clutch pedal

1шт.

2

11030

SCREW

CLUTCH PEDAL

1шт.

3

NLS

NO LONGER SERVICED

GREASE FITTING - straight drive type

1шт.

4

11031

SPACER

BUSHING - clutch pedal

1шт.

5

11470

BEARING

SPRING ANCHOR

1шт.

6

45162

HHCS - 5/8-11 NC x 2-1/2 (11030 mt'g)

1шт.

7

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

1шт.

8

45682

HHCS - 7/16-20 NF x 1-1/4 (11025 mt'g)

2шт.

9

48447

X

LOCKWASHER - med. sec.

2шт.

10

48103

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

11

11035

BELT, TRANSMISSION

ROD ASS'Y - clutch pedal

1шт.

12

48605

X

ADJUSTABLE YOKE END

1шт.

13

48104

PISTON

HEX NUT - reg. S.F. (1/2-20 NF)

1шт.

14

48665

YOKE PIN - SAE standard

1шт.

15

48695

X

COTTER PIN - 1/8 dia. x 1

1шт.

16

30623

KIT

YOKE PIN

1шт.

17

30622

KIT

1шт.

18

48695

X

COTTER PIN - 1/8 dia. x 1

2шт.

19

11469

SPRING

- clutch pedal return

1шт.
