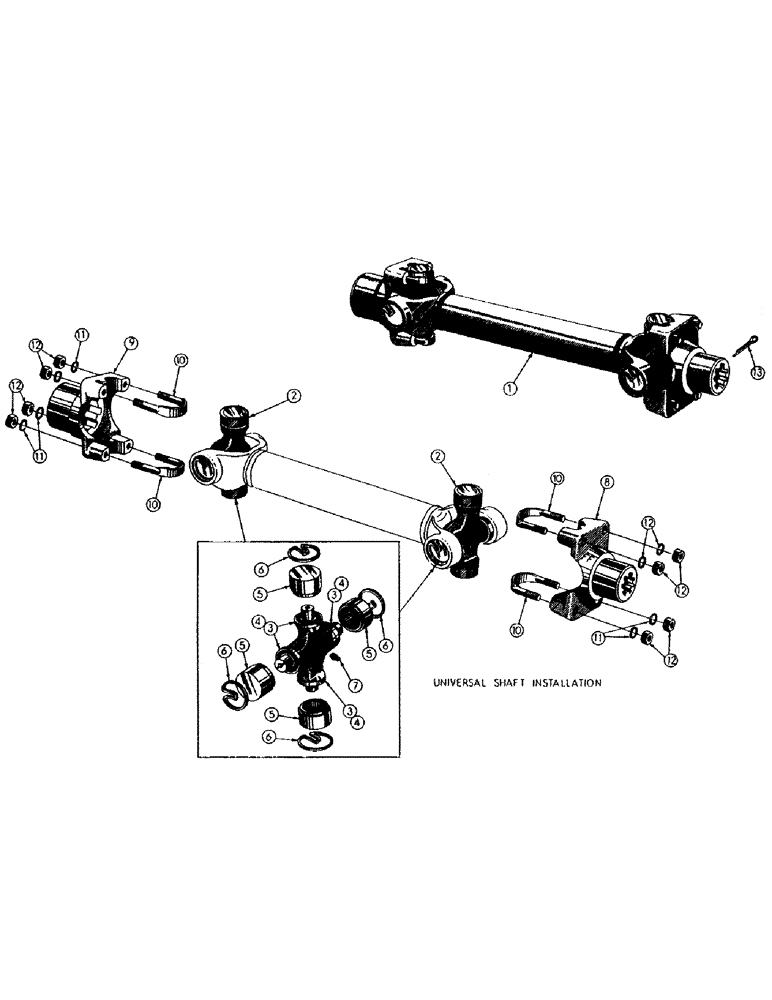

Запчасти Case 300 (040) - UNIVERSAL SHAFT INSTALLATION (03) - TRANSMISSION

1

UNIVERSAL SHAFT INST. - (Inc. ref. #2 thru 12) (GROUP NO. 11250-1)

1шт.

2

JOURNAL & BEARING KIT - (Inc. ref. #3 thru 7) (GROUP NO. 11270)

2шт.

3

11271

RETAINER - journal gasket

4шт.

4

11272

GASKET - journal

4шт.

5

D26203

BEARING CAP

BEARING ASS'Y - journal

4шт.

6

11256

SNAP RING

SNAP RING - journal

4шт.

7

49260

GREASE FITTING - 1/4-28 NF straight

1шт.

8

11259

FORK

END YOKE - rear

1шт.

9

11258

YOKE

END YOKE - front

1шт.

10

11260

"U" - bolt

4шт.

11

48445

LOCKWASHER - med. sec.

8шт.

12

48161

HEX NUT - light S.F.

8шт.

13

132-82

COTTER PIN,5/32" x 3"

COTTER PIN - 5/32 dia. 2-1/2

1шт.
