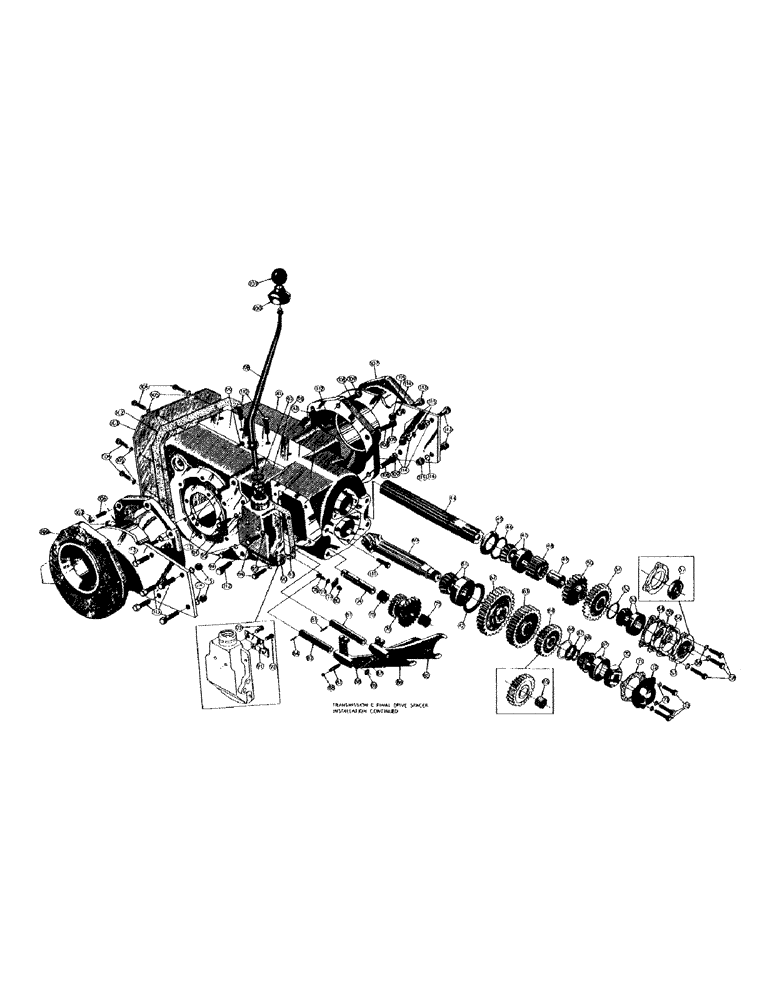

Запчасти Case 300 (008A) - TRANSMISSION & FINAL DRIVE SPACER INST. - PART II (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
41
NLS
NO LONGER SERVICED
TRANSMISSION CASE ASS'Y (Inc. ref. #42)
1шт.
41823
PLUG - trans. case drain & oil level (Not shown)
3шт.
43
41825
PLUG - trans. case filler
1шт.
44
D33873
MAIN SHAFT
1шт.
45
11371
CUP ASSY.
OIL CUP - M/S rear bearing
1шт.
47
11449
X
BEARING ASS'Y - M/S rear
1шт.
48
CAS11363
PINION
GEAR - M/S low & reverse
1шт.
49
35130
SPACER
- M/S gear
1шт.
50
11365
GEAR
- M/S 2nd speed
1шт.
51
11366
GEAR
- M/S constant mesh
1шт.
52
11452
X
SNAP RING - M/S
1шт.
53
11449
X
BEARING ASS'Y - M/S front
1шт.
54
51200023
GASKET
- M/S front bearing cap
1шт.
55
11367
SHIM
- M/S front bearing
1шт.
56
11368
SHIM
- M/S front bearing
1шт.
57
11369
X
CAP & OIL SEAL ASS'Y - (Inc. ref. #59)
1шт.
58
23016
CAP
HHCS & LOCKWASHER - (3/8-16 NC x 1)
3шт.
59
11370
OIL RESERVOIR
OIL SEAL - M/S front bearing
1шт.
60
R25584
GEAR WHEEL
COUNTERSHAFT & BEVEL PINION
1шт.
61
2973202
TAPERED BEARING
BEARING ASS'Y - C/S rear
1шт.
62
NLS
NO LONGER SERVICED
- C/S 1st & reverse
1шт.
63
11374
GEAR
- sliding 2nd & 3rd
1шт.
63
11374GV
DISC
- sliding 2nd & 3rd
1шт.
64
11375
GEAR
3RD GEAR & BUSHING ASS'Y - (Inc. ref. #65)
1шт.
65
11376
BUSHING
- C/S 3rd gear
1шт.
66
101-21250
SNAP RING,#250, 2.673", Int
- C/S front bearing
1шт.
67
11378
BELLEVILLE WASHER
RETAINING WASHER - C/S 3rd gear
1шт.
68
11377
X
SPRING WASHER - C/S 3rd gear retaining
1шт.
69
11448
TAPERED BEARING
BEARING ASS'Y - C/S front
1шт.
70
11380
NUT
ADJUSTING NUT - C/S front bearing
1шт.
71
51200023
GASKET
- C/S front bearing cap
1шт.
72
11381
CAP
- C/S front bearing
1шт.
73
CAS11447
BOLT
HHCS & LOCKWASHER
3шт.
74
34592
SHAFT
ASS'Y - reverse idler (Inc. ref. #80)
1шт.
75
11450
TAPERED BEARING
BEARING - reverse idler
2шт.
76
NLS
NO LONGER SERVICED
GEAR - reverse idler
1шт.
77
11385
LOCK ASSY
LOCK - reverse idler shaft
1шт.
78
45053
X
LOCK SCREW - reverse idler shaft (3/8-16 NC x 5/8)
1шт.
79
48526
X
LOCKWASHER - reverse idler shaft
1шт.
80
34594
X
SPECIAL PIPE PLUG - reverse idler shaft
1шт.
81
11396
ROD
SHIFT ROD - 1st & reverse
1шт.
83
11398
PIN
LOCK PIN - shift rod short
1шт.
84
11399
PIN
LOCK PIN - shift rod long
1шт.
85
11400
FORK TEDDER
SHIFT FORK - 1st & reverse
1шт.
86
NLS
NO LONGER SERVICED
SHIFT FORK - 2nd & 3rd
1шт.
87
11403
SPRING
- mesh lock
2шт.
88
2973188
BEARING
BALL - mesh lock
2шт.
90
11387
BALL BEARING
CONTROL COVER & GUIDE ASS'Y (Inc. ref. #91 & 92)
1шт.
91
11389
PLATE
GUIDE PLATE
1шт.
92
11390
X
RIVET - shift lever guide plate
2шт.
93
11391
GASKET
- control, Serial Range: cover-case
1шт.
94
45055
X
HHCS - 3/8-16 NC X 7/8
4шт.
95
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
96
CAS11393
WASHER
PIVOT WASHER - gear shift lever
1шт.
97
11454
RING, SNAP
SNAP RING - gear shift lever
1шт.
98
35129
GEAR SHIFT LEVER
1шт.
99
31365
PIN
STAKE PIN - gear shift lever
1шт.
100
11394
X
DUST GEAR - gear shift lever
1шт.
101
11395
X
KNOB - gear shift lever
1шт.
102
11429
GASKET
- diff. housing cover plate
1шт.
103
D21185
PLATE
COVER PLATE - diff. housing
1шт.
104
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
HHCS - 7/16-14 NC x 1-1/4 (32258 mt'g)
11шт.
105
48447
X
LOCKWASHER - med. sec.
11шт.
106
11966
X
FINAL DRIVE SPACER ASS'Y - RH
1шт.
107
NLS
NO LONGER SERVICED
FINAL DRIVE SPACER ASS'Y - LH
1шт.
32369
SEAL
- flange to transmission (Not shown)
2шт.
108
46505
STUD
- 9/16 x 2-1/2 (11350 mt'g)
12шт.
109
11933
GASKET
HI NUT - Gripco
12шт.
110
45131
HHCS - 9/16-12 NC x 1 top plug
4шт.
111
280319
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5, Full Thd
HHCS - 5/8-11 NC x 1-1/4 front plug
1шт.
113
45759
X
HHCS - 5/8-18 NF x 1-3/4 (11966 &11967 mt'g)
8шт.
114
492-11062
BEARING WASHER,5/8"
LOCKWASHER - med. sec.
8шт.
115
48106
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
HEX NUT - reg S.F
8шт.
100-1387
SNAP RING,#87, Ext
"O" RING SEAL - F/D outer flange (Not shown)
2шт.
Выбрано товаров: 79
