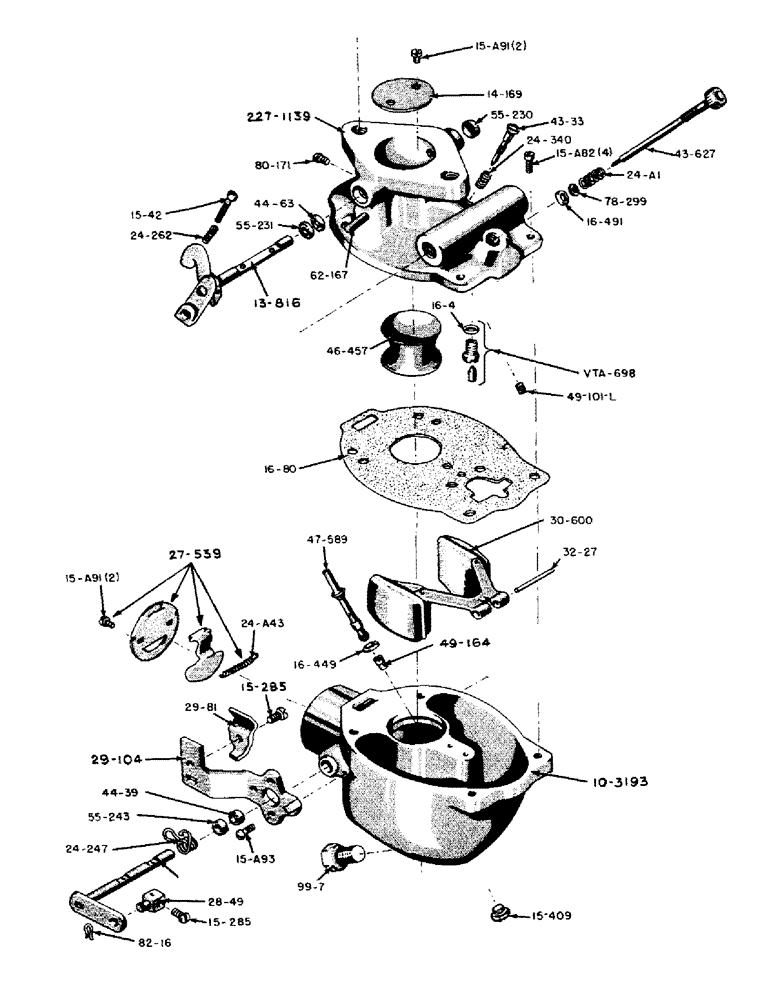

Запчасти Case 300 (145) - 34005 MARVEL-SCHEBLER CARBURETOR (TSX338) (02) - FUEL SYSTEM

10-3193

CARBURETOR BODY ASSEMBLY

1шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

THROTTLE SHAFT - throttle stop and lever assembly

1шт.

Part of P/N 5013 Repair Kit

1шт.

14-169

FLY - throttle

1шт.

15-42

SCREW - throttle stop

1шт.

15-285

SCREW - choker swivel and choker bracket

2шт.

15-A82

SCREW - throttle, Serial Range: body-bowl

4шт.

15-A91

SCREW - choker fly and throttle fly

4шт.

Part of P/N 5013 Repair Kit

1шт.

15-A93

SCREW - choker bracket

1шт.

15-409

SCREW - nozzle hole

1шт.

16-4

GASKET - float valve seat

1шт.

Part of P/N VTA690 Gasket Kit

1шт.

16-80

CARRIER

GASKET - throttle, Serial Range: body-bowl

1шт.

Part of P/N VTA690 Gasket Kit

1шт.

16-449

GASKET - main nozzle

1шт.

Part of P/N VTA690 Gasket Kit

1шт.

16-491

GASKET - high speed needle

1шт.

Part of P/N VTA690 Gasket Kit

1шт.

24-247

SPRING - choker return

1шт.

Part of P/N 5013 Repair Kit

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-340

SPRING - idle needle

1шт.

Part of P/N 5013 Repair Kit

1шт.

24-A1

SPRING - high speed needle

1шт.

24-A43

SPRING - choker fly flapper

1шт.

26-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

CHOKER SHAFT AND LEVER ASSEMBLY

1шт.

27-539

CHOKER FLY ASSEMBLY

1шт.

28-49

SWIVEL - choker

1шт.

29-81

CLIP - choker bracket

1шт.

29-104

BRACKET - choker

1шт.

29-528

BRACKET - choker assembly

1шт.

30-600

FLOAT AND LEVER ASSEMBLY

1шт.

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

SHAFT - float lever

1шт.

Part of P/N 5013 Repair Kit

1шт.

43-33

NEEDLE - idler adjustment

1шт.

Part of P/N 5013 Repair Kit

1шт.

43-627

NEEDLE - high speed

1шт.

44-39

PACKING - choker shaft

1шт.

Part of P/N 5013 Repair Kit

1шт.

44-63

PACKING - throttle shaft

1шт.

46-457

VENTURI

1шт.

47-589

NOZZLE

1шт.

49-101L

JET - idle

1шт.

Part of P/N 5013 Repair Kit

1шт.

49-164

JET - power

1шт.

Part of P/N 5013 Repair Kit

1шт.

49-264

JET - economizer

1шт.

Part of P/N 5013 Repair Kit

1шт.

55-230

CUP - throttle shaft

1шт.

Part of P/N 5013 Repair Kit

1шт.

55-231

RETAINER - throttle shaft packing

1шт.

Part of P/N 5013 Repair Kit

1шт.

55-243

RETAINER - choke shaft packing

1шт.

Part of P/N 5013 Repair Kit

1шт.

62-167

PIN - throttle stop

1шт.

78-299

WASHER - plain, high speed needle

1шт.

80-171

PLUG - idle drilling

1шт.

82-16

COTTER PIN - choker swivel

1шт.

99-7

PLUG - bowl drain

1шт.

227-1139

BODY - throttle assembly

1шт.

5013

KIT

REPAIR KIT - (286-903), Includes: P/N 13-816, 15-A91, 24-247, 24-340, 32-27, 43-33, 44-39, 49-101L, 49-164, 49-264, 55-230, 55-231, 55-243, VTA690 and VTA698

1шт.

34005

WINDSHIELD WIPER

CARBURETOR - Marvel-Schebler TSX338

1шт.

VTA690

X

GASKET KIT, Includes: P/N 16-4, 16-80, 16-449 and 16-491

1шт.

Part of P/N 5013 Repair Kit

1шт.

VTA698

X

FLOAT VALVE - seat, and gasket assembly

1шт.
