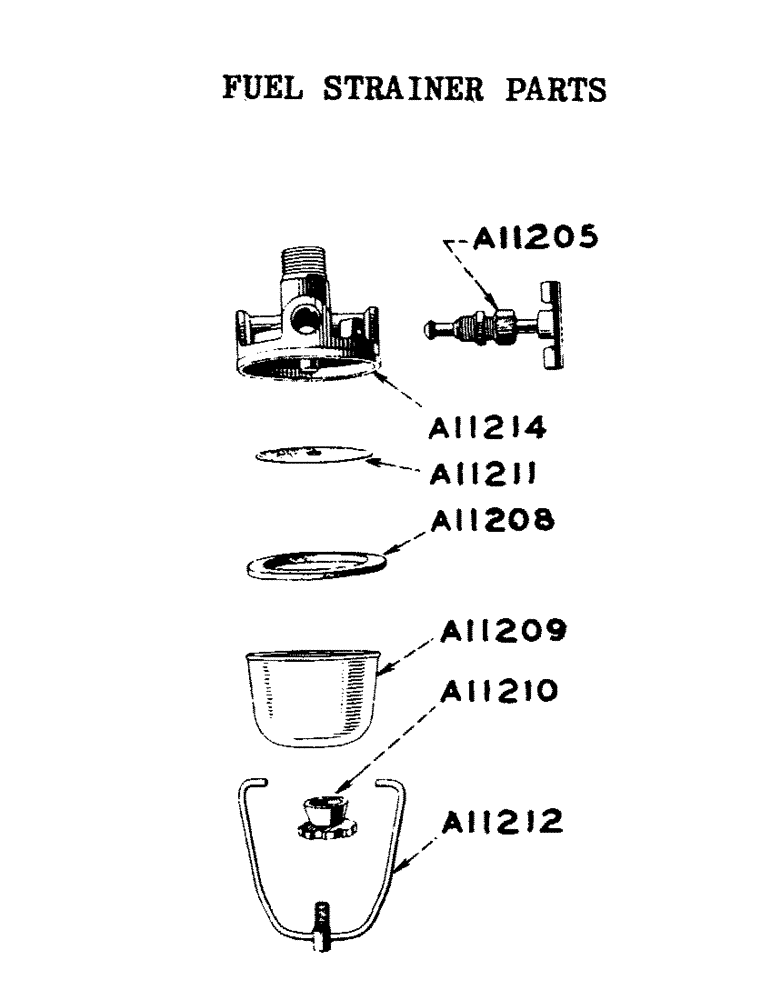

Запчасти Case 300 (143) - FUEL STRAINER PARTS (02) - FUEL SYSTEM

A11205

VALVE

- shut off

1шт.

A11208

GASKET

- bowl

1шт.

A11209

BOWL

- glass (See A11213)

1шт.

A11210

ADJUSTER

CUP AND NUT - bail

1шт.

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

A11212

BAIL

- bowl

1шт.

A11213

BOWL - metal (See A11209)

1шт.

A11214

HEAD

1шт.

Repairs parts for 30455 generator Auto-Lite no. GHD6001SS and starting motor 10010 Auto-Lite no. MZ4156 are not handled by J.I. Case Company. Parts for these units can be obtained from an authorized Auto-Lite Service Station.

1шт.

T14011

ELEMENT

- for 31543 breather

1шт.

5949

FUEL TANK

SET OF PISTON RINGS - complete set of 2-in-1 chrome rings, service kits for model "356" crawler tractor

1шт.

5951

X

BEARING KIT - set of connecting rod bearing liners Consists of 4 - 10211 bearings and 4 - 10212 bearings., service kits for model "356" crawler tractor

1шт.

5953

X

BEARING KIT - set of main bearing liners. Consists of 10181 front - 10182 center, 10183 rear bearing liners and 2 - 10165 thrust washers, service kits for model "356" crawler tractor

1шт.

5959

WRIST PIN KIT - set of 4 - 34015 piston pins with snap rings, service kits for model "356" crawler trator

1шт.

5962

KIT

GASKET SET - valve grind job Consists of 2 - 10356 valve chamber cover nut gaskets, 1-10356 valve chamber cover nut gaskets, 1-10357 valve chamber gasket., 1-10455 manifold gasket., 1-10553 water outlet gasket., 1-34017 head gasket.

1шт.

5971

BOLT,Hex, 1" - 8 x 6 3/8", Gr 5

KIT - oil pump repair Consists of 1-10388 drive gear, 1-3095 body gasket, 1-10390 drive gear, 1-10397 strainer gasket, 1-10391 idler gear, 1-48753 Woodruff key, 1-10385 shaft, 1-10400 pin, 1-10392 stud idler gear, 1-10386 snap ring

1шт.

5973

KIT - set of cam shaft bushings Consists of 10062 front, 10063 center, and 10064 rear bushings., service kits for model "356" crawler tractor

1шт.

5982

SNAP RING

EX. VALVE KIT - Consists of 4-10332 valves and 4-10337 locks, service kits for model "356" crawler tractor

1шт.

5984

KIT

IN. VALVE KIT - Consists of 4-10331 valves and 4-10337 locks, service kits for model "356" crawler tractor

1шт.

5992

BEARING

KIT - set of intake and exhaust valve guides Consists of 8-10334 valve guides., service kits for model "356" crawler tractor

1шт.

6004

HORN

1шт.

ENGINE - special replacement "S" short engine assembly Consists of cylinder assembly complete with oil pan, oil pump, cylinder head, gear cover, all bearings, bearing caps, pistons, piston rings, valve mechanism, connecting rods, crankshaft, camshaft, crank gear, cam gear, and front end plate.

1шт.

10949

CAP

RAIN CAP - for tractors equipped with mufflers, service kits for model "356" crawler tractor

1шт.

10954

MUFFLER - exhaust, service kits for model "356" crawler tractor

1шт.
