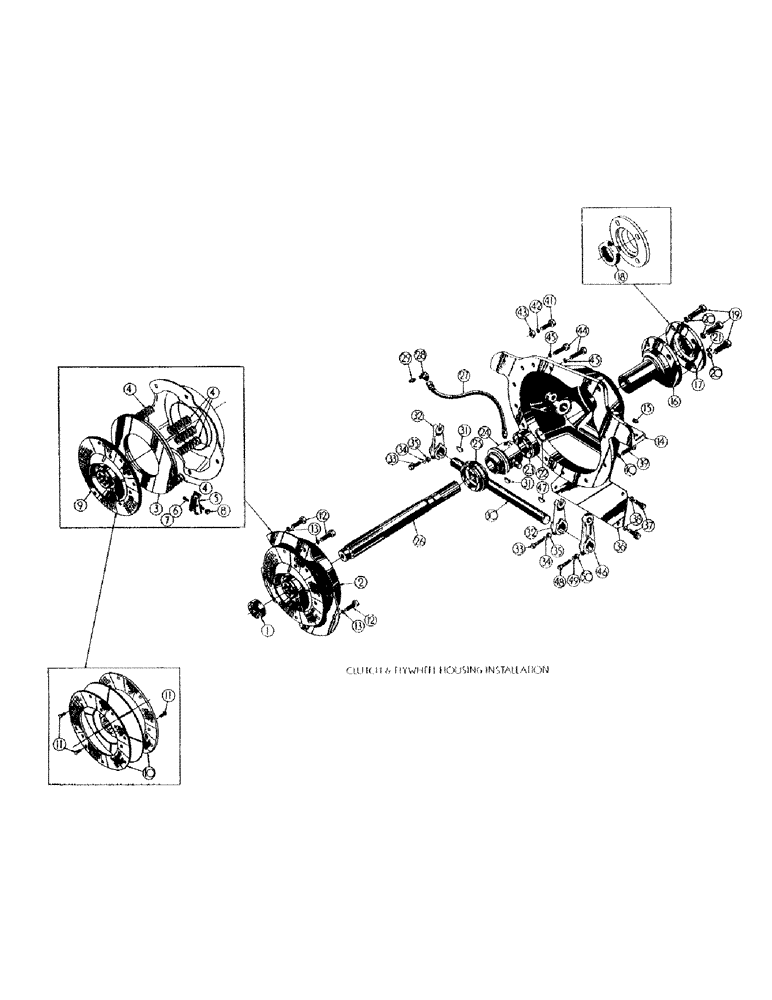

Запчасти Case 300 (037) - CLUTCH & FLYWHEEL HOUSING INST. (01) - ENGINE

1

40000

PILOT BEARING

1шт.

2

CLUTCH ASS'Y - (Inc. ref. #3 thru 11) (GROUP NO. 31042)

1шт.

3

31003

PIN

PRESSURE PLATE

1шт.

4

31004

SPRING

PRESSURE SPRING

9шт.

5

31006

X

LEVER ASS'Y

3шт.

6

31005

LEVER PIN

3шт.

7

48682

X

COTTER PIN - 3/32 dia. x 5/8

3шт.

8

11008

NUT - lever mt'g

3шт.

9

CLUTCH PLATE ASS'Y - (Inc. ref. #10 & 11) (GROUP NO. 31022)

1шт.

10

31032

FACING - clutch

2шт.

11

NLS

NO LONGER SERVICED

TUBULAR RIVET

20шт.

12

46951

LINE

HHCS - 3/8-16 NC x 1 special (31042 mt'g)

6шт.

13

48445

LOCKWASHER - med. sec.

6шт.

CLUTCH & FLYWHEEL HSG. INST. - (Inc. ref. #14 thru 38) (GROUP NO. 11026)

1шт.

14

30541

CLUTCH & FLYWHEEL HSG.

1шт.

15

49275

GREASE FITTING - straight 1/4 drive

2шт.

16

A29911

SPINDLE

SPINDLE - clutch throwout

1шт.

17

36697

RETAINER ASS'Y - spindle (Inc. ref. #18)

1шт.

18

40600

OIL SEAL

1шт.

19

45058

X

HHCS - 3/8-16 NC x 1-1/2 & 30542 mt'g)

4шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

21

49200

X

GREASE FITTING - straight 1/8 NP

1шт.

22

31024

X

SNAP RING

1шт.

23

40281

CARRIER

BALL BEARING ASS'Y

1шт.

24

11043

CARRIER

- throwout bearing

1шт.

25

40500

BEARING, BALL

THROWOUT BEARING ASS'Y

1шт.

26

31028

DRIVE SHAFT - clutch

1шт.

27

51040-12

HOSE ASS'Y - throwout bearing lube

1шт.

28

50464

X

MALE ELBOW 90 DEGREES - 1/8 NP to 1/4 SAE

1шт.

29

49200

X

GREASE FITTING - straight 1/8 NP

1шт.

30

11038

CROSS SHAFT - clutch

1шт.

31

48762

X

WOODRUFF KEY

2шт.

31

11039

LEVER

- br'g carrier operating

2шт.

33

45660

HHCS - 3/8-24 NF x 2 (11039 mt'g)

2шт.

34

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

35

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

36

30544

COVER - clutch housing

1шт.

37

45027

HHCS - 5/16-18 NC x 1/2 (30544 mtg)

4шт.

38

48445

LOCKWASHER - med. sec.

4шт.

39

45058

X

HHCS - 3/8-16 NC x 1-1/2 (11026 mt'g)

5шт.

40

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

41

45658

HHCS - 3/8-24 NF x 1-1/2 (11026 mt'g)

3шт.

42

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

43

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

3шт.

44

45083

X

HHCS - 7/16-14 NC x 1-1/2 (11026 mt'g)

2шт.

45

48447

X

LOCKWASHER - med. sec.

2шт.

46

11037

BELT, TRANSMISSION

OUTSIDE LEVER - cross shaft operating

1шт.

47

48762

X

WOODRUFF KEY

1шт.

48

45660

HHCS - 3/8-24 NF x 2 (11037 mt'g)

1шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

50

48102

MOUNTING PARTS

HEX NUT - reg. S.F

1шт.
