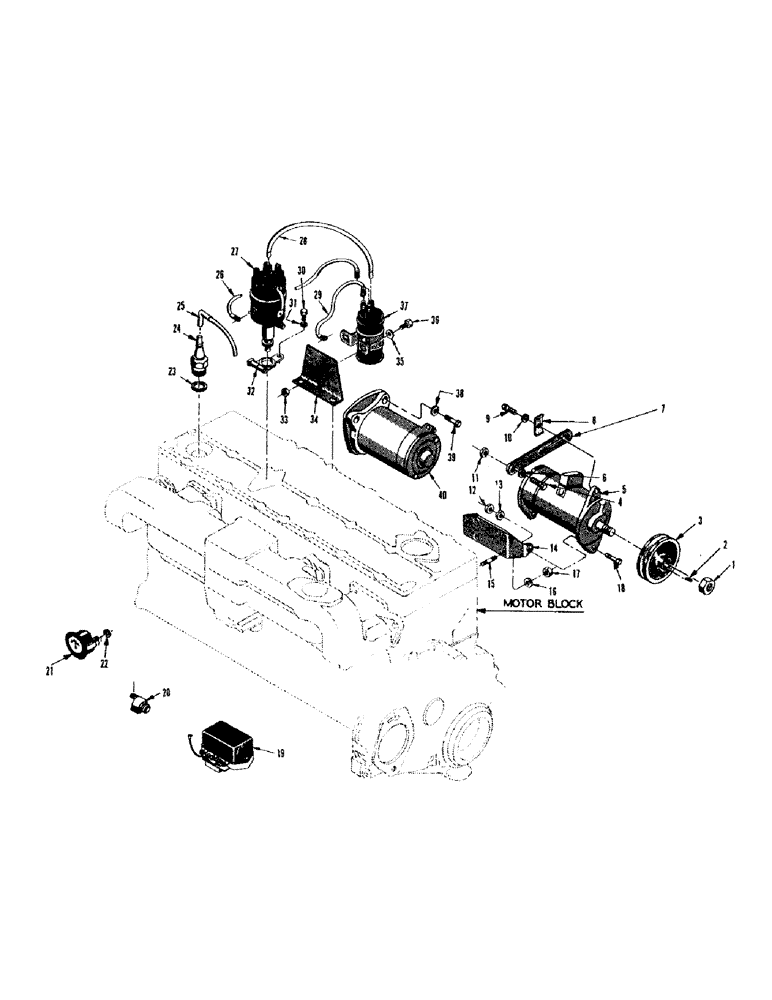

Запчасти Case 300 (035) - GASOLINE ENGINE INST. - PART IX - ELECTRICAL PARTS GROUP (01) - ENGINE
№
Артикул
Название
Примечание
Количество
GASOLINE ENGINE INST. - part IX (GROUP NO. 30431)
1шт.
1
RESERVED
1шт.
2
RESERVED
1шт.
3
30454
PULLEY - generator
1шт.
4
45056
X
HHCS - 3/8-16 NC x 1 (Adj., Serial Range: strap-W.P.)
1шт.
5
30455
X
GENEARATOR ASS'Y - (Inc. part #10019)
1шт.
10019
X
VOLTAGE REGULATOR ASS'Y
1шт.
6
80680
LOCK WASHER,3/8 0.381 CST ZND
1шт.
7
30461
CONNECTION
ADJUSTING STRAP - generator
1шт.
8
30360
CLIP - gen. adjusting strap
1шт.
9
45031
X
HHCS - 5/16-18 NC x 1 (30461 mt'g)
1шт.
10
48465
BUSHING
LOCKWASHER - heavy sec.
1шт.
11
30438
X
HEX NUT - (3/8-16 NC)
1шт.
12
30362
PALNUT - 5/16
2шт.
13
48161
HEX NUT - light S.F.
2шт.
14
10027
BRACKET - generator
1шт.
15
10075
VALVE
STUD 0- 3/8-16 NC x 1-1/4 (10027 mt'g)
4шт.
16
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
17
30438
X
HEX NUT - (3/8-16 NC)
4шт.
18
10033
SCREW - 5/16-24 NF x 1-1/8 (30455 mt'g)
2шт.
19
RESERVED - (See ref. #5)
1шт.
20
NLS
NO LONGER SERVICED
PUSH BUTTON STARTER SWITCH - (See cowl & dash)(10864)
1шт.
21
10860
X
AMMETER ASS'Y - (See cowl & dash) (Incl. ref. #22)
1шт.
22
10859
TAB SPRING
INSULATION WASHER - (See cowl & dash)
2шт.
23
RESERVED
1шт.
24
10008
X
SPARK PLUG
4шт.
10099
WASHER
SPARK PLUG -, Serial Range: (Optional-10008)
4шт.
25
10040
CABLE - dist. to spark plug long
2шт.
10041
O-RING
CABLE - dist. to sprak plug short
2шт.
26
10009
WIRE ASS'Y -, Serial Range: dist.-coil
1шт.
27
10012
DISTRIBUTOR ASS'Y
1шт.
29
10018
WIRE ASS'Y -, Serial Range: coil-support
1шт.
30
45003
X
HHCS - 1/4-20 NC x 5/8 (10580 mt'g)
1шт.
31
48444
GUIDE
LOCKWASHER - med. sec.
1шт.
32
A10580
TOOL
ADVANCE ARM ASS'Y - distributor
1шт.
33
47860
HEX NUT - (1/4-20 NC)
2шт.
34
10034
SUPPORT ASS'Y - coil
1шт.
35
48404
X
PLAINWASHER
2шт.
36
45002
X
HHCS - 1/4-20 NC x 1/2 (10007 mt'g)
2шт.
37
10007
IGNITION COIL ASS'Y
1шт.
38
48487
X
LOCKWASHER
2шт.
39
45080
HHCS - 7/16-14 NC x 7/8
2шт.
40
10010
STARTER ASS'Y
1шт.
Выбрано товаров: 44
