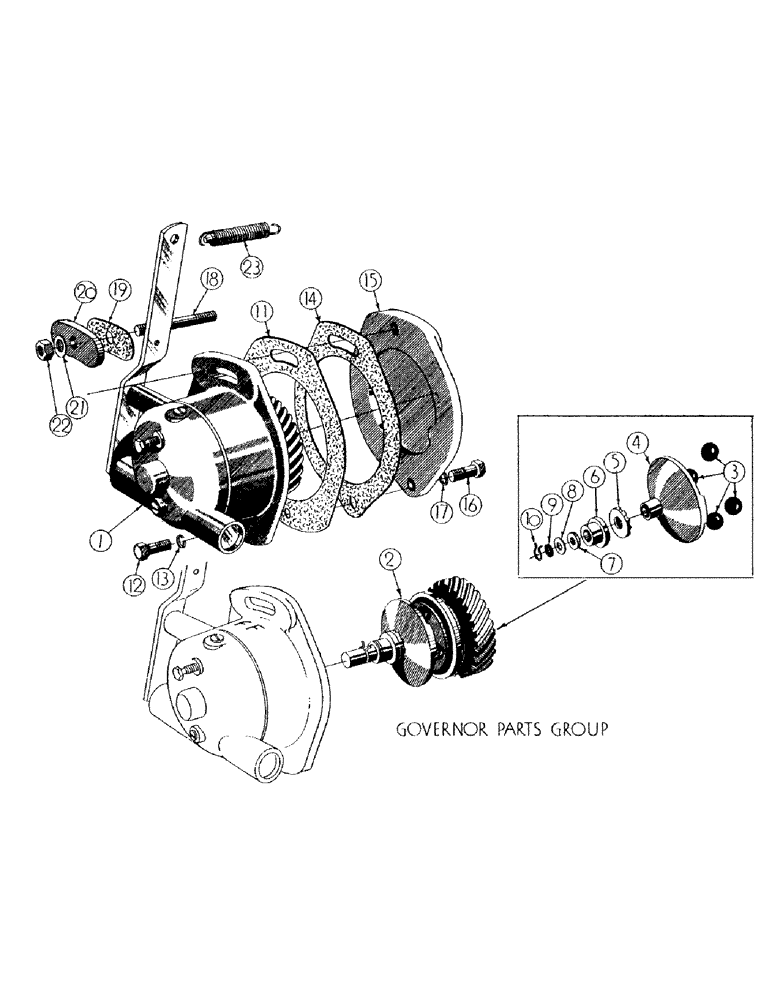

Запчасти Case 300 (031) - GASOLINE ENGINE INST. - PART VII - GOVERNOR PARTS GROUP (01) - ENGINE

GASOLINE ENGINE INST. - part VII (GROUP NO. 30431)

1шт.

1

GOVERNOR ASS'Y - (Inc. ref. #2 thru 10) (GROUP NO. 10456)

1шт.

2

10458

SEALING RING

WORKS ASS'Y - governor (Inc. ref. #3 thru 10)

1шт.

3

211-17

BALL,3/4" Dia

- governor 3/4 dia.

4шт.

4

10465

SEALING RING COLLAR

RACE - upper governor

1шт.

5

10466

BEARING - thrust

1шт.

6

10467

SEALING RING COLLAR

BASE - governor lever fork

1шт.

7

10468

THRUST WASHER - lever fork base

1шт.

8

10469

THRUST WASHER - lever fork base

1шт.

9

10472

SEALING RING COLLAR

PLATE - thrust

1шт.

10

10470

CLIP - gov. works retaining

1шт.

11

10480

GASKET - governor to gear cover

1шт.

12

10295

BUSHING

SCREW - 3/8-16 NC x 1-1/8 (10456 mt'g)

1шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

14

10324

X

GASKET - mag. hole cover to gear cover

1шт.

15

10321

COVER - magneto drive hole

1шт.

16

10323

HHCS - 3/8-16 NC x 1-3/8 (10321 mt'g)

1шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

18

10322

STUD - 3/8-16 NC x 3-7/8 (10321 & 10456 mt'g)

1шт.

19

10482

BUSHING

GASKET - governor flange

1шт.

20

10481

PLATE - governor flange gasket

1шт.

21

10498

FLANGE

COPPER WASHER

1шт.

22

30438

X

HEX NUT - reg. S.F. (3/8-16 NC)

1шт.

23

10022

SPRING

GOVERNOR SPRING ASS'Y

1шт.
