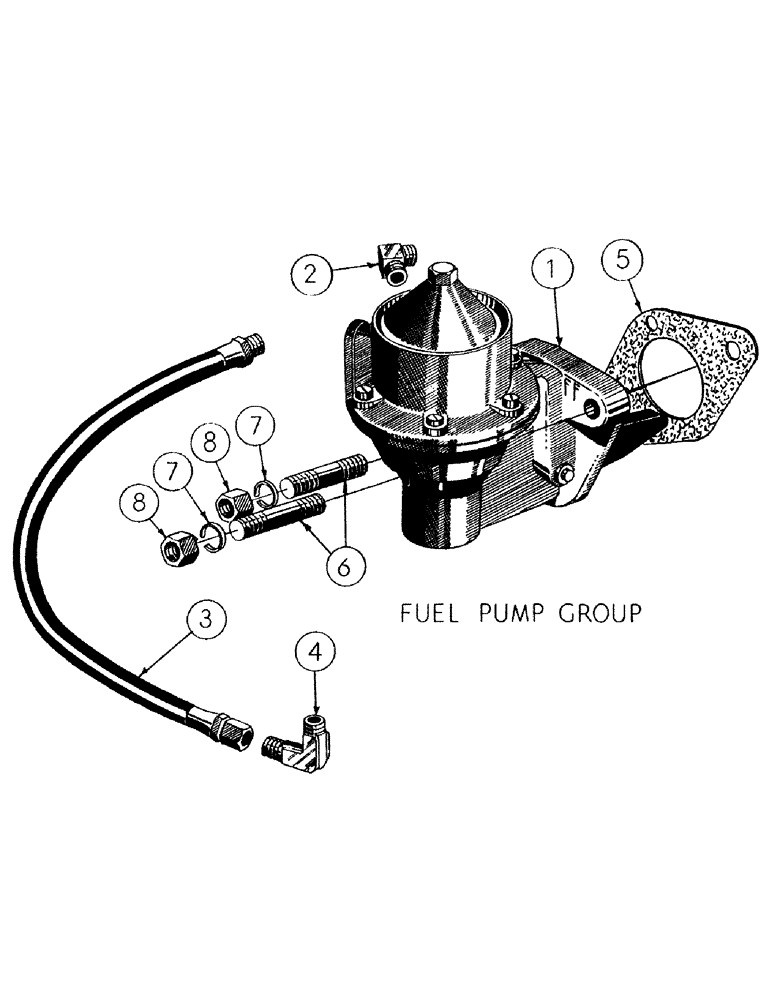

Запчасти Case 300 (027) - GASOLINE ENGINE INST. - PART V - FUEL PUMP PARTS GROUP (01) - ENGINE

GASOLINE ENGINE INST. - part V (GROUP NO. 30431)

1шт.

1

10023

FUEL PUMP ASS'Y

1шт.

2

34008

ELBOW - 90 degrees 5/16-20 to 1/8 NP

1шт.

3

10026

HOSE ASS'Y - fuel, Serial Range: pump-carburetor

1шт.

4

50464

X

STREET ELBOW 90 DEGREE - carb. inlet 1/8 NP

1шт.

5

10123

GASKET - fuel pump

1шт.

6

31173

STUD - 5/16-18 NC x 1-1/2 (10023 mt'g)

2шт.

7

92-6

LOCK WASHER,3/8"

LOCKWASHER - heavy sec.

2шт.

8

47861

KNOB

HEX NUT - light S.F. (5/16-18 NC)

2шт.
