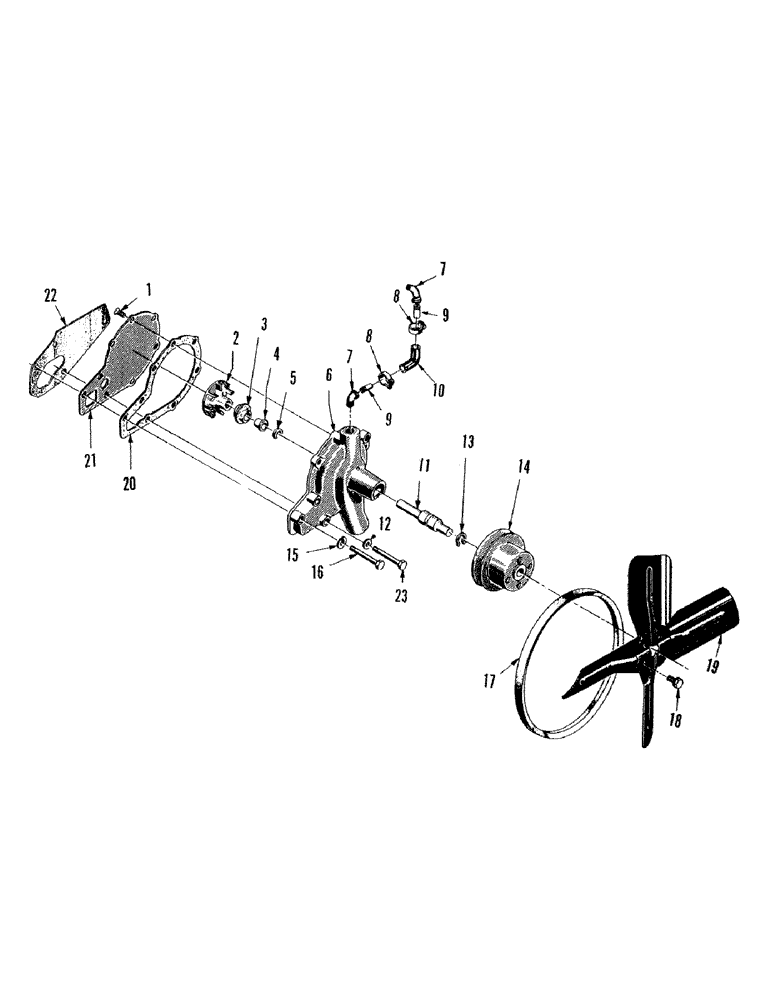

Запчасти Case 300 (025) - GASOLINE ENGINE INST. - PART IV - WATER PUMP PARTS GROUP (01) - ENGINE

GASOLINE ENGINE INST. - part IV (GROUP NO. 30431)

1шт.

WATER PUMP ASS'Y - complete (Inc. ref. #1 thru 6, 11, 13, 14, 20, & 21) (GROUP NO. 34003)

1шт.

1

10506

SCREW -, Serial Range: cover-body

4шт.

2

10502

IMPELLER - water pump

1шт.

3

10503

SEAL ASSY.

SEAL

1шт.

4

10505

SWITCH

WATER SHEDDER

1шт.

5

10509

RING, LOCKING

BEARING SEAT RING

1шт.

6

10514

BODY - water pump

1шт.

7

41672

STREET ELBOW - 3/8 NP

2шт.

8

10615

OLIVE

HOSE CLAMP

2шт.

9

10628

NUT

PIPE NIPPLE - 3/8 NP

2шт.

10

10589

OLIVE

HOSE - W/P to water outlet elbow

1шт.

11

10501

FLANGE

SHAFT - water pump

1шт.

12

10298

COPPER WASHER

COPPER WASHER

1шт.

13

10504

GASKET

RETAINER

1шт.

14

10592

FITTING

FAN HUB

1шт.

15

492-11038

LOCK WASHER,3/8"

LOCKWASHER - med. sec.

3шт.

16

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

HHCS - 3/8-16 NC x 2-1/4

2шт.

17

30460

FAN DRIVE BELT

1шт.

18

10314

LINING

SCREW & LOCKWASHER ASS'Y

4шт.

19

A173040

FAN

ASS'Y

1шт.

20

10508

GASKET - water pump cover

1шт.

21

10507

GASKET

COVER - water pump

1шт.

22

10590

WRENCH-HOOK

GASKET - W/P to cyl block

1шт.

23

36596

SCREW

2шт.
