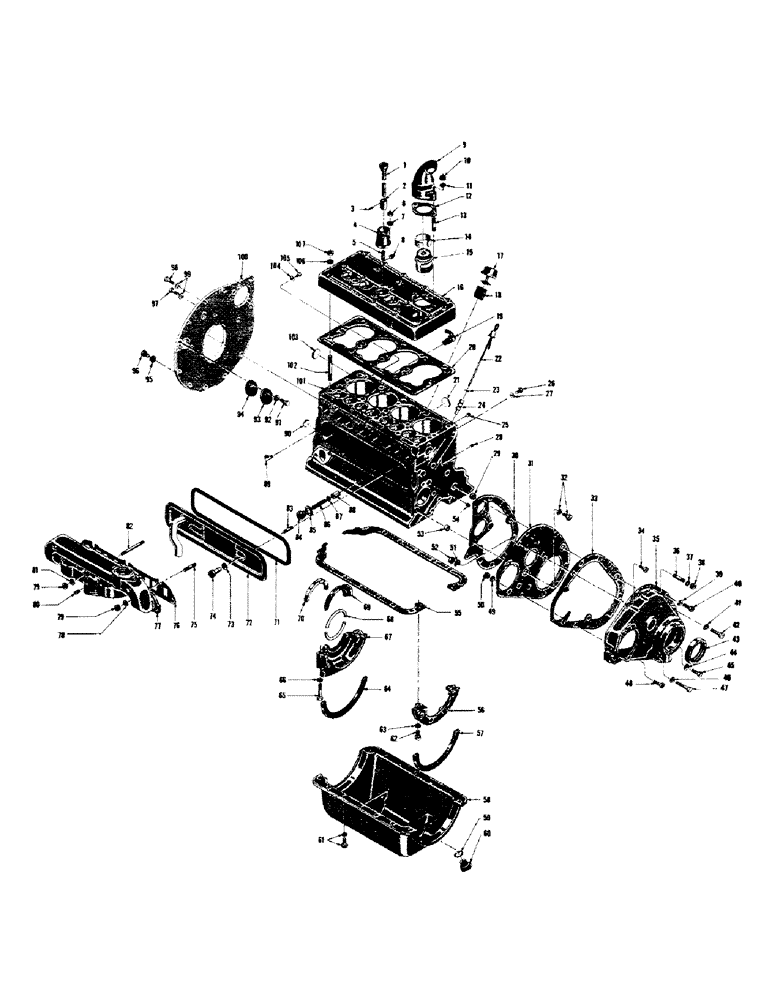

Запчасти Case 300 (015) - GASOLINE ENGINE INST. - PART I - EXTERNAL PARTS GROUP (01) - ENGINE

GAS ENGINE INST. - part I (GROUP NO. 30431)

1шт.

1

10572

SHAFT - distributor drive

1шт.

2

10573

FITTING

COUPLING - distributor drive

1шт.

3

10574

PIPE FITTING

PIN - drive coupling

1шт.

4

10571

FITTING

ADAPTER - distributor

1шт.

5

10077

X

STUD - 3/8-16 NC x 1-3/8 (10571 mt'g)

1шт.

6

30438

X

HEX NUT - (3/8-16 NC) (10571 mt'g)

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

(10571 mt'g) 3/8"

1шт.

8

41838

PIPE PLUG - cts'k head 1/2 NP

1шт.

9

10550

ASSEMBLY

ELBOW - cylinder water outlet

1шт.

10

47861

KNOB

HEX NUT - (5/16-18 NC) (10550 mt'g)

2шт.

11

92-6

LOCK WASHER,3/8"

LOCKWASHER - (10550 mt'g)

2шт.

12

10553

GASKET

- water outlet elbow

1шт.

13

10082

STUD - 5/16-18 NC x 2-1/8 (10550 mt'g)

2шт.

14

NLS

NO LONGER SERVICED

ADAPTER RING - thermostat

1шт.

15

10561

FITTING

THERMOSTAT

1шт.

16

34062

SPACER

CYLINDER HEAD

1шт.

17

10406

CAP ASS'Y - oil filler

1шт.

18

30279

CLOSE NIPPLE - oil filler

1шт.

19

10554

X

DRAINCOCK - water

1шт.

20

34017

CABLE

GASKET - cylinder head

1шт.

21

10618

TEE

HUBBARD PLUG

2шт.

22

10411

SEALING RING

OIL GAUGE ROD ASS'Y (Inc. ref. #23)

1шт.

23

10416

FELT - oil gauge rod

1шт.

24

10412

RING

SUPPORT - oil gauge rod

1шт.

25

41821

X

PIPE PLUG - ext. sq. head 1/4 NP

1шт.

26

45053

X

HHCS - 3/8-16 NC x 5/8 (Plugging screw)

3шт.

27

10298

COPPER WASHER

COPPER WASHER

3шт.

28

41820

PIPE PLUG - ext. sq. head 1/8 NP

1шт.

29

10294

BUSHING

RING DOWEL

1шт.

30

10315

GASKET - front end, Serial Range: plate-c'case

1шт.

31

10311

FRONT END PLATE

1шт.

32

45029

X

HHCS - 5/16-18 NC x 3/4 (10311 mt'g)

1шт.

92-6

LOCK WASHER,3/8"

LOCKWASHER - (10311 mt'g)

1шт.

33

10301

GASKET - gear cover to front end

1шт.

34

10299

DOWEL SCREW - (32647 mt'g)

1шт.

35

32647

GEAR COVER ASS'Y - (Inc. ref. #43)

1шт.

36

10089

HEAD

STUD - 3/8-16 NC x 1-11/16 (32647 mt'g)

2шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

38

30438

X

HEX NUT - (3/8-16 NC)

2шт.

39

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

40

10295

BUSHING

HHCS - 3/8-16 NC x 1-1/8 (32647 mt'g)

1шт.

41

48447

X

LOCKWASHER - med. sec.

1шт.

42

45083

X

HHCS - 7/16-14 NC x 1-1/2 (32647 mt'g)

1шт.

43

10972

HOSE,Female, 1.5-2.5 mm2

SEAL - c'shaft oil & dust

1шт.

44

10298

COPPER WASHER

COPPER WASHER

2шт.

45

10295

BUSHING

HHCS - 3/8-16 NC x 1-1/8 (32647 mt'g)

1шт.

46

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

47

45060

X

HHCS - 3/8-16 NC x 2 (32647 mt'g)

3шт.

48

10295

BUSHING

HHCS - 3/8-16 NC x 1-1/8 (32647 mt'g)

1шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

50

30438

X

HEX NUT - (3/8-16 NC)

1шт.

51

48447

X

LOCKWASHER - med. sec.

1шт.

52

47863

SPRING CUP

HEX NUT - (7/16-14 NC)

1шт.

53

10312

FRONT PLATE RING DOWEL

1шт.

54

NLS

NO LONGER SERVICED

PIPE PLUG - special cts'k head 1/4 NP

2шт.

55

10362

NUT

GASKET - oil pan & filler block

2шт.

56

10101

PIN

FILLER BLOCK - front

1шт.

57

10015

CORK SEAL - filler block to oil pan

1шт.

58

32678

OIL PAN ASS'Y - (Inc. ref. #59 & 60)

1шт.

59

10364

SAW

GASKET - oil pan drain plug

1шт.

60

10363

X

DRAIN PLUG - oil pan

1шт.

61

45029

X

HHCS - 5/16-18 NC x 3/4 (32678 mtg)

14шт.

92-6

LOCK WASHER,3/8"

LOCKWASHER

14шт.

62

10107

SOCKET HD. CAP SCREW - 5/16-18 NC x 7/8 (10101 mt'g)

2шт.

63

48525

X

LOCKWASHER - 5/16 Shakeproof

2шт.

64

10015

CORK SEAL - filler block to oil pan

1шт.

65

10106

SHCS - 5/16-18 NC x 2-5/8 (10105 mt'g)

2шт.

66

48525

X

LOCKWASHER - 5/16 Shakeproof

2шт.

67

10105

PIN

FILLER BLOCK - rear

1шт.

68

86631586

SPACER,9.8mm ID x 12.7mm OD x 16.76mm L

SEAL - rear br'g filler block

2шт.

69

10109

OIL GUARD - rear bearing

1шт.

70

10565

ELEC CONNECTOR,4 Pin

FELT - rear br'g oil guard

1шт.

71

10357

BRACKET

GASKET - valve chamber cover

1шт.

72

10370

MOUNTING PARTS

COVER ASS'Y - valve chamber

1шт.

73

10356

ELBOW

GASKET - copper asbestos

2шт.

74

10355

TUBE ASSY.

VALVE CHAMBER COVER NUT

2шт.

75

10089

HEAD

STUD - 3/8-16 NC x 1-11/16 (10451 mt'g)

6шт.

76

1349067C1

GASKET

- intake & exhaust manifold

1шт.

77

10451

MANIFOLD - intake & exhaust

1шт.

78

11055

X

PLAINWASHER

3шт.

79

10452

SEALING RING

BRASS HEX NUT - (3/8-16 NC)

7шт.

80

41820

PIPE PLUG - ext. sq. head 1/8 NP

1шт.

81

10454

WASHER

PLAINWASHER

4шт.

82

10079

CAPSCREW

STUD - 3/8-16 NC x 3-5/8 (10451 mt'g)

1шт.

83

10073

ELBOW

STUD - 1/4-20 NC x 1-3/8 (10370 mt'g)

2шт.

84

10423

THUMB SCREW

PLUG - oil relief valve

1шт.

85

10424

HARNESS

GASKET - relief valve plug

1шт.

86

A29285

SPRING

SPRING - relief valve

1шт.

87

11057

WASHER - relief spring adjusting

1шт.

88

10421

VALVE - oil pressure relief

1шт.

89

41899

STREET ELBOW - at oil gauge outlet

1шт.

90

172574

PLUG,Exp, 1 1/2"

HUBBARD PLUG - 1-1/2 dia.

1шт.

91

45053

X

HHCS - 3/8-16 NC x 5/8 (10133 mt'g)

1шт.

92

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

93

10133

COVER - flywheel pointer

1шт.

94

10134

FELT - flywheel pointer cover

1шт.

95

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

LOCKWASHER - med. sec.

2шт.

96

45003

X

HHCS - 1/4-20 NC x 5/8 (10020 mt'g)

2шт.

97

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

HHCS - 7/16-14 NC x 1-1/4 (10020 mt'g)

3шт.

98

10037

DOWEL SCREW - 7/16-14 NC x 1-7/16 (10020 mt'g)

2шт.

99

48527

SHIM,.015" Thk

LOCKWASHER - 7/16 Shakeproof

5шт.

100

10020

NUT

REAR END PLATE

1шт.

101

36546

CYLINDER & C'CASE ASS'Y

1шт.

102

10078

STUD - 7/16-20 NF x 3-15/32 (34026 mt'g)

15шт.

103

10617

ELBOW

HUBBARD PLUG - 1-1/8 dia.

1шт.

104

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

COPPER WASHER

2шт.

105

45027

HHCS - 5/16-18 NC x 1/2 (Plugging screw)

2шт.

106

10143

NUT

PLAINWASHER

15шт.

107

10142

LARGE PLATE

HEX NUT - (7/16-20 NF)

15шт.
