Запчасти Case 300 (004A) - ENGINE FRAME, TORQUE TUBE, & DRAWBAR INST. (01) - ENGINE

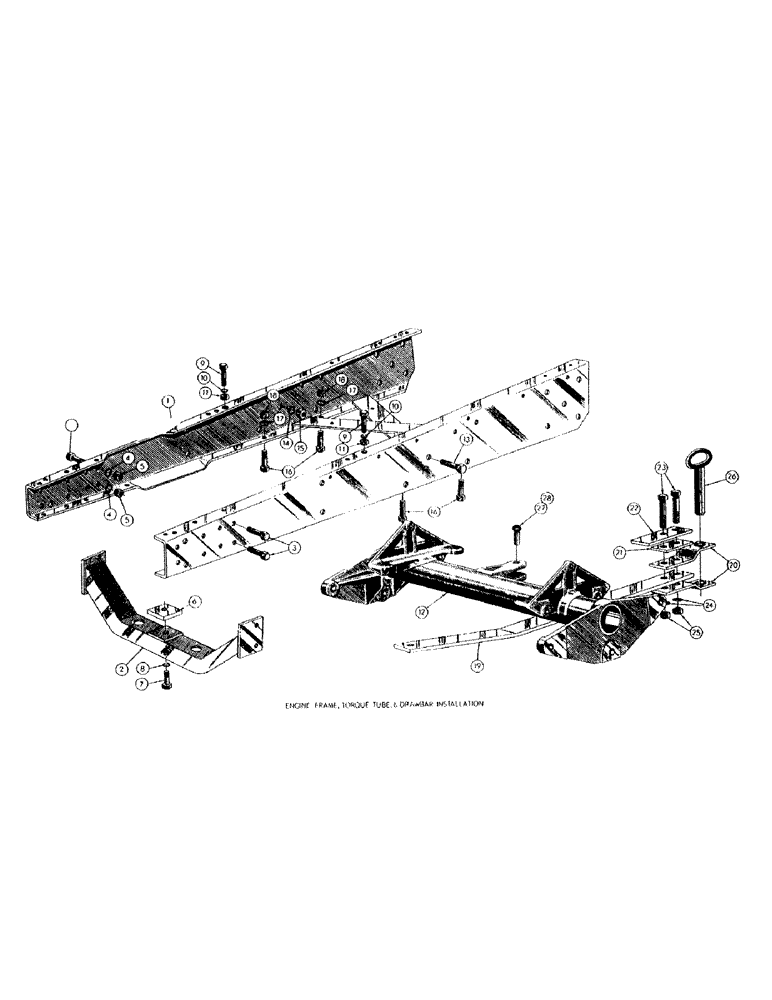

Схема запчастей Case 300 - (004A) - ENGINE FRAME, TORQUE TUBE, & DRAWBAR INST. (01) - ENGINE

Артикул

Название

Примечание

Количество

1

15521

BAR

ENGINE FRAME ASS'Y

1шт.

2

30470

FRONT ENGINE SUPPORT ASS'Y

1шт.

3

45708

X

HHCS - 1/2-20 NF x 1-1/2 (30470 mt'g)

4шт.

4

48448

X

LOCKWASHER - med. sec.

4шт.

5

48104

PISTON

HEX NUT - reg. S.F.

4шт.

6

30474

SPACER - (Engine mt'g)

1шт.

7

45159

X

HHCS - 5/8-11 NC x 1-3/4 (Engine mt'g front)

1шт.

8

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

1шт.

9

45708

X

HHCS - 1/2-20 NF x 1-1/2 (Engine mt'g rear)

2шт.

10

48448

X

LOCKWASHER - med. sec.

2шт.

11

48104

PISTON

HEX NUT - reg. S.F.

2шт.

12

D95063

TUBE

TORQUE TUBE ASS'Y

1шт.

13

45759

X

HHCS - 5/8-18 NF x 1-3/4 (30815 mt'g)

2шт.

14

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

2шт.

15

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. S.F.

2шт.

16

45709

CLIP

HHCS - 1/2-20 NF x 1-3/4 (30815 mt'g)

4шт.

17

48448

X

LOCKWASHER - med. sec.

4шт.

18

48104

PISTON

HEX NUT - reg. S.F.

4шт.

DRAWBAR ASS'Y - (Inc. ref. #19 thru 26) (GROUP NO. 13049)

1шт.

19

13039

BUSHING

DRAWBAR - industrial

1шт.

20

13043

BUSHING

HITCH - drawbar

2шт.

21

NLS

NO LONGER SERVICED

SPACER - hook over

1шт.

22

NLS

NO LONGER SERVICED

HOOK OVER STRAP - drawbar

1шт.

23

45794

HHCS - 3/4-16 NF x 4-1/2 (13043, 13107, 13108 mt,g)

2шт.

24

48452

X

LOCKWASHER - med. sec.

2шт.

25

48107

X

HEX NUT - reg. S.F.

2шт.

26

13073

AXLE PIN

HITCH PIN ASS'Y

1шт.

27

13044

NUT

PIN - (13049 mt'g)

1шт.

28

48739

X

COTTER PIN - 1/4 dia. x 2

1шт.

.

13109

PIN

CRAWBAR ASS'Y - agricultural, Serial Range: (Optional-13049)

1шт.

Выбрано товаров: 30
