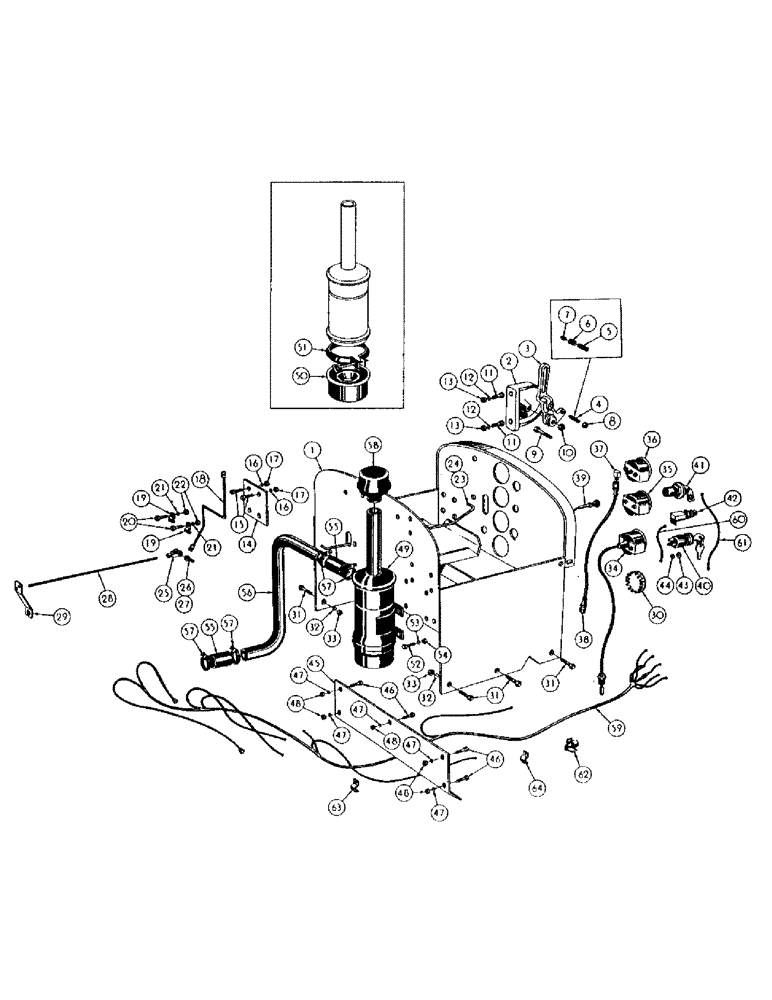

Запчасти Case 256 (024) - COWL & DASH (12) - Chassis/Attachments

1

33669

SCREW

COWL & DASH ASS'Y

1шт.

2

30915

PROTRACTOR

1шт.

3

30916

LEVER - throttle control

1шт.

4

POPPET INST. - (Inc. ref. # 5 thru 7) (Group no. 30920)

1шт.

5

30917

POPPET CONTAINER

1шт.

6

30918

NUT

POPPET SPRING

1шт.

7

30919

POPPET

1шт.

8

48194

X

HEX JAM NUT - reg. S.F. (1/2 - 20 NF)

1шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

HHCS 3/8 - 16 NC x 2-1/4 (30916 mt'g)

1шт.

10

47802

BUTTON

HEX NUT - reg. S.F.

1шт.

11

45657

HHCS 3/8 - 24 NF x 1-1/4 (30915 mt'g)

2шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

13

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

14

30938

SUPPORT PLATE - throttle

1шт.

15

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (30938 mt'g)

2шт.

16

48445

LOCKWASHER - med. sec.

2шт.

17

48101

X

HEX NUT - reg. S.F.

2шт.

18

33941

FITTING

CRANK - throttle

1шт.

19

49788

WINDGUARD

CLAMP (33941 mt'g)

2шт.

20

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

HHCS 1/4 - 28 NF x 3/4 (49788 mt'g),LINE

2шт.

21

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

LOCKWASHER - med. sec.

2шт.

22

48100

HEX NUT - reg. S.F.

2шт.

23

30937

ROD -, Serial Range: throttle-crank

1шт.

24

48693

COTTER PIN - 1/8 dia. x 3/4

2шт.

25

48601

X

ADJUSTABLE YOKE END

1шт.

26

VT2105

X

YOKE PIN - S.A.E. standard

1шт.

27

48674

COTTER PIN - 1/16 dia. x 3/4

1шт.

28

30934

ROD - throttle control

1шт.

29

60659

GUIDE - throttle control rod

1шт.

30

30842

SPARE PART

BUTTON PLUG

1шт.

31

45656

X

HHCS 3/8 - 24 NF x 1 (33669 mt'g)

6шт.

32

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

33

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

6шт.

34

11284

ELECTRICAL GAUGE

HEAT INDICATOR ASS'Y

1шт.

35

10860

X

AMMETER ASS'Y

1шт.

36

NLS

NO LONGER SERVICED

OIL PRESSURE GAUGE ASS'Y

1шт.

37

50476

SCREW

FEMALE ELBOW 90 DEGREES - 1/8 NP to 1/4 SAE

1шт.

38

51040-36

HOSE ASS'Y

1шт.

39

10856

CARBURETOR CHOKE CONTROL ASS'Y

1шт.

40

A10868

DECAL

LOCKSWITCH ASS'Y

1шт.

41

RESERVED

1шт.

42

NLS

NO LONGER SERVICED

PUSH BUTTON STARTER SWITCH ASSY (1064)

1шт.

43

48549

PLAINWASHER - brass (10864 mt'g)

3шт.

44

48081

PIPE

HEX NUT - brass (10864 mt'g)

3шт.

45

33673

BRUSH

CENTER PLATE - cowl & dash

1шт.

46

45656

X

HHCS 3/8 - 24 NF x 1 (33673 mt'g)

5шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

48

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

5шт.

49

10800

AIR CLEANER ASS'Y (Inc. ref. # 50 & 51)

1шт.

50

10810

RETAINER COLLAR

OIL CUP ASS'Y

1шт.

51

10811

STUD

RETAINING CLAMP ASS'Y - oil cup

1шт.

52

45629

X

HHCS 5/16 - 24 NF x 3/4 (10800 mt'g)

4шт.

53

48445

LOCKWASHER - med. sec.

4шт.

54

48101

X

HEX NUT - reg. S.F.

4шт.

55

R14169

HOSE

- air cleaner

2шт.

56

34398

TUBE - air cleaner

1шт.

57

214-1444

HOSE CLAMP,58.6mm - 82.5mm

HOSE CLAMP

4шт.

58

NLS

NO LONGER SERVICED

CAP - air cleaner inlet

1шт.

59

30866

WIRING HARNESS ASS'Y (Inc. ref. # 60 & 61)

1шт.

60

30863

JUMPER WIRE

1шт.

61

30864

JUMPER WIRE

2шт.

62

49876

BUMPER

CLIP - wiring (30866 mt'g)

6шт.

63

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

(30866 mt'g)

4шт.

64

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

(30866 mt'g)

2шт.

49864

X

PLUG BUTTON (Light switch hole plug - not shown)

1шт.
