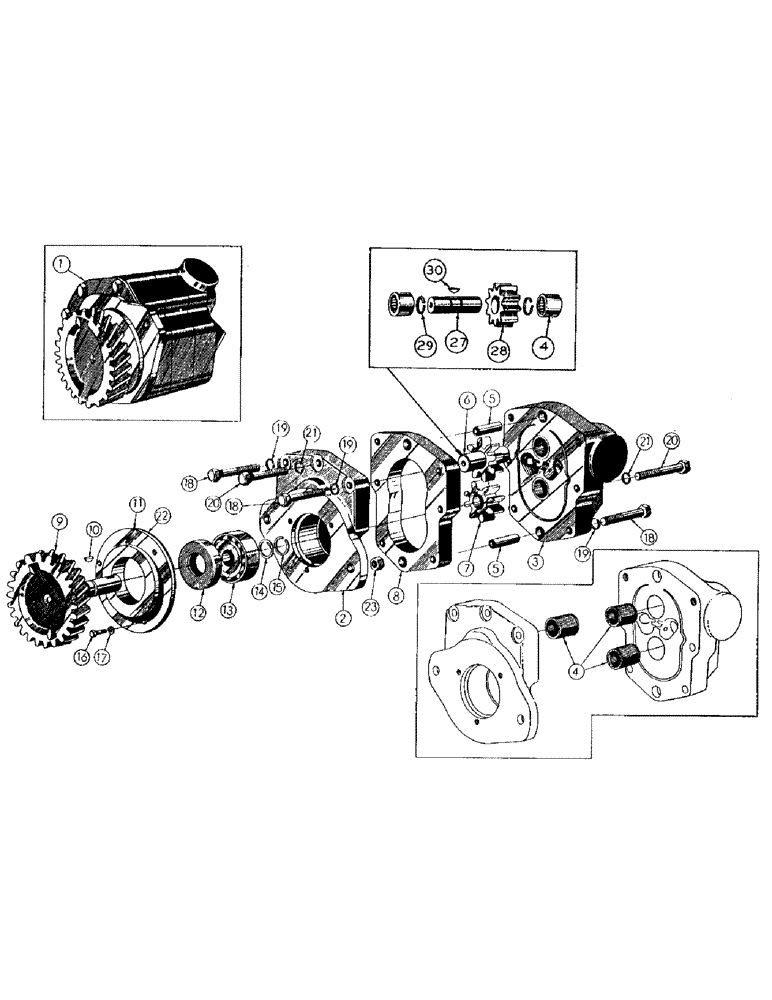

Запчасти Case 256 (114) - PARTS FOR HYDRAULIC PUMP (WEBSTER 3-HCSE1-4), USED IN PLACE OF 16860 PRIOR TO 1-20-56 (07) - HYDRAULIC SYSTEM

1

HYDRAULIC PUMP ASSY. (Use 16860)

1шт.

2

NLS

NO LONGER SERVICED

BODY ASSY. (Inc. ref. #4)

1шт.

3

14227

DECAL

PUMP COVER ASSY. (Inc. ref. #4)

1шт.

4

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

3шт.

5

NLS

NO LONGER SERVICED

DOWEL PIN

2шт.

6

14258

CABLE ASSY.

IDLER GEAR ASSY.

1шт.

7

14257

GEAR-SET

DRIVE GEAR

1шт.

8

14229

TOOL

GEAR PLATE

1шт.

9

14258

CABLE ASSY.

GEAR - shaft assy.

1шт.

10

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

11

14220

PILOT PLATE ASSY. (Inc. ref. #12-22)

1шт.

12

010983AB

OIL SEAL, replaces 33192

1шт.

13

MT2041S

BEARING

BALL BEARING

1шт.

14

14218

WASHER

WASHER

1шт.

15

14217

RING

RETAINING RING

1шт.

16

14224

HEX. HEAD SEMS FASTENER

3шт.

17

48523

SHIM,.036" Thk

LOCKWASHER - Shakeproof - internal

3шт.

18

14202

HHCS 5/16 - 18NC x 1-3/4 Hex, 1/2"-13 x 3 1/4", G5

6шт.

19

14203

SCREW

LOCKWASHER

6шт.

20

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

21

92-4

LOCK WASHER,1/4"

2шт.

22

14221

GASKET

1шт.

23

25-106

NUT,3/8"-16, G5

HEX. NUT - reg. S.F. (16860 mtg.)

1шт.

24

34451

SHAFT - idler

1шт.

25

34453

HEATER PLUG

GEAR - idler

1шт.

26

14217

RING

RETAINING RING

2шт.

27

34455

HOOK

WOODRUFF KEY

1шт.
