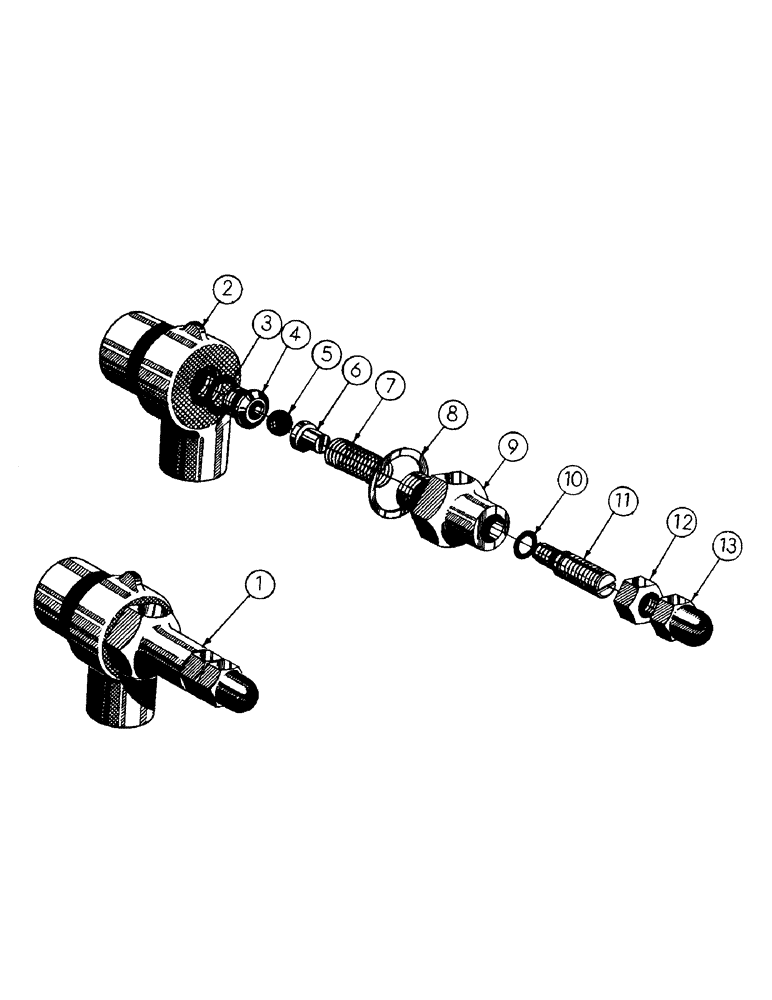

Запчасти Case 256 (108) - RELIEF VALVE INSTALLATION (07) - HYDRAULIC SYSTEM

1

RELIEF VALVE ASS'Y. (Inc. ref. # 2 thru 13) (Group no. 33959)

1шт.

3

34118

X

"O" RING SEAL

1шт.

4

34119

SEAT, VALVE

VALVE SEAT

1шт.

5

07210AB

BALL - relief valve

1шт.

6

CAS34120

BUSHING

SPACER - spring

1шт.

7

34114

VALVE, PRESSURE RELI

SPRING

1шт.

8

34115

GASKET

- body cap

1шт.

9

34113

BODY

HEX BODY CAP

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O" RING SEAL

1шт.

11

34110

ADJUSTMENT SCREW

ADJUSTING SEAL

1шт.

12

34111

X

HEX JAM NUT

1шт.

13

34109

ACORN NUT

1шт.
