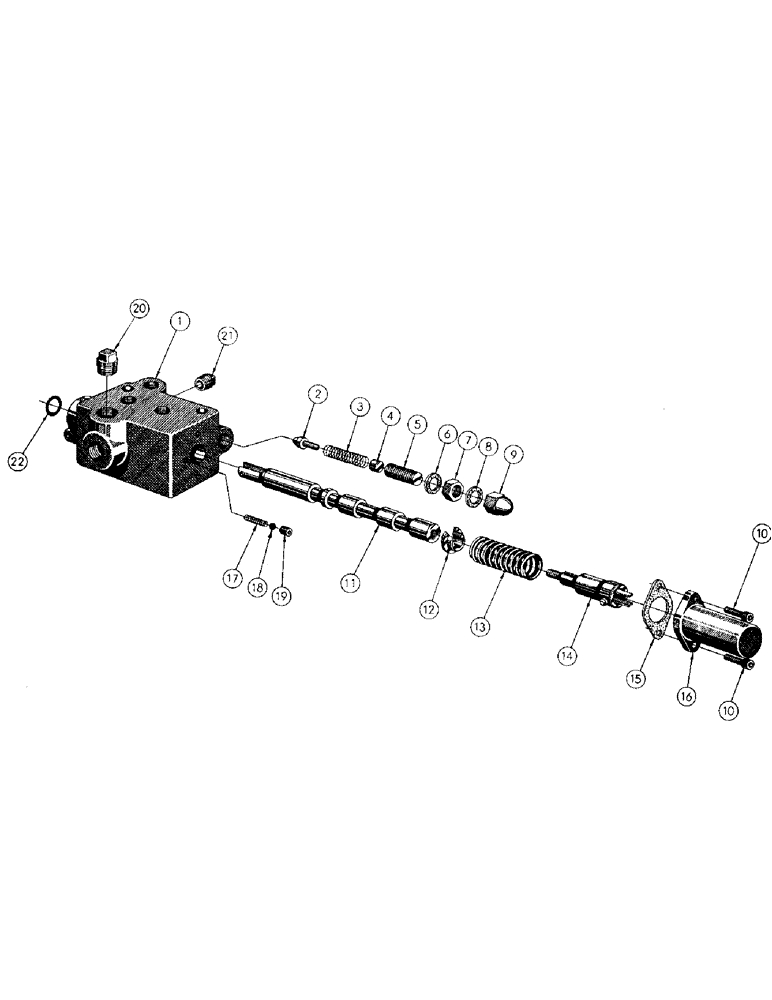

Запчасти Case 256 (106) - HYDRAULIC VALVE INSTALLATION (07) - HYDRAULIC SYSTEM

HYDRAULIC VALVE ASS'Y. (Inc. ref. # 1 thru 22) (Group no. 16130)

1шт.

1

16201

HOSE

1/2 UNIT VALVE HOUSING

1шт.

2

16227

HOSE

POPPET - relief valve

1шт.

3

16404

SPRING CUP

SPRING - relief valve

1шт.

4

16217

BUSHING

SLUG

1шт.

5

NLS

NO LONGER SERVICED

ADJUSTING SCREW - relief valve

1шт.

6

16219

GASKET

- relief valve

1шт.

7

48195

CUTTING EDGE

HEX JAM NUT (9/16 - 18 NF)

1шт.

8

16219

GASKET

- relief valve

1шт.

9

48355

CAP NUT (9/16 - 18 NF)

1шт.

10

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FILLISTER HEAD CAP SCREW 5/16 - 18 NC x 3/4

2шт.

11

16203

HOSE

SPOOL - float

1шт.

12

16205

SPRING RETAINER

1шт.

13

16204

VALVE

SPRING

1шт.

14

16206

SPRING GUIDE ASS'Y.

1шт.

15

16211

HOSE

GASKET - valve cap

1шт.

16

16210

HOSE

VALVE CAP

1шт.

17

16212

HOSE

SPRING - check valve

1шт.

18

08635AB

BALL - check valve

1шт.

19

16214

HOSE

SEAT - check valve

1шт.

20

41824

ROLLER

PIPE PLUG - ext. square head - 3/4 NP

1шт.

21

41823

PIPE PLUG - ext. square head - 1/2 NP

1шт.

22

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING SEAL

1шт.

41871

X

PIPE PLUG - Allen socket head - 1/2 NP (Not shown)

1шт.
