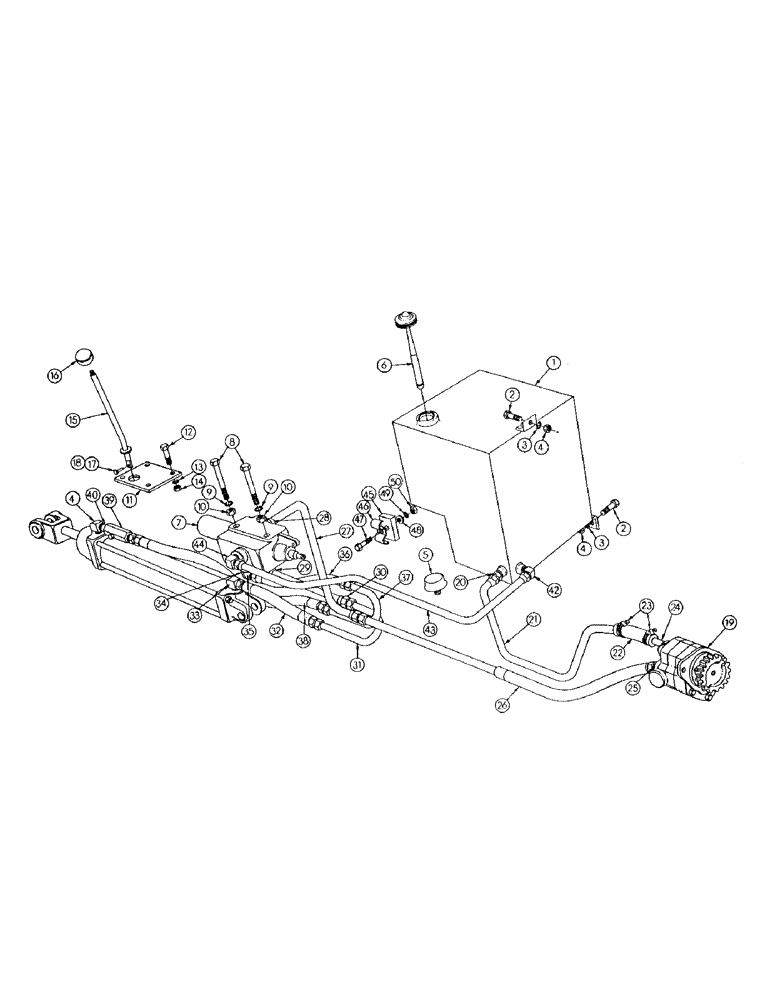

Запчасти Case 256 (102) - THREE POINT HYDRAULIC INSTALLATION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
13647
HYDRAULIC TANK ASS'Y
1шт.
2
45656
X
HHCS 3/8 - 24 NF x 1 (13647 mt'g)
2шт.
3
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
4
48102
MOUNTING PARTS
HEX NUT - reg. SF
2шт.
5
MT2801S
BREATHER FILTER, replaces 31543
1шт.
6
35074
CAP & GAUGE STICK ASS'Y
1шт.
7
16130
TUBE
HYDRAULIC VALVE ASS'Y (See Figure 106)
1шт.
8
45719
HHCS 1/2 - 20 NF x 4-1/2 (16130 mt'g)
2шт.
9
48448
X
LOCKWASHER - med. sec.
2шт.
10
48104
PISTON
HEX NUT - reg. SF
2шт.
11
16694
GUIDE PLATE
1шт.
12
45657
HHCS 3/8 - 24 NF x 1-1/4 (16694 mt'g)
4шт.
13
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
14
48102
MOUNTING PARTS
HEX NUT - reg. SF
4шт.
15
16675
GUSSET
LEVER - valve control
1шт.
16
CAS31375
KNOB
BALL GRIP
1шт.
17
VT2105
X
YOKE PIN - SAE standard
1шт.
18
48672
X
COTTER PIN - 1/16 dia x 1/2
1шт.
19
16860
FLEXIBLE HOSE
PUMP ASS'Y (See Figure 112)
1шт.
20
218-448
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
MALE CONNECTOR 1 NP TO 1 JIC
1шт.
21
18940
TUBE ASS'Y -, Serial Range: tank-hose
1шт.
22
32798
HOSE
- low pressure
1шт.
23
49766
AUGER
HOSE CLAMP
2шт.
24
18987
TUBE ASS'Y -, Serial Range: hose-pump
1шт.
25
50146
NUT
MALE ELBOW 45 DEGREES - 3/4 NP to 3/4 JIC
1шт.
26
19223
X
HOSE & TUBE ASS'Y -, Serial Range: pump-valve
1шт.
27
18943
TUBE ASS'Y -, Serial Range: valve-pump
1шт.
28
50027
X
MALE CONNECTOR - 3/4 JIC to 1/2 NP
1шт.
29
50114
X
MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC
1шт.
30
18948
KNOB
TUBE ASS'Y -, Serial Range: valve-cylinder
1шт.
31
34407
TUBE ASS'Y -, Serial Range: valve-cylinder
1шт.
32
19262
HOSE ASS'Y -, Serial Range: valve-cylinder
1шт.
33
50114
X
MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC
1шт.
34
41673
STREET ELBOW 90 DEGREES - 1/2 NP Rd Hd, M8 x 60
1шт.
35
50144
MALE ELBOW 45 DEGREES - 1/2 NP to 5/8 JIC
1шт.
36
34402
TUBE ASS'Y -, Serial Range: valve-cylinder
1шт.
37
34407
TUBE ASS'Y -, Serial Range: valve-cylinder
1шт.
38
35700
PIN
HOSE ASS'Y -, Serial Range: valve-cylinder
1шт.
39
60374
VALVE
FLOW CONTROL VALVE ASS'Y
1шт.
40
221-187
PIPE,Nipple, 1/2" NPT x 1 1/2"
PIPE NIPPLE - 1/2 NP x 1-1/2
1шт.
41
41673
STREET ELBOW 90 DEGREES - 1/2 NP Rd Hd, M8 x 60
1шт.
42
50116
X
MALE ELBOW 90 DEGREES - 3/4 NP to 3/4 JIC
1шт.
43
18944
TUBE ASS'Y -, Serial Range: valve-tank
1шт.
44
50116
X
MALE ELBOW 90 DEGREES - 3/4 NP to 3/4 JIC
1шт.
45
34406
SPACER
1шт.
46
32978
PLATE ASSY.
TUBE CLAMP
1шт.
47
45635
BEARING ASSY
HHCS 5/16 - 24 NF x 2 (32978 & 34406 mt'g)
1шт.
48
48405
X
PLAINWASHER
1шт.
49
48445
LOCKWASHER - med. sec.
1шт.
50
48101
X
HEX NUT - reg. SF
1шт.
Выбрано товаров: 50
