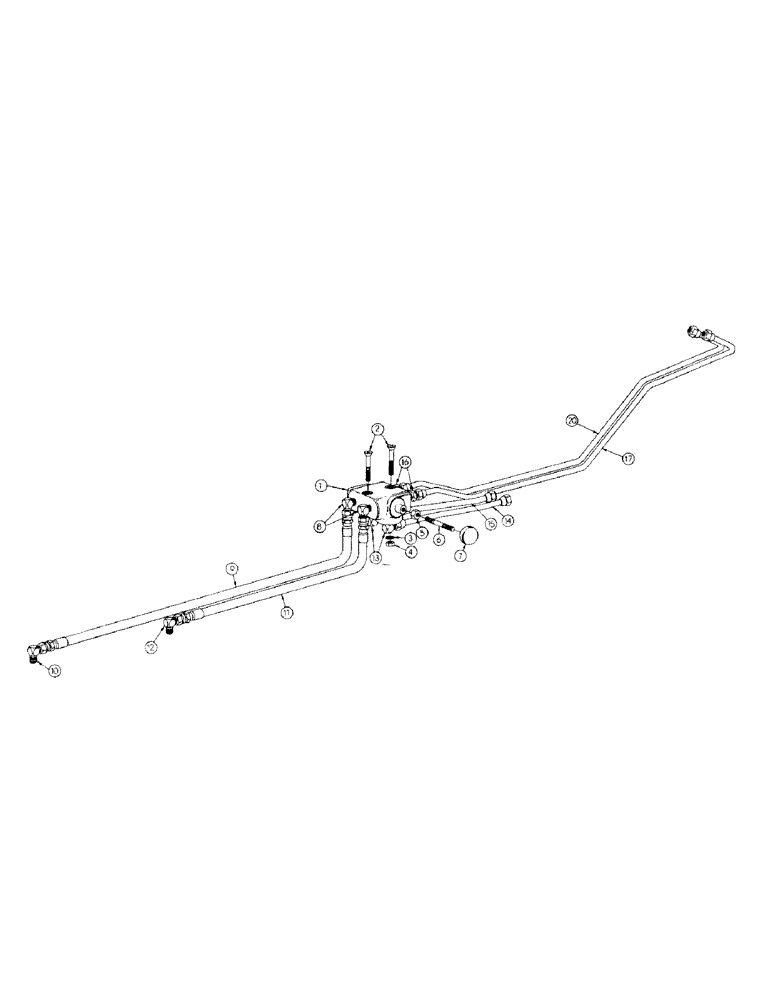

Запчасти Case 256 (096) - SCARIFIER HYDRAULICS (WHEN USED WITH LOADER) (07) - HYDRAULIC SYSTEM

1

16628

SEAL

DIVERSION VALVE

1шт.

2

46941

SPOUT

MACHINE SCREW - cts'k. 3/8 - 24 NF x 3-1/2 (16628 mt'g.)

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

48102

MOUNTING PARTS

HEX NUT - reg. SF (3/8 - 24 NF)

2шт.

5

47801

BALL BEARING

HEX NUT - reg. SF (5/16 - 18 NC)

1шт.

6

18574

STUD

1шт.

7

CAS31375

KNOB

BALL GRIP

1шт.

8

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

2шт.

9

19178

HOSE

ASS'Y - diversion, Serial Range: valve-cylinder

1шт.

10

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

1шт.

11

19209

HOSE ASSY.

HOSE ASS'Y - diversion, Serial Range: valve-cylinder

1шт.

12

35310

FLOW RESTRICTOR ASS'Y

1шт.

13

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

2шт.

14

19195

SHAFT

TUBE ASS'Y - diversion valve to control valve

1шт.

15

19196

SHAFT

TUBE ASS'Y - diversion valve to control valve

1шт.

16

50041

SPARE PARTS CAT

MALE CONNECTOR - 5/8 JIC to 1/2 NP

2шт.

17

19229

TUBE ASS'Y - diversion, Serial Range: valve-manifold

1шт.

18

19230

TUBE ASS'Y - diversion, Serial Range: valve-manifold

1шт.
