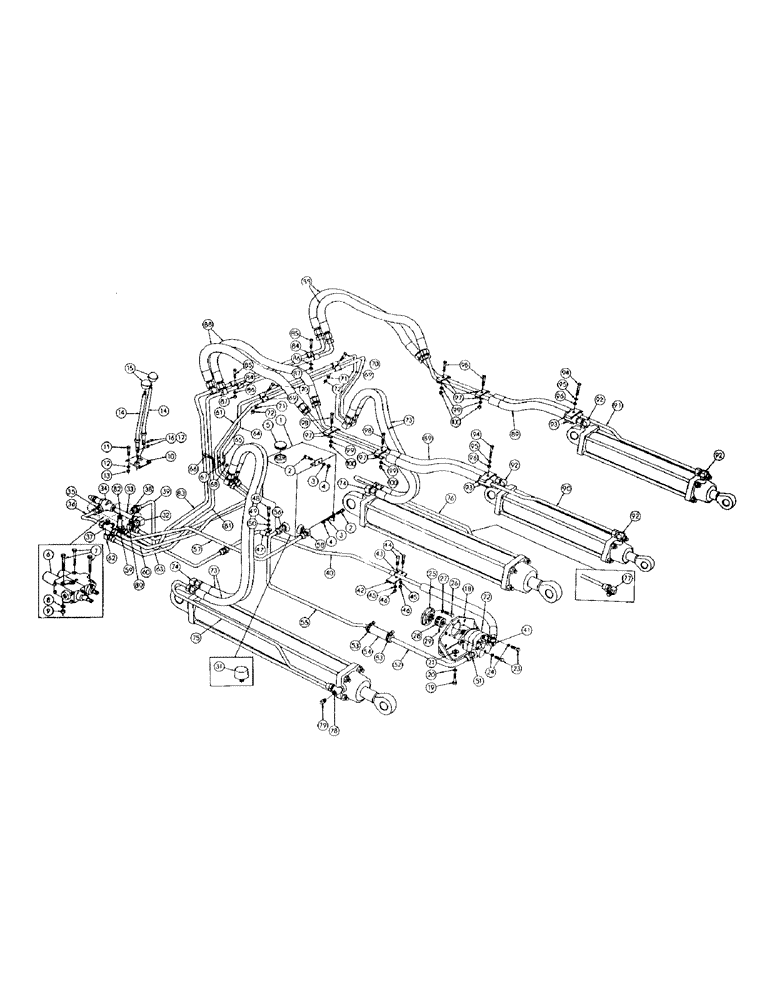

Запчасти Case 256 (072) - TERRALOADR HYDRAULIC INST. (07) - HYDRAULIC SYSTEM

1

13647

HYDRAULIC TANK ASS'Y

1шт.

2

45656

X

HHCS 3/8 - 24 NF x 1 (13647 mt'g)

2шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

4

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

2шт.

5

35074

FILLER CAP & GAUGE STICK ASS'Y

1шт.

6

16400

HYDRAULC VALVE ASS'Y (See Figure 104)

1шт.

7

45719

HHCS 1/2 - 20 NF x 4-1/2 (16400 mt'g)

3шт.

8

48448

X

LOCKWASHER - med. sec.

3шт.

9

48104

PISTON

HEX NUT - reg. S.F.

3шт.

10

16678

GUIDE PLATE - valve lever

1шт.

11

45656

X

HHCS 3/8 - 24 NF x 1 (16678 mt'g)

4шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

13

48102

MOUNTING PARTS

HEX NUT - reg. S.F.

4шт.

14

16675

GUSSET

LEVER - valve control

2шт.

15

CAS31375

KNOB

BALL GRIP

2шт.

16

VT2105

X

YOKE PIN - S.A.E. standard

2шт.

17

48672

X

COTTER PIN - 1/16 dia. x 1/2

2шт.

18

30640

PUMP BRACKET ASS'Y

1шт.

19

45158

X

HHCS 5/8 - 11 NC x 1-1/2 (30640 mt'g)

2шт.

20

492-11062

BEARING WASHER,5/8"

LOCKWASHER - med. sec.

2шт.

21

NLS

NO LONGER SERVICED

SHIM - engine mt'g

1шт.

22

31615

CAP

HYDRAULIC PUMP ASS'Y (See Figure 110)

1шт.

23

45056

X

HHCS 3/8 - 16 NC x 1" (31615 mt'g)

2шт.

24

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

25

10493

COUPLING FLANGE

FEMALE COUPLING - hyd. pump

1шт.

26

45029

X

HHCS 5/16 - 18 NC x 3/4 (10493 mt'g)

4шт.

27

48445

LOCKWASHER - med. sec.

4шт.

28

30480

X

MALE COUPLING - hyd. pump

1шт.

29

47306

GUARD

ALLEN HD. SET SCREW 5/16 - 18 NC x 1/2 (30480 mt'g)

1шт.

31

MT2801S

BREATHER FILTER, replaces 31543

1шт.

32

34266

NUT

FEMALE ELBOW 90 DEGREES

1шт.

33

41470

DECAL

PIPE NIPPLE - 1/2 NP x 6

1шт.

34

NLS

NO LONGER SERVICED

PRESSURE RELIEF VALVE ASS'Y (See Figure 108)

1шт.

35

50027

X

MALE CONNECTOR - 3/4 JIC to 1/2 NP

1шт.

36

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

TUBE ASS'Y - control valve to relief valve

1шт.

37

50257

X

PIPE TEE 3/4 x 3/4 x 3/4

1шт.

38

50027

X

MALE CONNECTOR - 3/4 JIC to 1/2 NP

1шт.

39

18939

TUBE ASS'Y -, Serial Range: valve-19231

1шт.

40

19231

X

HOSE & TUBE ASS'Y -, Serial Range: 18939-pump

1шт.

41

50146

NUT

MALE ELBOW 45 DEGREES - 3/4 JIC to 3/4 NP

1шт.

42

34259

SHIM,.007" Thk

PLATE - tube support (19231 mt'g)

1шт.

43

49789

CLAMP

- tube (19231 mt'g)

1шт.

44

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (49789 & 34259 mt'g)

2шт.

45

48445

LOCKWASHER - med. sec.

2шт.

46

48101

X

HEX NUT - reg. S.F.

2шт.

47

49855

CLAMP

TUBE CLAMP (19231 mt'g)

1шт.

48

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (49855 mt'g)

1шт.

49

48445

LOCKWASHER - med. sec.

1шт.

50

48101

X

HEX NUT - reg. S.F.

1шт.

51

50030

X

MALE CONNECTOR - 1" JIC to 3/4 NP

1шт.

52

18969

BACK-UP RING

TUBE ASS'Y -, Serial Range: pump-32798

1шт.

53

49763

X

HOSE CLAMP

2шт.

54

32798

HOSE

- low pressure

1шт.

55

18955

TUBE ASS'Y - 32798 to hyd. tank

1шт.

56

50029

NUT,Flg, USR, 5/8"-12

MALE CONNECTOR - 1" JIC to 1" NP

1шт.

57

19194

SHAFT

TUBE ASS'Y -, Serial Range: valve-tank

1шт.

58

50116

X

MALE ELBOW 90 DEGREES - 3/4 JIC to 3/4 NP

1шт.

59

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

1шт.

60

19227

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

61

19226

TUBE ASS'Y - manifold

1шт.

62

50571

BRACKET

EXTRA LONG MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

1шт.

63

19228

TUBE ASS'Y -, Serial Range: valve-manifold

1шт.

64

19225

TUBE ASS'Y - manifold

1шт.

65

32978

PLATE ASSY.

CLAMP PLATE (19225 & 19226 mt'g)

1шт.

66

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (32978 mt'g)

1шт.

67

48445

LOCKWASHER - med. sec.

1шт.

68

48101

X

HEX NUT - reg. S.F.

1шт.

69

17179

TUBE CLAMP (19225 & 19226 mt'g)

2шт.

70

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (17179 mt'g)

2шт.

71

48445

LOCKWASHER - med. sec.

2шт.

72

48101

X

HEX NUT - reg. S.F.

2шт.

73

19178

HOSE

ASS'Y - manifold to lift cylinders

4шт.

74

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

2шт.

75

19219

TUBE ASS'Y - to front port lift cyl. - RH

1шт.

76

19220

TUBE ASS'Y - to front port lift cyl. - LH

1шт.

77

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

1шт.

78

33888

SPECIAL PIPE TEE 90 DEGREES

1шт.

79

41820

PIPE PLUG - ext. sq. head - 1/8 NP

1шт.

80

34264

LATERAL ELBOW 90 DEGREES - 5/8 JIC & 1/2 NP

1шт.

81

19201

TUBE ASS'Y - dump cyl. manifold

1шт.

82

50571

BRACKET

EXTRA LONG MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

1шт.

83

19202

TUBE ASS'Y - dump cyl. manifold

1шт.

84

17179

TUBE CLAMP (19201 & 19202 mt'g)

2шт.

85

582816R11

COLLAR

HHCS 5/16 - 24 NF x 1 (17179 mt'g)

2шт.

86

48445

LOCKWASHER - med. sec.

2шт.

87

48101

X

HEX NUT - reg. S.F.

2шт.

88

19207

HOSE ASSY.

HOSE ASS'Y - manifold to dump cyl.

4шт.

89

NLS

NO LONGER SERVICED

HOSE & TUBE ASS'Y. - manifold to dump cyl's.

2шт.

90

34479

HOSE & TUBE ASS'Y. - to dump cyl. RH

1шт.

91

NLS

NO LONGER SERVICED

HOSE & TUBE ASS'Y. - to dump cyl. LH

1шт.

92

50114

X

MALE ELBOW 90 DEGREES - 5/8 JIC to 1/2 NP

4шт.

93

31665

COLLAR CLAMP

CLAMP PLATE (34389, 34479, & 34480 mt'g)

4шт.

94

45634

PRESSURE PIPE

HHCS 5/16 - 24 NF x 1-3/4 (31665 mt'g)

2шт.

95

48445

LOCKWASHER - med. sec.

2шт.

96

48101

X

HEX. NUT - reg. S.F.

2шт.

97

32978

PLATE ASSY.

CLAMP PLATE (34389, 34479, & 34480 mt'g)

8шт.

98

45633

HHCS 5/16 - 24 NF x 1-1/2 (32978 mt'g)

4шт.

99

48445

LOCKWASHER - med. sec.

4шт.

100

48101

X

HEX. NUT - reg. S.F.

4шт.

T14011

ELEMENT

- for MT2801S breather, filter

1шт.
