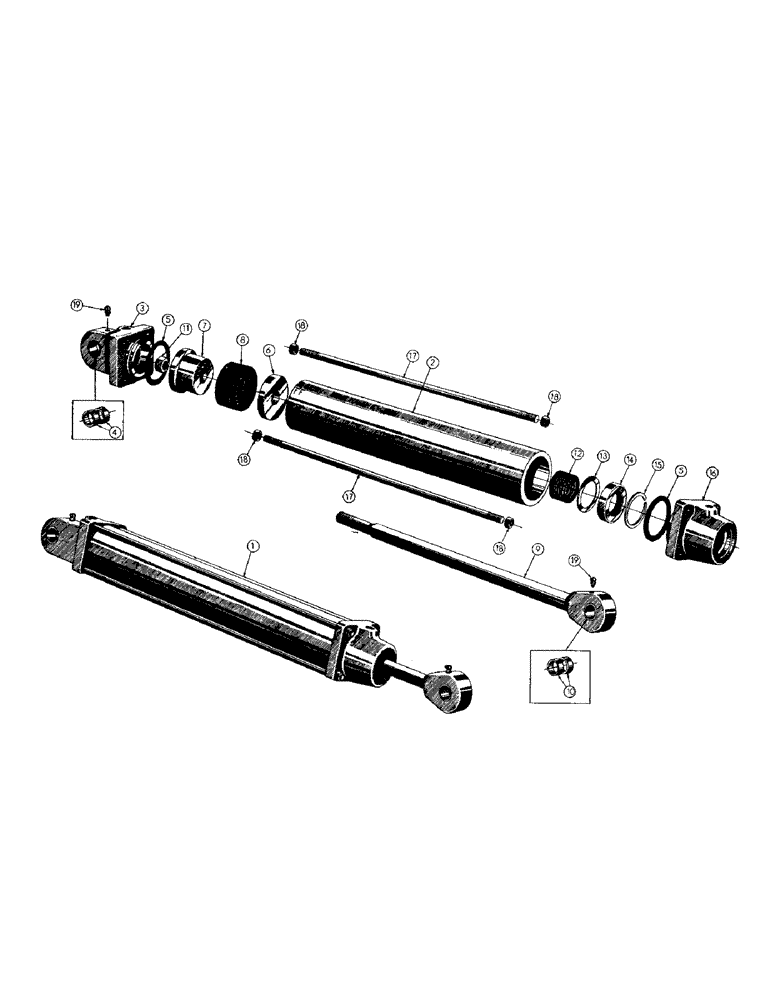

Запчасти Case 256 (071) - DUMP CYLINDER INSTALLATION (07) - HYDRAULIC SYSTEM

1

HYDRAULIC CYLINDER ASS'Y. (Inc. ref. # 2 thru 19) (Group no. 34128)

2шт.

2

33771

TUBE - hydraulic cylinder

1шт.

3

36225

CYLINDER END ASS'Y (Inc. ref. # 4)

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

5

86982912

O-RING

"O" RING SEAL

2шт.

6

30630

CARTRIDGE

RETAINING WASHER

1шт.

7

30631

X

RETAINING SPACER

1шт.

8

17598

PACKING

PISTON PACKING

1шт.

9

34409

END YOKE & PISTON ROD ASS'Y. (Inc. ref. # 10)

1шт.

10

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

11

48070

O-RING

LOCKNUT (3/4 - 16 NF)

1шт.

12

17597

PACKING

ROD PACKING

1шт.

13

36259

WASHER

PACKING WASHER

1шт.

14

17603

WIPER SEAL

WIPER SEAL

1шт.

15

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

16

30628

END CAP

1шт.

17

33769

TIE ROD

4шт.

18

17606

X

LOCKNUT (3/8 - 24 NF)

8шт.

19

49217

X

GREASE FITTING - 90 degrees - 1/8 NP

2шт.
