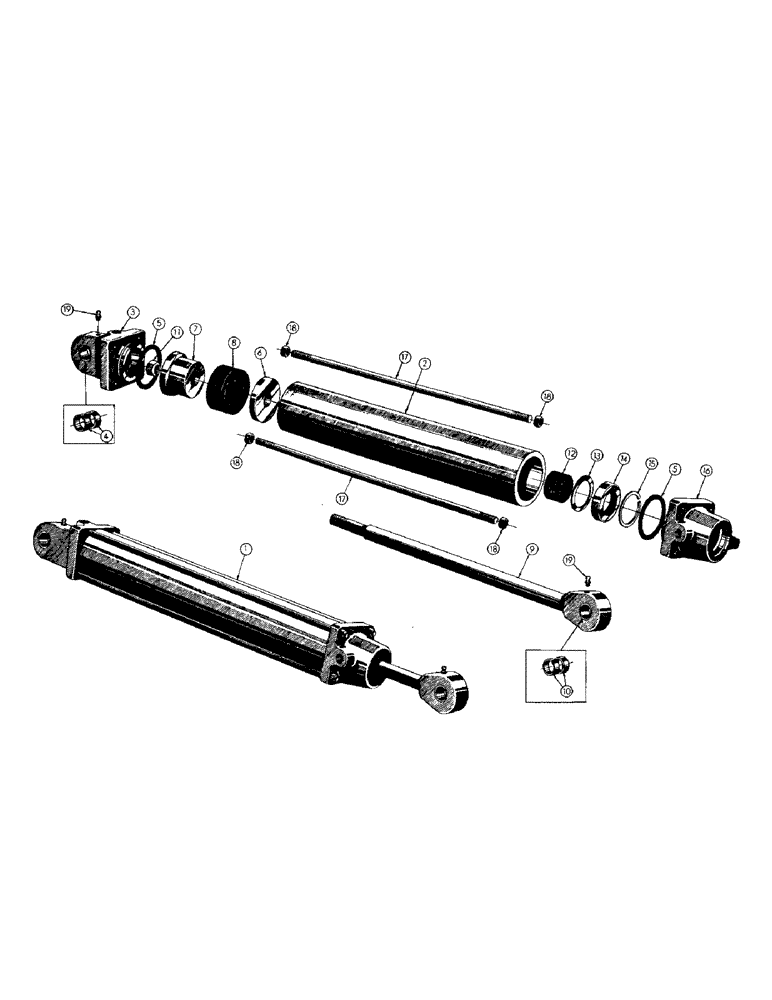

Запчасти Case 256 (070) - LIFT CYLINDER INSTALLATION (07) - HYDRAULIC SYSTEM

1

HYDRAULIC CYLINDER ASS'Y. - RH (Inc. ref. # 2 thru 19) (Group no. 31608)

1шт.

HYDRAULIC CYLINDER ASS'Y. - LH (Inc. ref. # 2 thru 19) (Group no. 31609)

1шт.

2

30570

DRAWBAR

TUBE - hydraulic cylinder

1шт.

3

36226

CYLINDER END ASS'Y. (Inc. ref. # 4)

1шт.

4

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING SEAL

2шт.

6

NLS

NO LONGER SERVICED

RETAINER WASHER

1шт.

7

30571

RETAINER SPACER

1шт.

8

17578

PACKING

PISTON PACKING

1шт.

9

36229

END YOKE & PISTON ROD ASS'Y (Inc. ref. # 10)

1шт.

10

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

11

48378

X

ELASTIC STOP NUT (1 - 14 NF)

1шт.

12

30568

PACKING

ROD PACKING

1шт.

13

70741

X

PACKING WASHER

1шт.

14

30574

WIPER SEAL

WIPER SEAL

1шт.

15

70742

WASHER

2.50", Int, #250

1шт.

16

30567

FLANGE

END CAP

1шт.

17

30569

ROD

TIE ROD

4шт.

18

17586

LOCKNUT (1/2 - 20 NF)

8шт.

19

49200

X

GREASE FITTING - straight - 1/8 NP

2шт.
