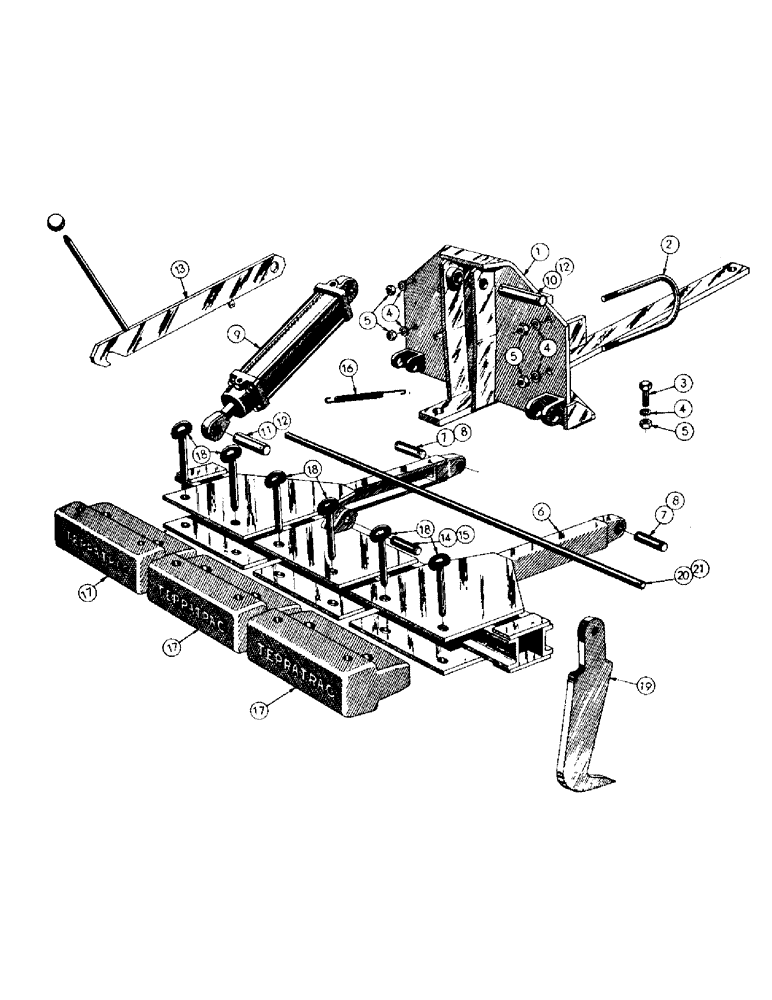

Запчасти Case 256 (094) - SCARIFIER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

31716

BACK PLATE ASS'Y

1шт.

2

31696

BOLT

"U" BOLT (31716 mt'g)

2шт.

3

45758

SPACER

HHCS 5/8 - 18 NF x 1-1/2 (31716 mt'g)

2шт.

4

48450

FRONT AXLE

LOCKWASHER - med. sec.

6шт.

5

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

HEX NUT - reg. SF

6шт.

6

31734

PRESSURE PIPE

SCARIFIER FRAME ASS'Y

1шт.

7

31715

PIN

(31734 mt'g)

2шт.

8

48738

X

COTTER PIN 1/4 DIA x 1-3/4

4шт.

9

30624

RING

HYDRAULIC CYLINDER ASS'Y (See Figure 95)

1шт.

10

34354

PIN (30624 & 34358 mt'g)

1шт.

11

31715

PIN

(30624 mt'g)

1шт.

12

48738

X

COTTER PIN 1/4 DIA x 1-3/4

4шт.

13

34358

SCARIFIER LOCK ASS'Y

1шт.

14

34353

PIN - scarifier lock mt'g

1шт.

15

48737

ELEMENT

COTTER PIN 1/4 DIA x 1-1/2

2шт.

16

11469

SPRING

1шт.

17

30463

SCARIFIER WEIGHT

3шт.

18

CAS19055

PIN ASSY.

PIN ASS'Y (30463 MT'G)

6шт.

19

31752

LINE

SCARIFIER TOOTH

4шт.

20

31777

HOLDING ROD

1шт.

21

48736

COTTER PIN 1/4 DIA x 1-1/4

2шт.
