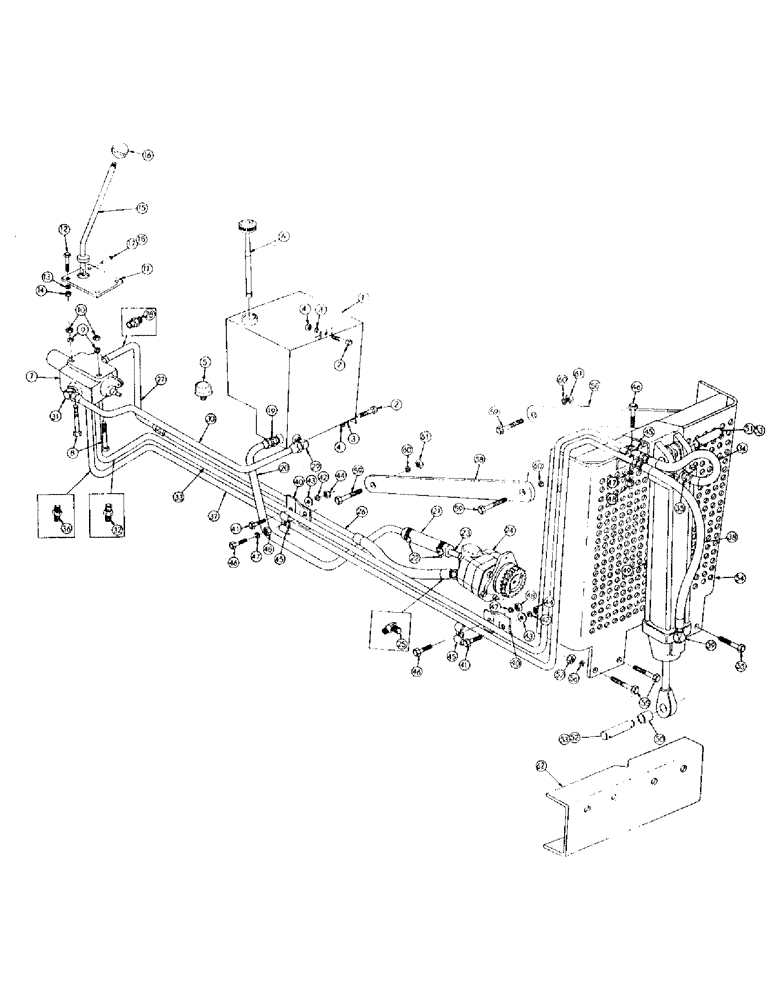

Запчасти Case 256 (090) - SNOW DOZER HYDRAULIC INSTALLATION (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
13647
HYDRAULIC TANK ASS'Y
1шт.
2
45656
X
HHCS 3/8 - 24 NF x 1 (13647 mt'g)
2шт.
3
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
4
48102
MOUNTING PARTS
HEX NUT - reg. SF
2шт.
5
MT2801S
BREATHER FILLER, Replaces 31543
1шт.
6
35074
CAP & GAUGE STICK ASS'Y
1шт.
7
16130
TUBE
HYDRAULIC VALVE ASS'Y (See Figure 106)
1шт.
8
45719
HHCS 1/2 - 20 NF x 4-1/2 (16130 mt'g)
2шт.
9
48448
X
LOCKWASHER - med. sec.
2шт.
10
48104
PISTON
HEX NUT - reg. SF
2шт.
11
16694
GUIDE PLATE - valve lever
1шт.
12
45657
HHCS 3/8 - 24 NF x 1-1/4 (16694 mt'g)
4шт.
13
80680
LOCK WASHER,3/8 0.381 CST ZND
4шт.
14
48102
MOUNTING PARTS
HEX NUT - reg. SF
4шт.
15
16675
GUSSET
VALVE CONTROL LEVER ASS'Y
1шт.
16
31375
WASHER
BALL - grip
1шт.
17
VT2105
X
YOKE PIN - SAE standard
1шт.
18
48672
X
COTTER PIN 1/16 DIA x 1/2
1шт.
19
50029
NUT,Flg, USR, 5/8"-12
MALE CONNECTOR - 1 NP to 1 JIC
1шт.
20
18940
TUBE ASS'Y -, Serial Range: tank-hose
1шт.
21
32798
HOSE
- low pressure
1шт.
22
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
HOSE CLAMP
2шт.
23
18987
TUBE ASS'Y -, Serial Range: hose-pump
1шт.
24
16860
FLEXIBLE HOSE
PUMP ASS'Y (See Figure 112)
1шт.
25
50146
NUT
MALE ELBOW 45 DEGREES - 3/4 NP to 3/4 JIC
1шт.
26
19223
X
TUBE & HOSE ASS'Y -, Serial Range: pump-18943
1шт.
27
18943
TUBE ASS'Y -, Serial Range: 19223-valve
1шт.
28
50027
X
MALE CONNECTOR - 1/2 NP to 3/4 JIC
1шт.
29
50116
X
MALE ELBOW 90 DEGREES - 3/4 Np to 3/4 JIC
1шт.
30
18944
TUBE ASS'Y -, Serial Range: valve-tank
1шт.
31
50116
X
MALE ELBOW 90 DEGREES - 3/4 NP to 3/4 JIC
1шт.
32
50024
MALE CONNECTOR - 1/2 NP to 5/8 JIC
1шт.
33
34476
TUBE ASS'Y -, Serial Range: valve-hose
1шт.
34
19207
HOSE ASSY.
HOSE ASS'Y - 34476 to cylinder - rear port
1шт.
35
50041
SPARE PARTS CAT
MALE CONNECTOR - 1/2 NP to 5/8 JIC
1шт.
36
50024
MALE CONNECTOR - 1/2 NP to 5/8 JIC
1шт.
37
34477
TUBE ASS'Y -, Serial Range: valve-hose
1шт.
38
19178
HOSE
ASS'Y - 34477 to cylinder - front port
1шт.
39
50114
X
MALE ELBOW 90 DEGREES - 1/2 NP to 5/8 JIC
1шт.
40
18575
CLAMP BRACKET
2шт.
41
45656
X
HHCS 3/8 - 24 NF x 1 (18575 mt'g)
2шт.
42
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
43
48406
X
PLAINWASHER
2шт.
44
48102
MOUNTING PARTS
HEX NUT - reg. SF
2шт.
45
17179
TUBE CLAMP
3шт.
46
45629
X
HHCS 5/16 - 24 NF x 3/4 (17179 mt'g)
3шт.
47
48445
LOCKWASHER - med. sec.
3шт.
48
48101
X
HEX NUT - reg. SF
3шт.
49
17751
HYDRAULIC CYLINDER ASS'Y (See Figure 93)
1шт.
50
17631
BUSHING
1шт.
51
16726
PIN (17751 mt'g)
1шт.
52
18743
PIN (17751 mt'g)
1шт.
53
48739
X
COTTER PIN - 1/4 dia x 2
4шт.
54
17637
RADIATOR GUARD ASS'Y
1шт.
55
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2 - 20 NF x 1-1/4 (17637 mt'g)
4шт.
56
48448
X
LOCKWASHER - med. sec.
4шт.
57
48104
PISTON
HEX NUT - reg. SF
4шт.
58
30995
BRACE - radiator guard
2шт.
59
45758
SPACER
HHCS 5/8 - 18 NF x 1-1/2 (30995 mt'g)
4шт.
60
492-11062
BEARING WASHER,5/8"
LOCKWASHER - med. sec.
4шт.
61
48106
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
HEX NUT - reg. SF
4шт.
62
31769
SPACER
FRONT BUMPER
1шт.
